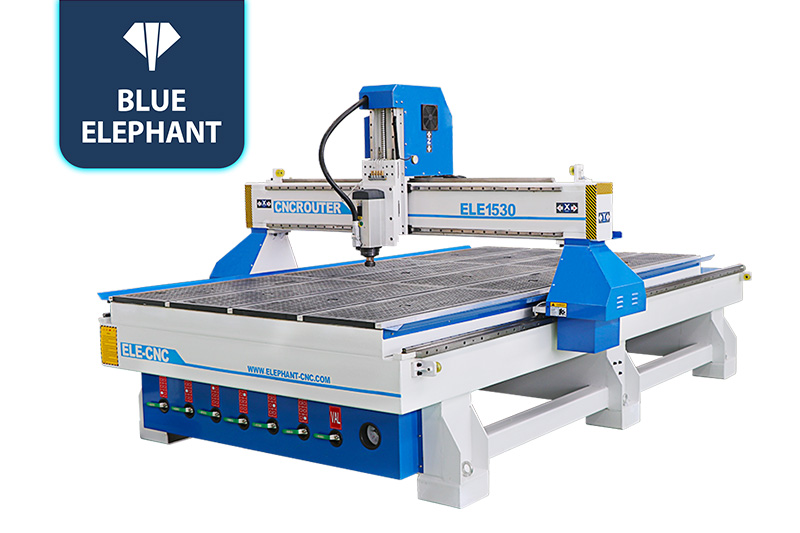

5’×10′ Wooden 3-Axis CNC Machine for Sale in Portugal, Andorra, Vatican

☆This is a classical and economical 3 axis cnc router machine for cabinet door making. It has the advantages of low cost, fitful working area, high-quality cnc parts, etc.

CNC Router Machines Video

features

  • 5x10ft worktable is big enough for most of polywood or MDF boards.
  • It can fix the workpieces more firmly, saves time, and improves production efficiency.
  • Equipped with an Italy HSD spindle, it ensures the CNC wood router have a high speed and efficiency.

Parameters

Model ELECNC1530
X,Y axis travel 1500*3000*200mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, etc.
Spindle type 6kw HSD air cooling spindle, ER32
Inverter type 7.5kw DETLA inverter
Tool holder with collet ER32 collet: φ4, φ6, 1/8, 1/2
Control system DSP A11 Control system
Driving system FL118 stepper motor and Leadshine 860H driver
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot&vacuum work table
Linear guide Taiwan 25# Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw

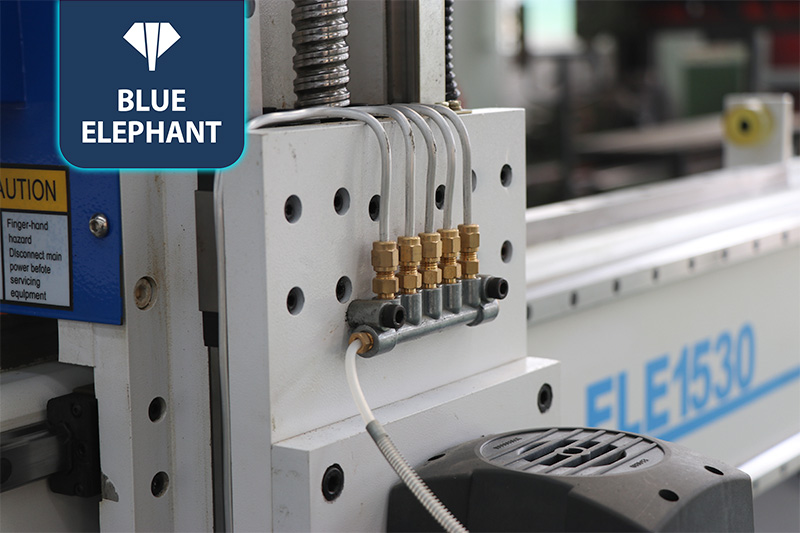

Lubrication system Automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software ARTCAM and Aspire
Command language G Code
Traveling speed 70-80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard.
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA.
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones.
Soft metal: aluminum, brass, copper, mild steel.
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite.

Production Facility

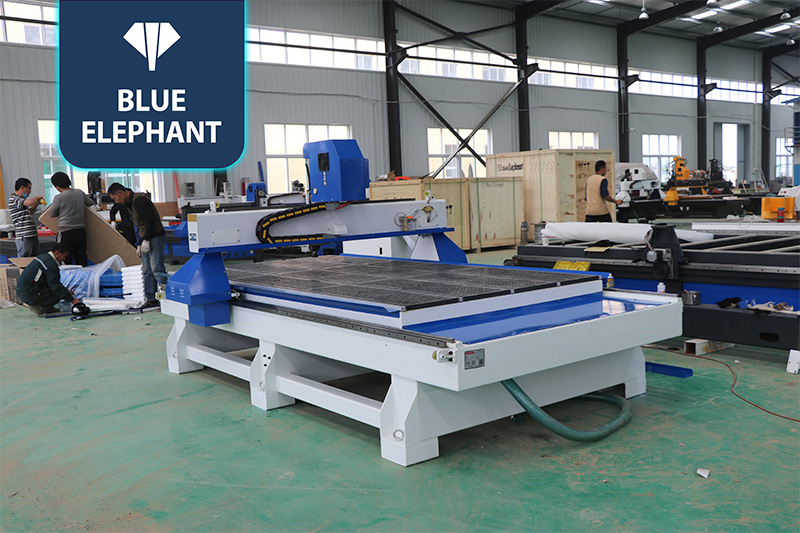

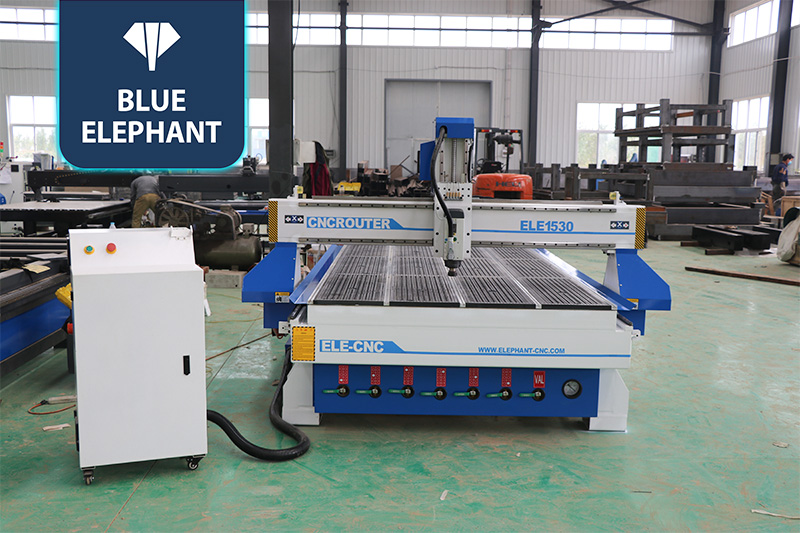

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
