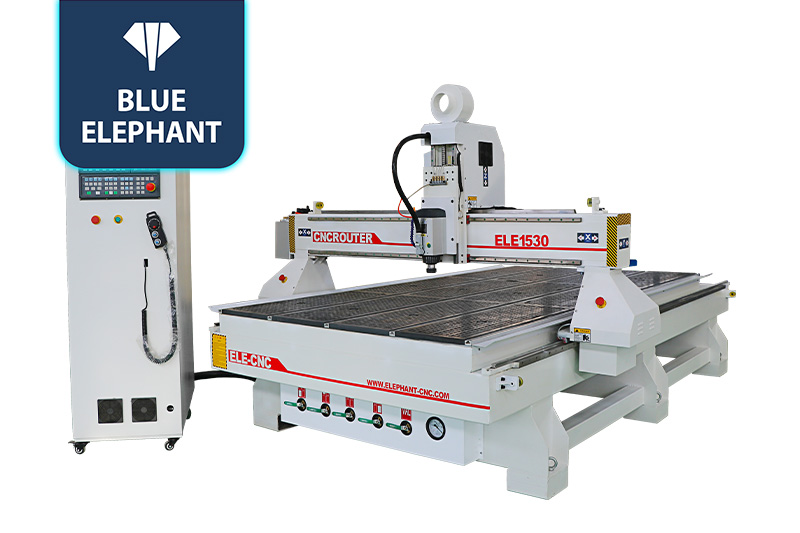

Buy 1530 CNC Wood Router Engraving Machine for Price in Sihanoukville, Cambodia

☆This is one of the best 3-axis engraving machine for sale. It is customized with a 1500*3000mm working area to better cut and engrave non-metal materials and some soft metals.

CNC Router Machines Video

features

  • Designed with Taiwan SYNTEC control system, which is easy to use and operate.
  • Equipped with the Italy HSD air cooling spindle, which can achieve good cooling effect without connecting a water pump.
  • It is widely used in the wood industry, furniture industry, technical research, advertising design, art creation, etc.

Parameters

Description Parameter
Model 1530 Woodworking Machines
X,Y,Z Working Area 1500*3000*200mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
Table Surface Vacuum and T-slot working table
X, Y Structure Helical Rack gear for X Y axis
Z Structure Taiwan TBI ball screw for Z travel
Spindle Original Italy HSD 4.5KW Air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors Japan YASKAWA servo motor, 850W and drivers, 1000W
Inverter Taiwan DELTA 5.5KW inverter
Lubrication system Manual lubrication system
Working Voltage AC380V, 3Ph, 50Hz (Option: 220V)
Operating System Taiwan SYNTEC 6MB controller with MPG handle wheel
Control box Single-sided indenpended control box
Vacuum pump 4KW German Becker vacuum pump (AC380V, 3Ph, 50Hz)
Frame New type thicker and bigger heavy duty welded frame and gantry
Dust collector 200mm vacuum pipe dust cover.

Application

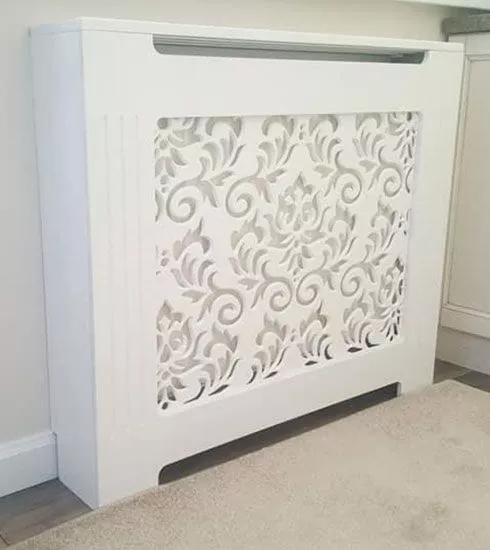

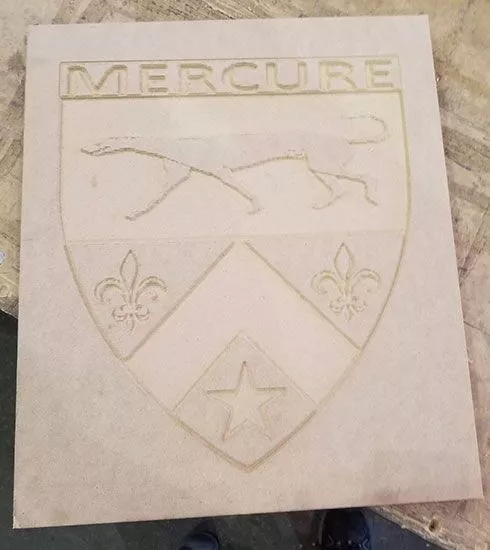

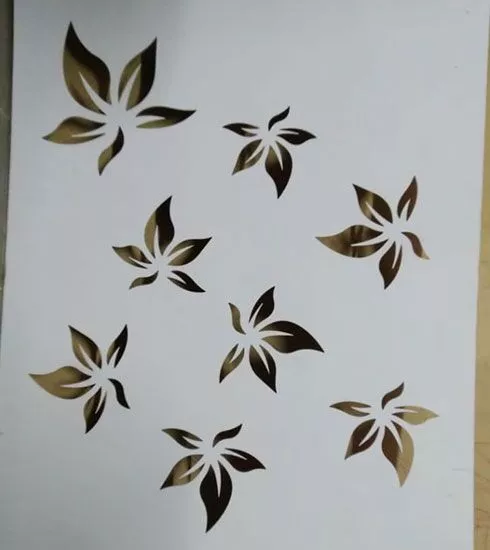

CNC Routers for wood working have wide applications in not only the wood working field but also the following industries: advertising, crafts, artworks, molding, electronics, construction, printing and packaging, decoration, tombstone, crystal products, etc. The most common purpose of the CNC wood cutting machine is to make panel furniture. For example, cabinets, cabinet doors, doors, office desks, etc.

Production Facility

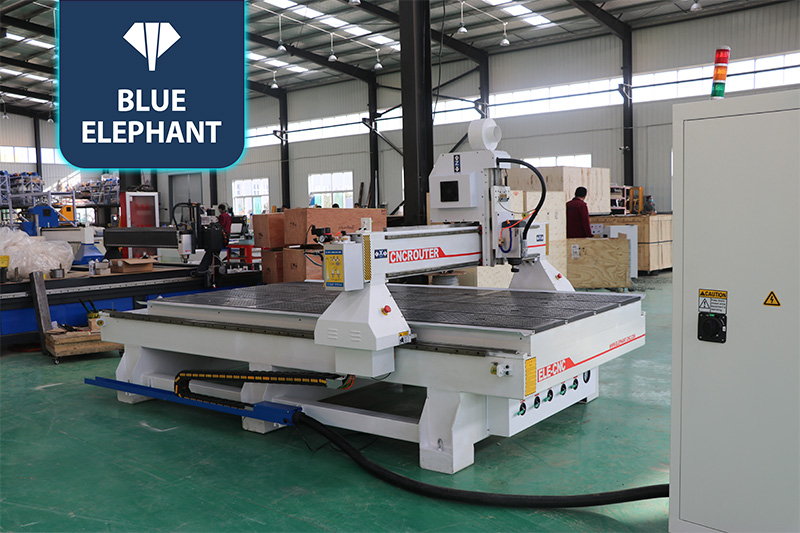

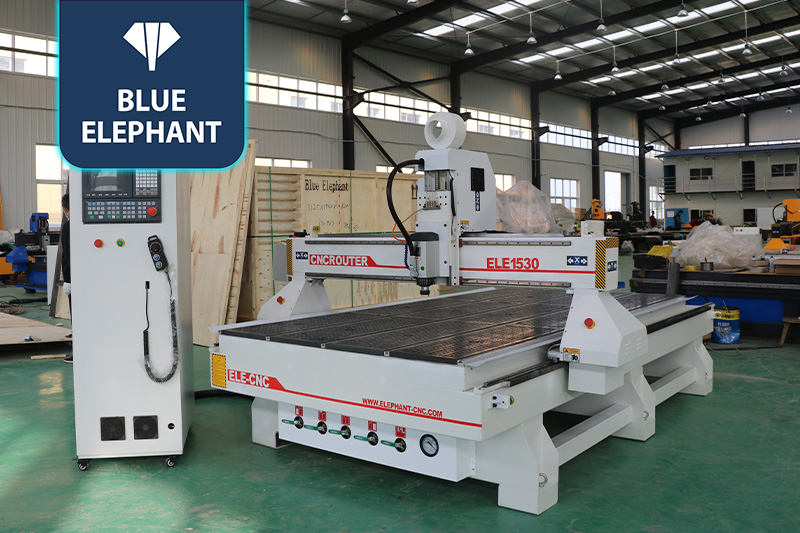

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

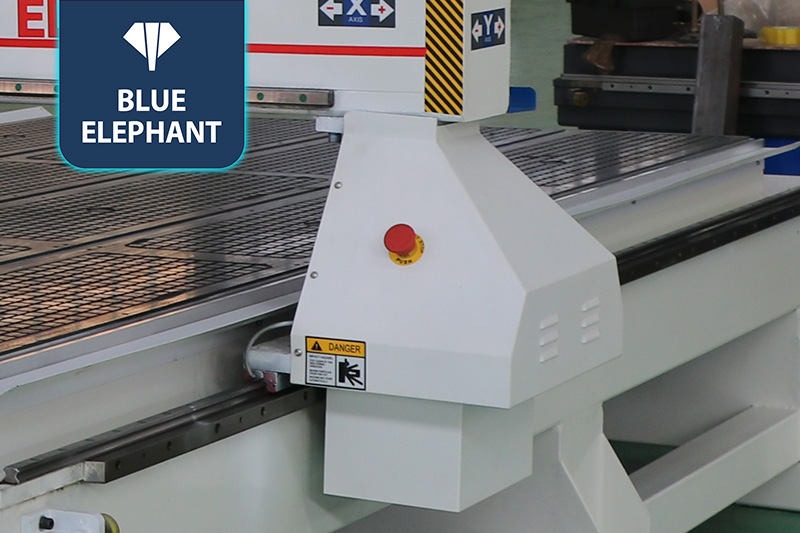

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images

Get Price & Details
