4×8 ATC Vacuum Tabe 4 Axis CNC Woodworking Machine for Sale in Chicago, Illinois, US

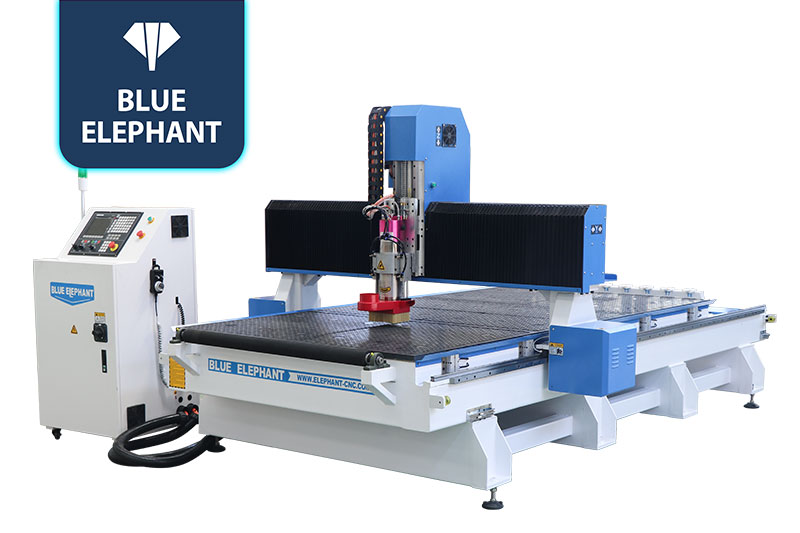

☆It is a linear ATC CNC router carrying 8 tools. Therefore, it can process some multiple complex samples. The welded construction of the heavy duty square tube ensures that there is no vibration or distortion during high speed machining.
ATC CNC Router Machines Video
Features
- Heavy duty square tube makes more stable
- More powerful 9kw air cooling spindle, has a stronger cutting ability.

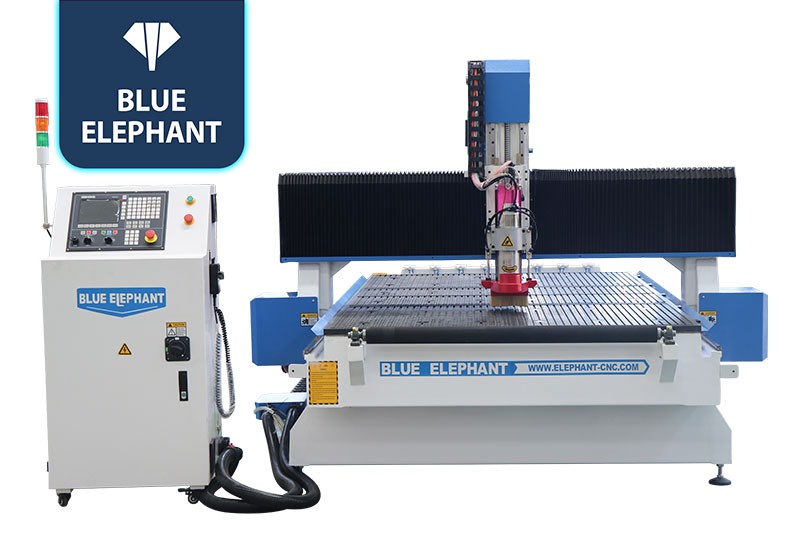

- Equipped with a separate control cabinet, more convenient in terms of operation and maintenance.
- It has been well received by large companies or those with diverse processing needs.
Parameters
| Serial Number | S20190822Y |
| Model | ELECNC-1530 ATC |
| Working area | 1500*3000mm*200mm |
| Spindle | 5KW Changsheng water cooling ATC spindle |
| Inverter | 5kw Fuling inverter |

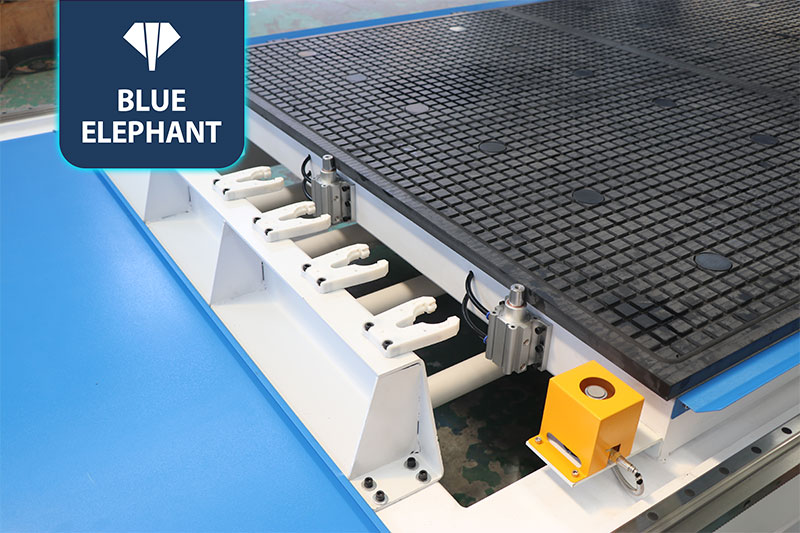

| Tool magazine | Liner 8pcs tool magazines |
| Control system | NK260 PC- Panel controller with MPG |
| Motor and driver | 1000W Japan YASKAWA servo motor and driver |
| Working Table | Total vacuum table (The vacuum table carving groove width is 50mm, double vacuum holes –total 36 holes, Hole Diameter is also in 50mm |
| limit switch | Japan OMRON limit switch |
| Reducer | Japan Shimpo reducer |

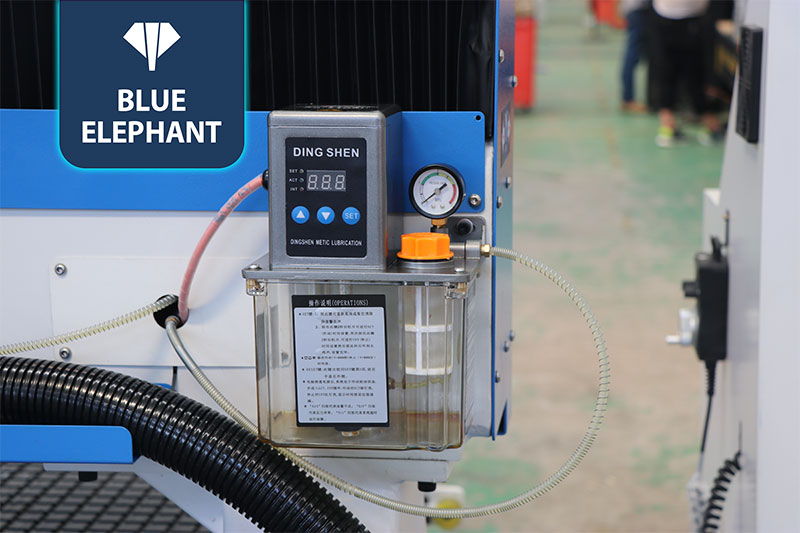

| Lubrication system | Automatic lubrication |
| Frame structure | More heavy duty machine body (tube caliber size of 100mm, Steel thickness of 5mm added the beam and total eight legs ) |
| Voltage | 220v 3 phase 60HZ(optional) |
| Tool sensor | Auto Tool sensor calibration |
| Software Compatibility | Artcam 2012 software |
Application
ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
