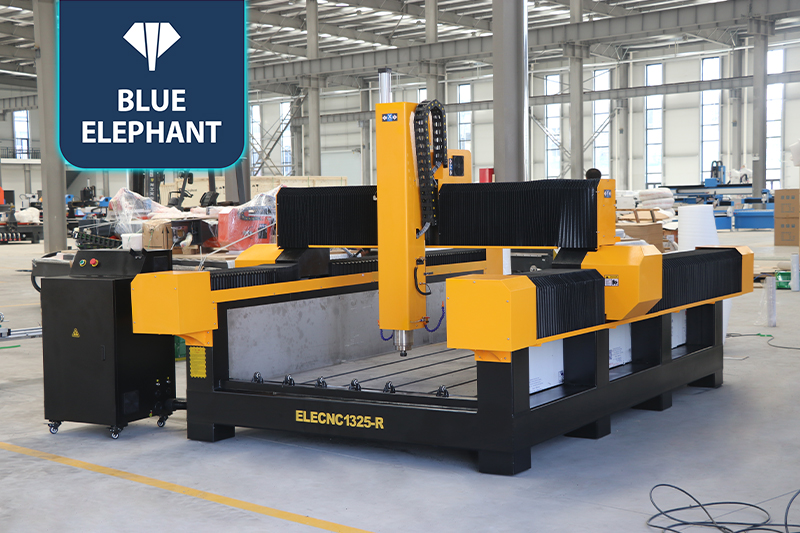

Great 3D 1325 ATC Rotary Axis Stone CNC Router Machine at Cost in Brazil, Albania, Switzerland
☆This machine can change tools automatically. And with high-quality and world-class cnc software, the machine can achieve high efficiency and high precision.
Stone Engraving Machines Video
features

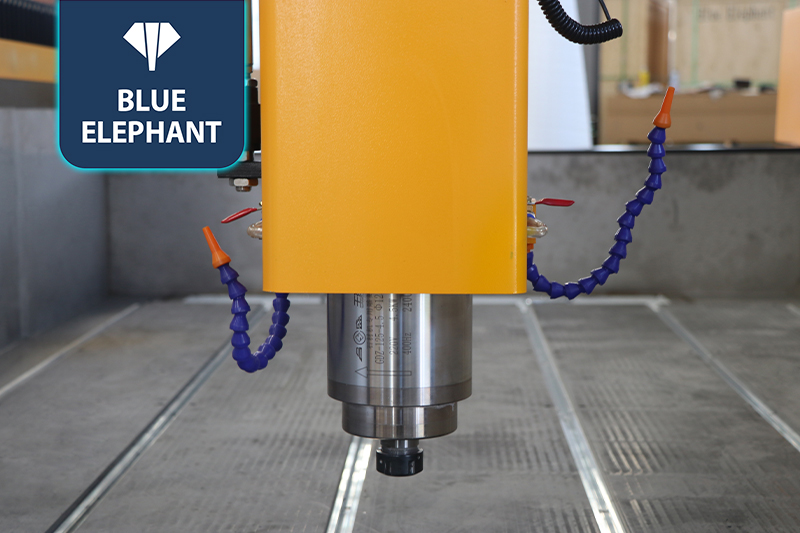

- Changsheng water cooling spindle has the features of fast cutting speed, low noise, cheap cost, etc.
- Taiwan Syntec control system can keep good machining stability during the processing.
- Auto lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.
Parameters
| Descriptions | Parameters |
| Working Area | 1300*2500*600mm |
| Spindle | CS water cooling spindle+ water cooling sprayer |
| Linear guide | Taiwan PMI #25 linear guide line |
| Motor and driver | Fl118 stepper motor+Yako 2811 drive |
| Rotary device | 200mm diameter |
| Software | Artcam or Aspire |
| Inverter | Fuling inverter |
| Working table | T-slot working table +water tank |
| Control system | DSP B18 |
Application
Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.
Production Facility
Quality Control & Testing
