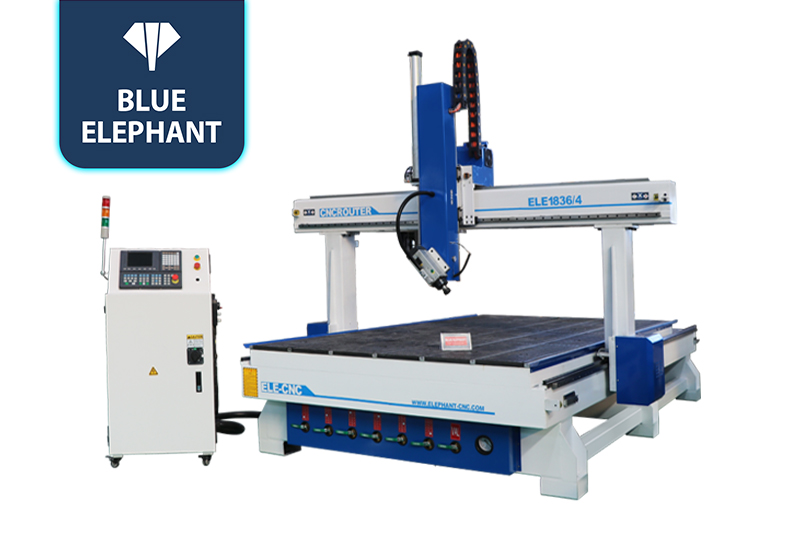

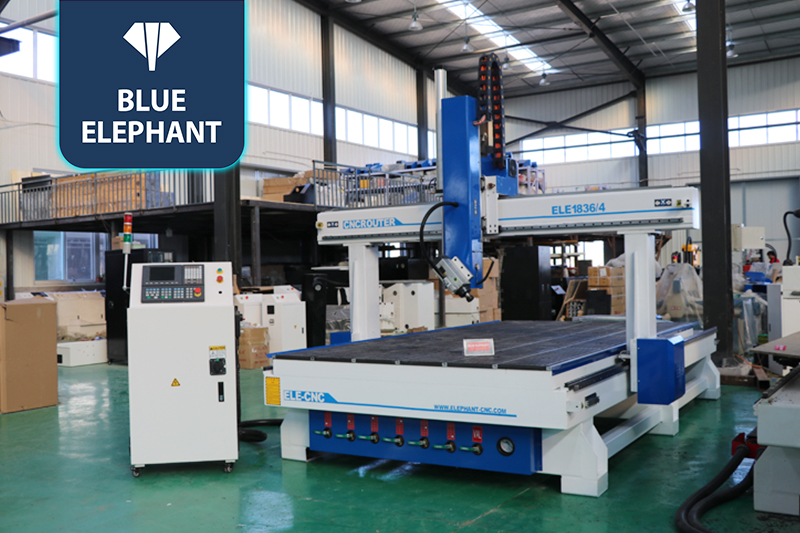

Custom 3D CNC Router Wood CNC Machine for Purchase in Iran.
☆This customized CNC router machine is provided with a large working size and a big Z-axis travel. It is widely used to process three-dimensional foam and wooden molds and statues. All parts and components are high-quality products to ensure long service life.
4 Axis CNC Router Machines Video
Features
- Custom worktable size and high Z-axis travel can meet customers’ processing demands effectively.

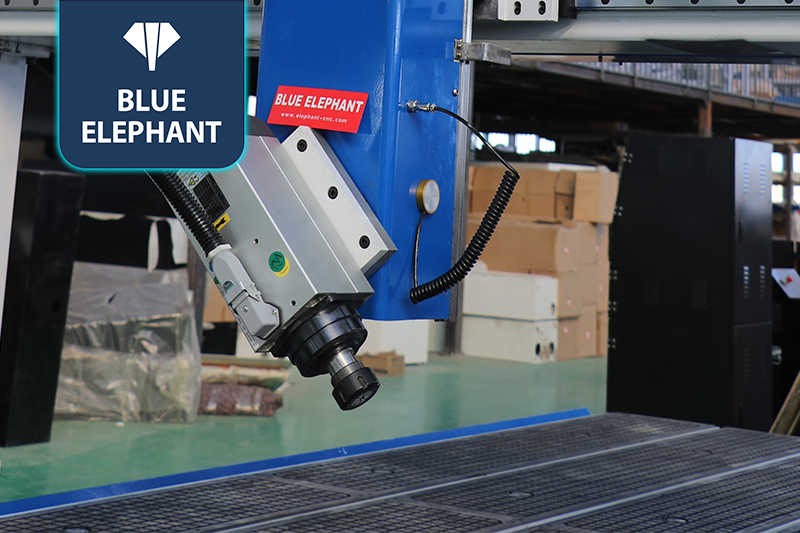

- The rotary CNC router spindle and high Z-axis travel enable this CNC router to process large-sized and tall wood statues.
- The whole vacuum worktable has a strong adsorption capacity to prevent the panel from sliding or moving during operation.
Parameters
| Descriptions | Parameters |
| Model | ELE1836 |
| Working area | 1800*3660*600mm |
| Control system | SYNTEC 6MB control system |
| Working Voltage | 380V,50HZ,3Phases |
| Spindle | Italy 6kw HSD air cooling spindle rotating +-90 degree |
| Spindle speed | 0-18000rpm |
| Inverter | 7.5KW Taiwan Delta inverter |
| Motor and Driver | Japan YASKAWA 750w servo motor and driver |
| Table surface | T-slot and vacuum working table |
| Structure | Industrial class square tube strong structure |
| Lubrication system | Automatic lubrication system |
| Transmission | ABBA linear guide for X,Y,Z axis
Helical rack on X, Y axis and Taiwan Ball Screw on Z axis |
| Vacuum pump | 7.5kw air type vacuum pump |
| Limited switch | Japan Omron |
| Software | UG |
Application
4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.
