Multi-spindle 4th Axis CNC Router Machine for Woodworking for Sale in Netherlands, Andorra

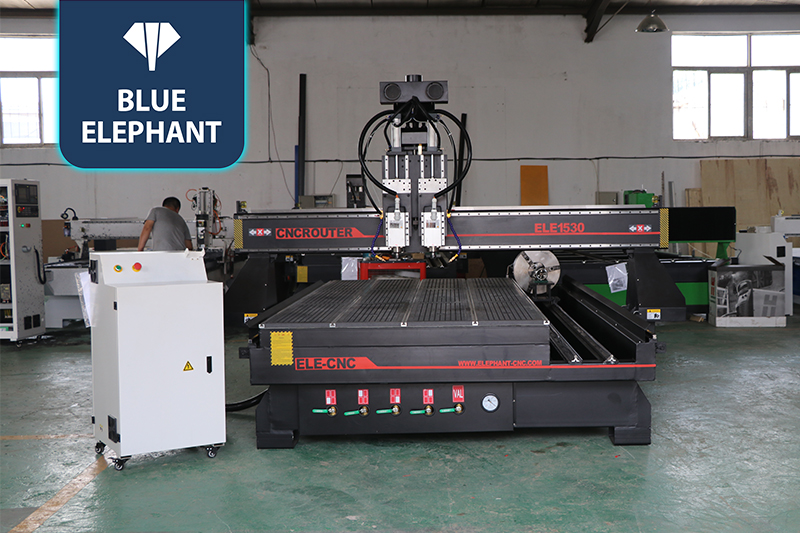

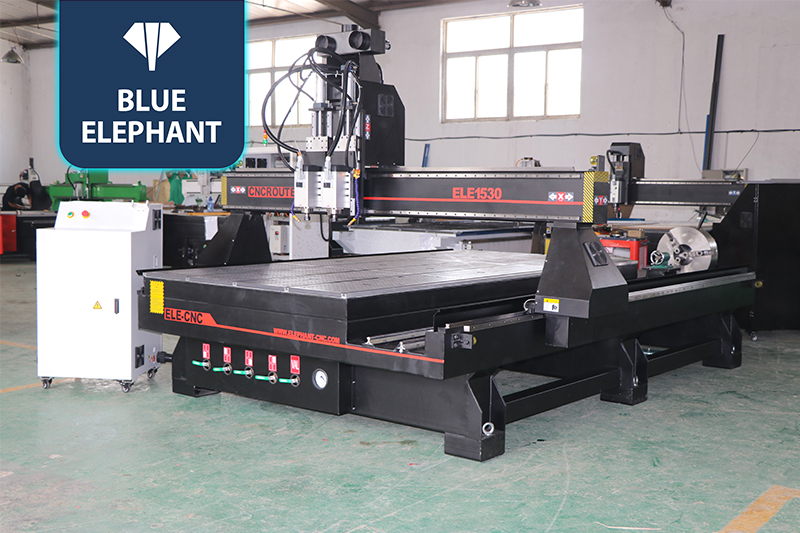

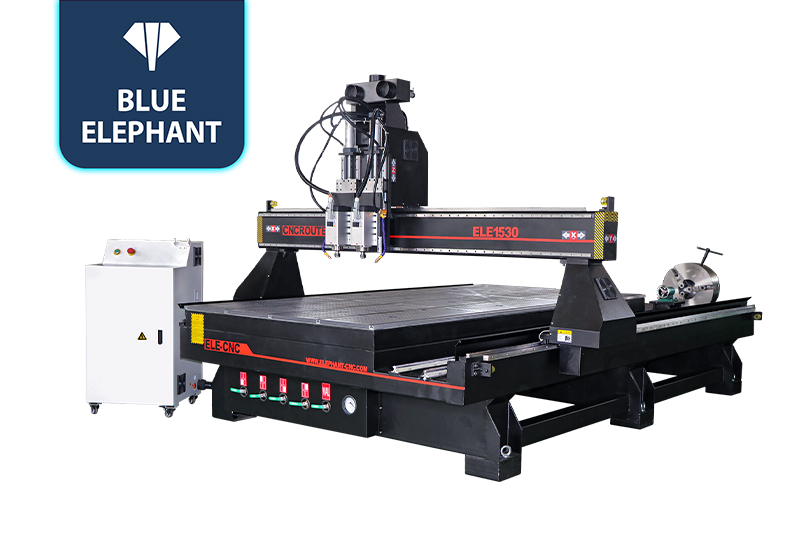

☆This custom CNC woodworking machine is provided with two spindles and a rotary device. It can realize both 2D and 3D processing. All major parts adopt famous-brand or high-quality products to ensure reliable operation and extend the service life of the machine
4 Axis CNC Router Machines Video
Features
- It is provided with two spindles to work together for mass production of the same products.
- The rotary device helps to carve and engrave cylinders, rods, square sticks, and other cylindrical workpieces.
- Specifications of this CNC router machine can be customized to meet different processing demands.
Parameters
| X,Y,Z Working Area | 1500x3000x400mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| The 4th axis | ±90° |
| Table Surface | Vacuum&T-slot Table |
| Frame | Welded Structure, heavy-duty T-structure |
| X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
| Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
| Transmission | X, Y rack & pinion drive, Z ball screw Transmission |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000m/min |
| Spindle Speed | 18000rpm |
| Spindle Power | 4.5kw Italy HSD air cooling spindle |
| Working Voltage | AC 380V/50/60Hz,3PH or AC 220V/50/60Hz |
| Motor Drive | 1000w YASKAWA servo motor servo driver from Japan |
| control System | SYNTEC 4 axis control system |
| Software Compatibility | Type3 , Artcam ,UGS ,UcancamV9 |
| Running Environment Temperature | 0 – 45 Centigrade |
| Inverter | 5.5kw Delta inverter |
Application
Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
