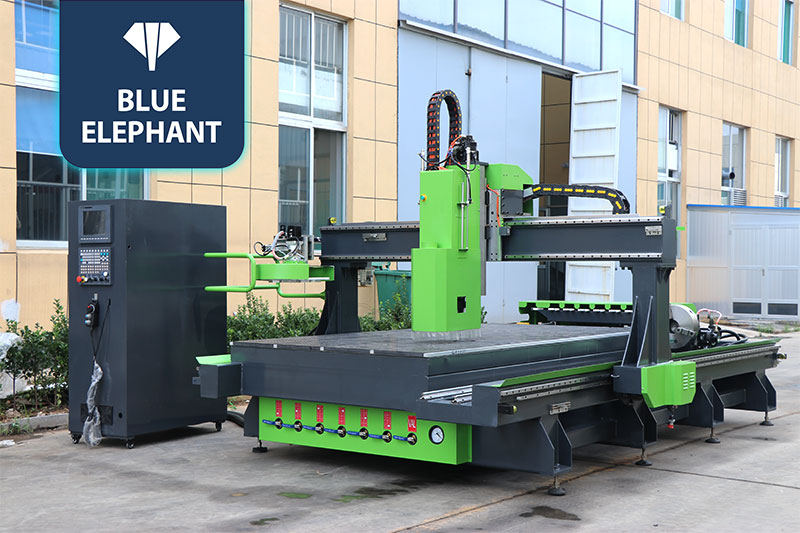

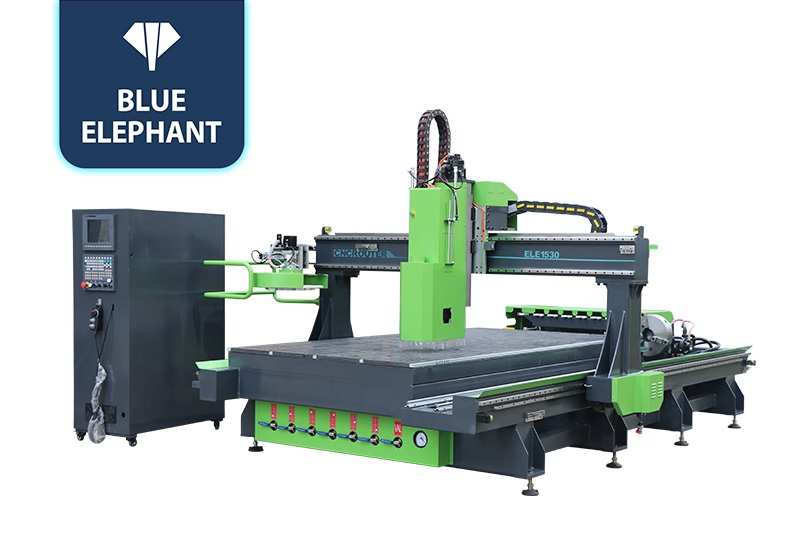

Custom 4 Axis Rotary CNC Router Machine with Double Tool Magzines for Sale in Mexico, Peru, South Africa
☆This custom rotary axis wood CNC router has two large-capacity tool magazines to meet the customer’s fast tool changing demands. It can complete multiple complex and delicate designs on both panels and cylindrical workpieces due to the rotary device.
Rotary Axis CNC Router Machines Video
Features
- This CNC router machine is equipped with one 12-tool linear tool magazine and one 12-tool carousel magazine to realize fast tool change and complex processes.

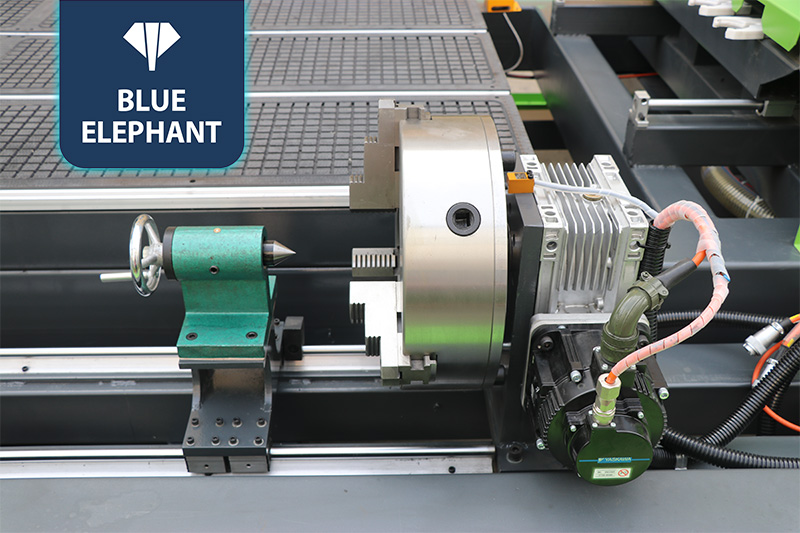

- The rotary axis is installed beside the worktable and used to carve and engrave cylindrical parts, such as handrails, balusters, furniture legs, building columns, posts, etc.
- The vacuum worktable has a strong adsorption capacity to fix the panel on the worktable, preventing the panel from sliding or moving during operation.
Parameters
| Serial Number | S20191024Z |
| Model | ELECNC-1530 4 axis |
| Working area | 1500x3000x400mm |
| Spindle | Italy Original 9.0KW HSD ATC Spindle |
| Inverter | Taiwan DELTA 11.0kw Inverter |
| Tool magazine | 12pcs carousel ATC+12pcs HSK-63F tool holders |
| Control system | Taiwan SYNTEC11MB Control System |
| Motor and driver | 850w Japan Yaskawa servo motors and 1000w drivers |
| Switch | France Schneider safety switch |
| Working Table | Vacuum Table with t slot |
| limit switch | Japan OMRON Limit Switch |
| Lubrication system | Automatic oil lubrication system |
| Voltage | 380V, 3Phase, 50HZ |
| Vacuum pump | German Becker KVT3.140 4.0KW vacuum pump |
| X,Y,Z Rail | 25mm Sweden ABBA Linear rails |
| Dust collector | 1.5kw Europe CE Standard double bags dust collector |
| Tool sensor | Automatic tool sensor system |
| Software Compatibility | ARTCAM Software |
Application
Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
