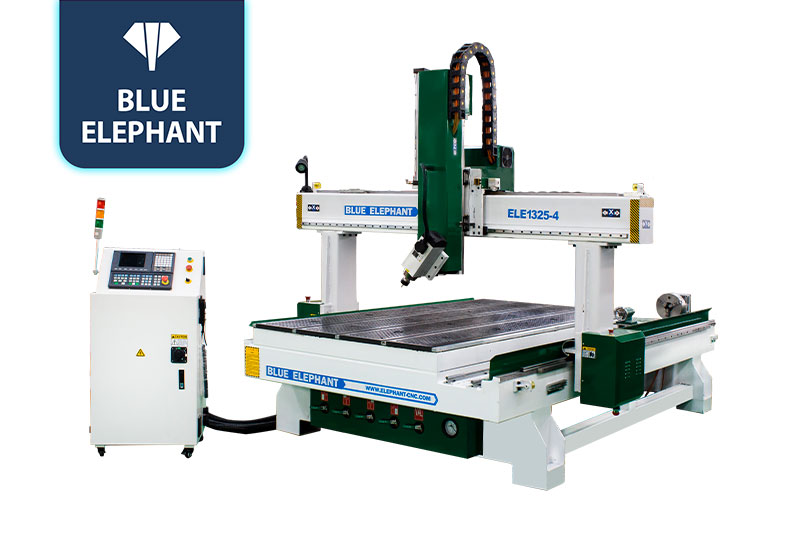

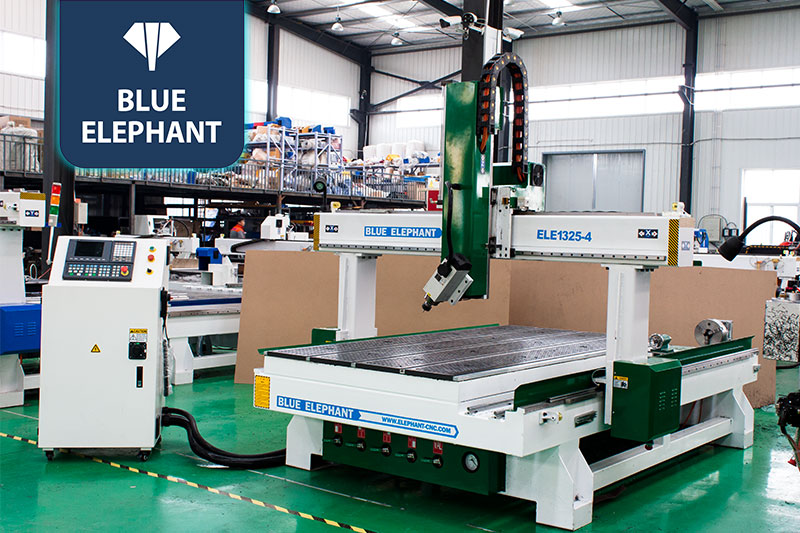

High Performance 4 Axis C and C Wood Router Machine with Rotary Device for Purchase to Vancouver, New York

☆This 4 axis CNC wood router is specially designed for processing various three-dimensional workpieces. The manual tool changing method saves cost than the ATC model but can also complete a variety of complex processing by changing tools automatically.

Rotary Axis CNC Router Machines Video

  • The rotary spindle, rotary device, and high Z-axis travel enable this CNC router machine to engrave and carve thick and tall 3D workpieces.
  • It adopts the SYNTEC control system, which is easy to learn and operate.
  • All parts and components of this CNC router machine adopt famous-brand or high-quality products to ensure long service life and safe and reliable operation.

Parameters

Descriptions Parameters
Model ELE1325-4
Working area 1300*2500*400mm
Control system Taiwan SYNTEC6MB Controller
Working Voltage 380V or 220V

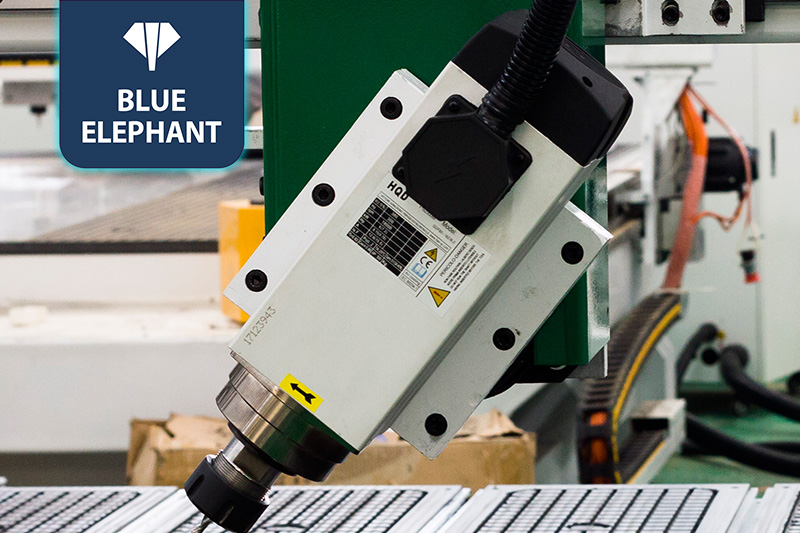

Spindle 6kw HQD air cooling spindle, spindle rotation in 180 degrees, 18000RPM
Spindle speed 0-18000rpm
Inverter 7.5kw Fuling inverter
Motor and Driver 750w Japan YASKAWA servo motor and driver
Table surface T-slot and vacuum working table
Structure Heavy Duty 8mm Steel machine bed; 10mm Moving Steel Gantry
Lubrication system Manual lubrication system
Transmission X,Y axis: rack and pinion drive

Z axis: Taiwan TBI ball screw

X,Y axis: Sweden ABBA square guide rails with 20mm

Vacuum pump 5.5kw Votex vacuum pump,
Control box independent box
Software UG

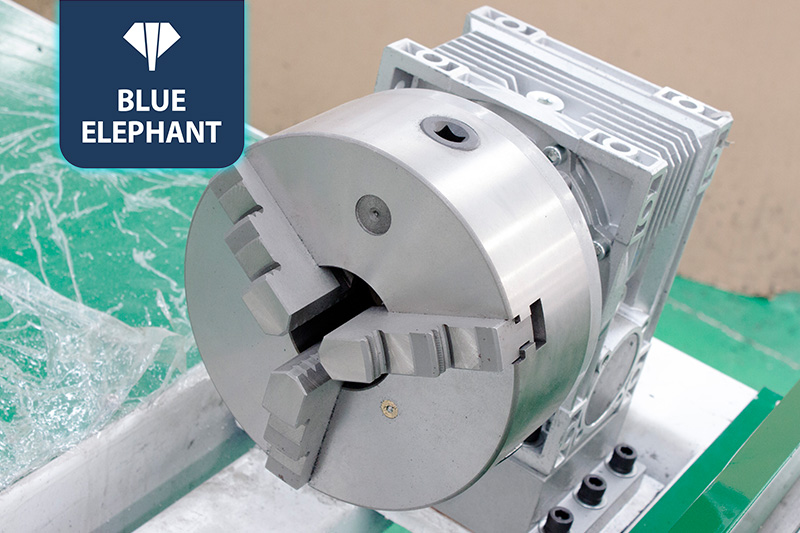

Rotary 200mm diameter and 2000mm length of rotary device on Y axis

Application

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.
