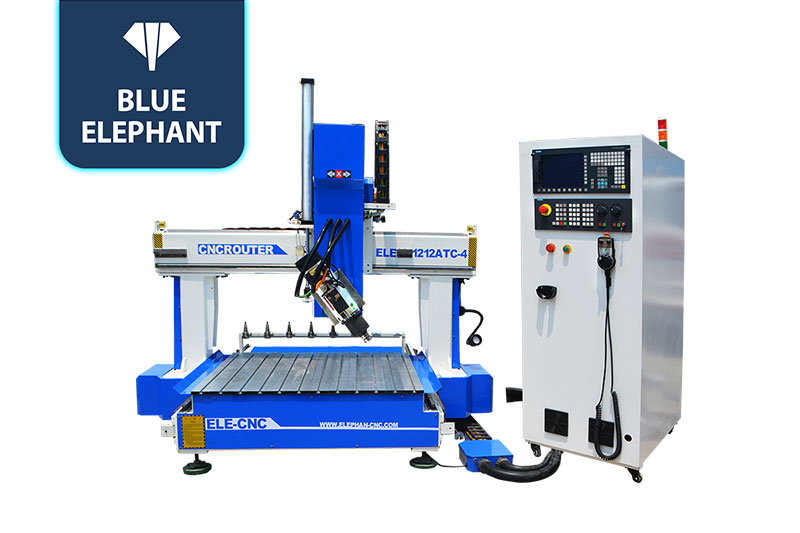

Best 4 Axis Small CNC Router Machine with ATC for Sale at Cost Price in Spain, Gabon, Canada

☆This 4*4ft CNC woodworking engraving machine not only has the functions of a 4-axis CNC engraving machine, but also has the advantages of an ATC CNC wood cutting machine.

ATC CNC Router Machines Video

features

  • With a linear tool changer magazine, it can change various diffent tools fast and automatically.
  • It can not only meet the processing of flat workpieces, but also the processing of 3D and complex products.
  • 1.With the 1200*1200mm effective working area, it is very suitable for small businesses and shopes.

Parameters

Model ELECNC1212ATC
X,Y axis travel 1200x1200mm, option:1500*3000mm;2100*3000mm;2100*4000mm,etc
Z axis travel 200mm, option:300mm,400mm,500mm,600mm,etc
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
Drilling bank Taiwan or Italy 5+4 vertical drills
Tool magazine Linear type auto tool changer
Option: Carousel type auto tool changer
Tool holder with collet ISO30,ER32 collet:φ4,φ6,1/8,1/2
Control system Taiwan SYNTEC /LNC controller, option:Ncstudio
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option:1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces(X2,Y3)
Linear guide Taiwan Linear guide with dust proof
Transmission X, Y axis: Taiwan /Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool Calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE,cUL certificate
Compatible Software Artcam,Alphcam,Type 3,Ucancam, Aspire,etc
Command Language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working Accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

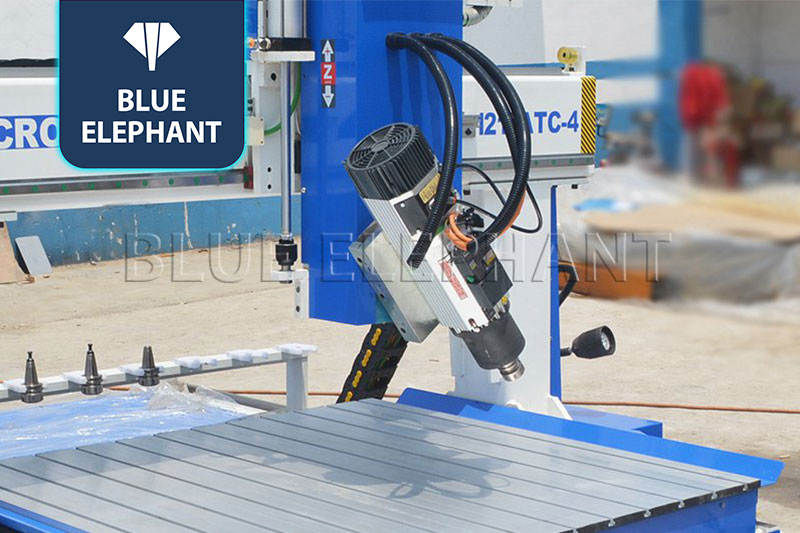

The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
