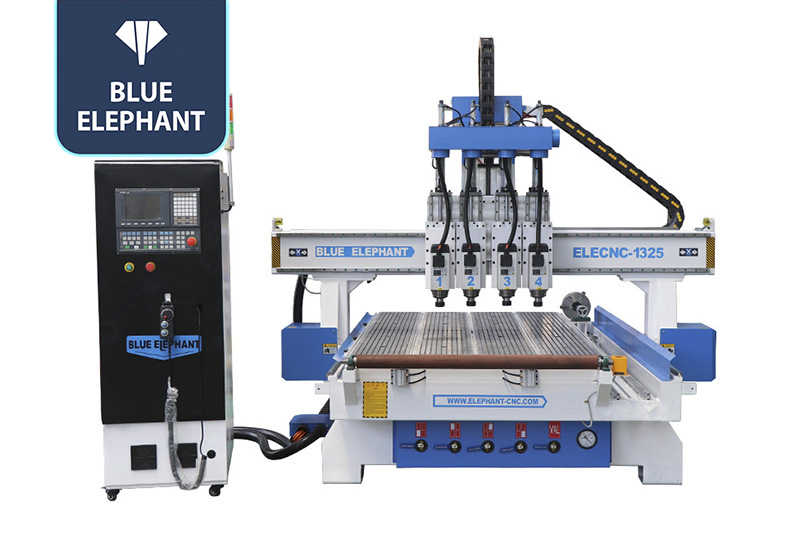

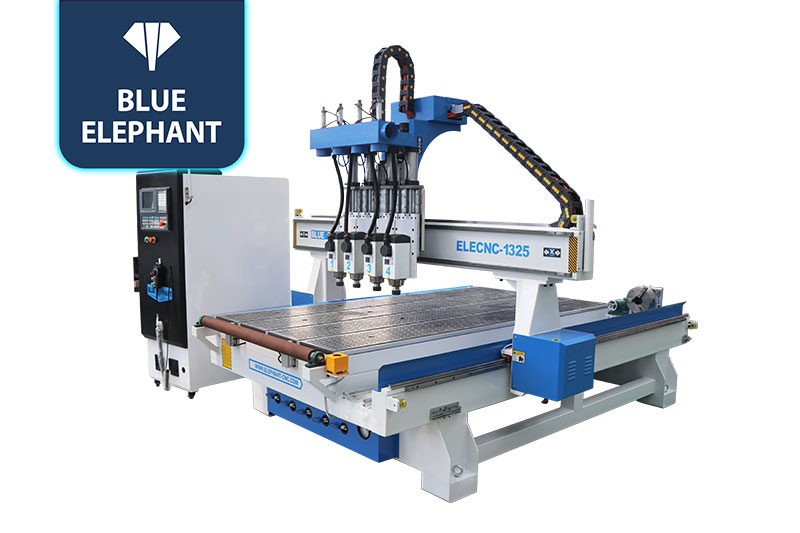

Best 4 Processes Rotary Axis CNC Router at Favorable Price in Anchorage, Alaska

☆This is a multi processes CNC router that is suitable for the cutomers who need to change a variety of tools.

CNC Router Machines Video

features

  • No manual tool changing is required during the machining process, and the program is automatically executed.
  • Designed with the 10-12mm steel plant heavy duty body, the stable machine operation can be ensured.
  • If you want, the machine working  table size of 1300*2500mm can also be changed to your suitbale processing size.

Parameters

Model ELECNC-1325
X,Y axis travel 1300x2500mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, etc.

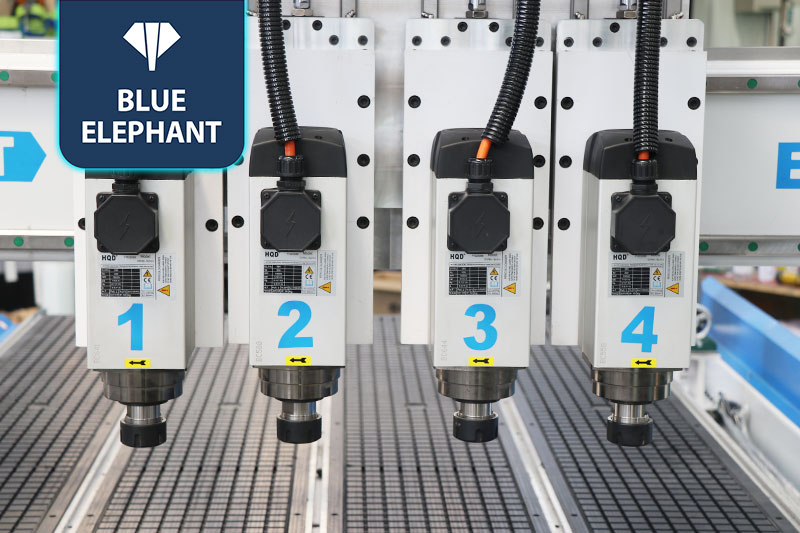

Spindle type 3×3.5kw HQD air cooling spindle, ER20
Inverter type 3.7kw
Rotary device 300mm diameter rotary device
Control system DSP A123, option: Japan Syntec 60we, Taiwan LNC 2200
Driving system Stepper FL118 motor and drivers. option: 850w Japan Yaskawa servo
Reducer Option: Japan SHIMPO reducer
Machine structure 10-12mm steel plant heavy duty body

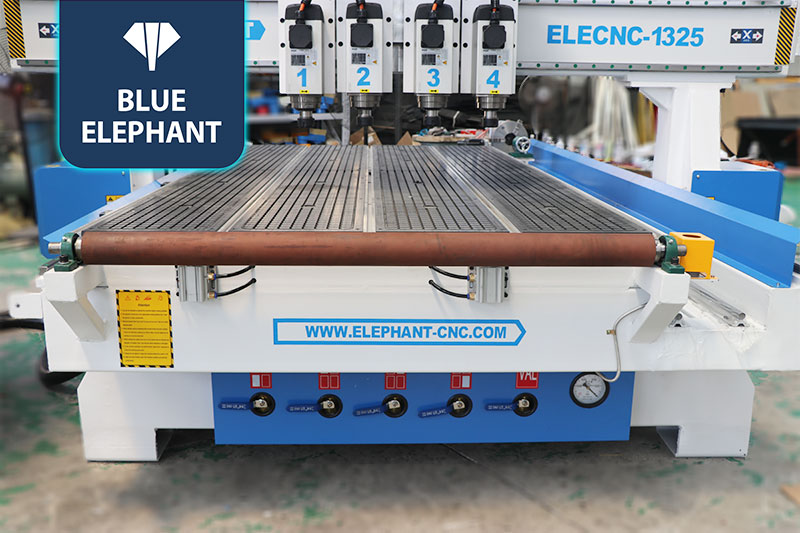

Work table Vacuum & T-slot work table
Positioning cylinder Optional: 5 pieces (X2, Y3)
Linear guide 20# Taiwan linear guide
Transmission X,Y axis: Taiwan / Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam
Command language G Code & M Code
Traveling speed 40m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.07mm
Working air pressure 0.8MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands

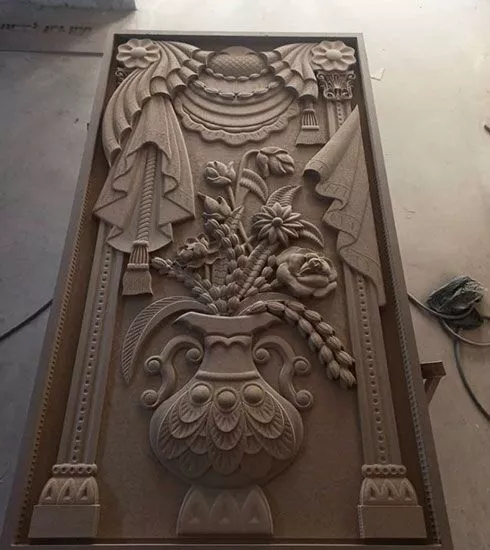

Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos

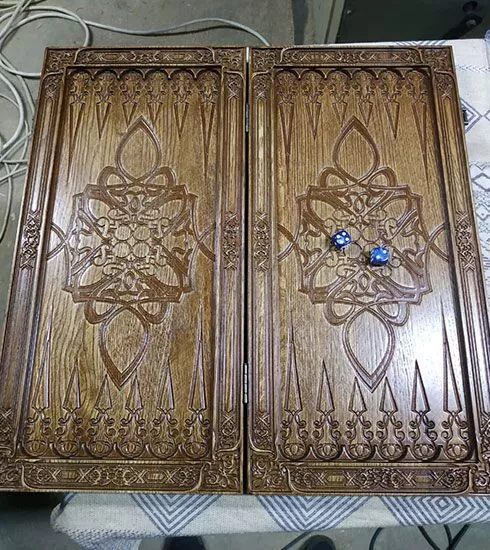

Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers
