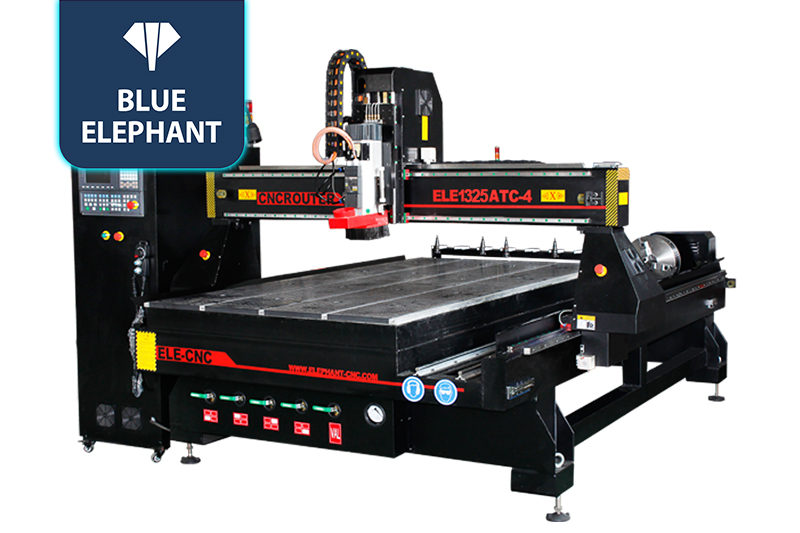

Linear 1325 Auto Tool Changer CNC Router with Rotary Device in Salt Lake City, Utah, USA

☆This versatile ATC CNC wood router can process both 2D and 3D machining. And it can improve processing efficiency for its auto tool change function. This is the best choice for those small and medium-sized furniture manufacturer.

ATC CNC Router Machines Video

Features

  • 4×8 ATC CNC milling machine with rotary unit requires less time to change tools.
  • Equipped with a rotary unit for cylindrical carving and engraving, you can do more and better wood processing.
  • Specifications of this CNC router machine can be customized to meet different processing demands.

Parameters

Model ELECNC1325ATC-R
X, Y axis travel 1300*2500*300mm,
option: 1500*300mm; 2100*3000mm; 2100*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, etc.

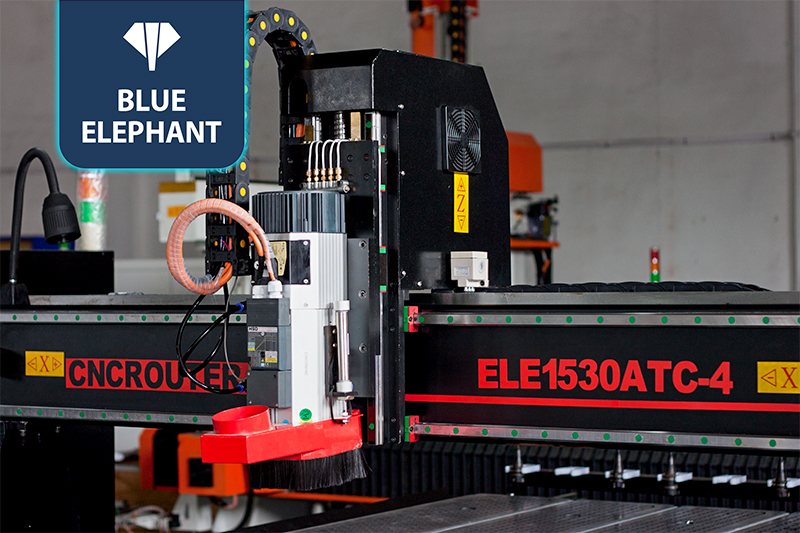

Spindle type 9kw HQD ATC air cooling spindle, ISO30, ER32
Inverter type 11kw Fuling inverter

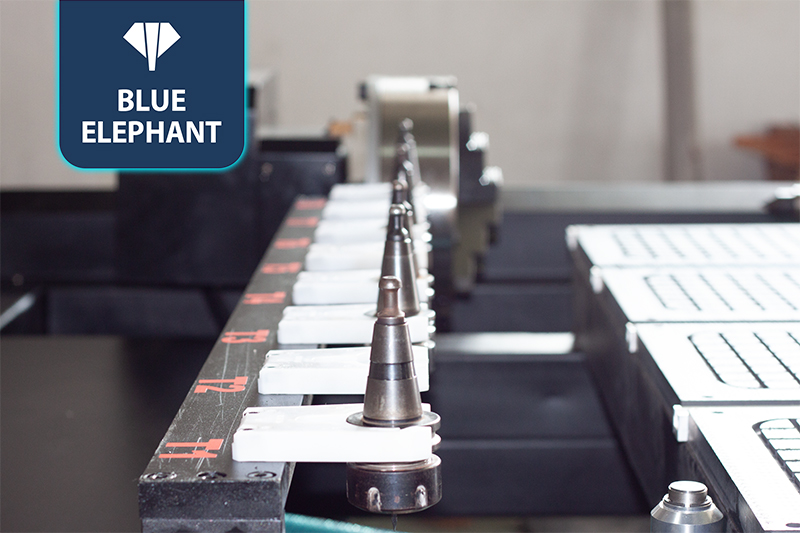

Tool magazine Linear type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC 60WE
Driving system 1000W Japan YASKAWA AC servo driver and 850W AC servo motor, 4 sets
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment

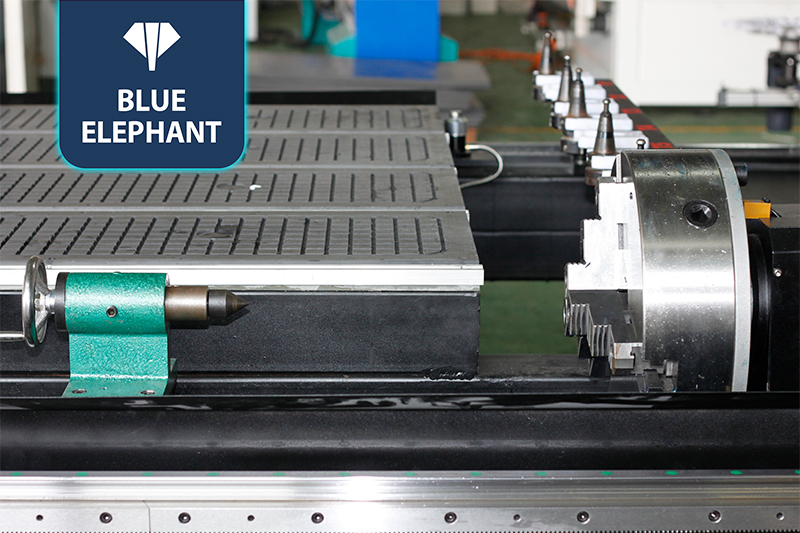

Rotary device 200mm diameter rotary device
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan 25# Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software ARTCAM and Aspire
Command language G Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

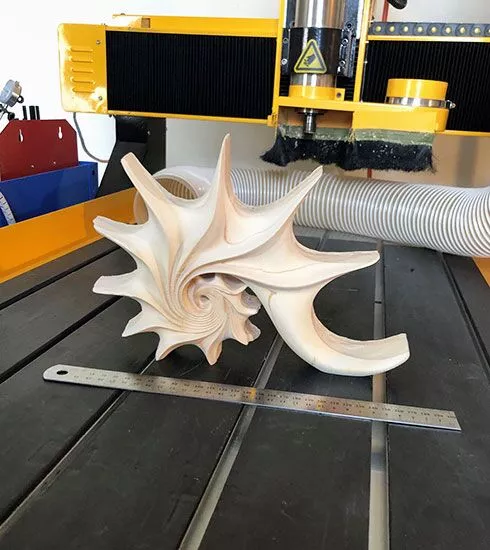

4 Axis CNC Router is suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
