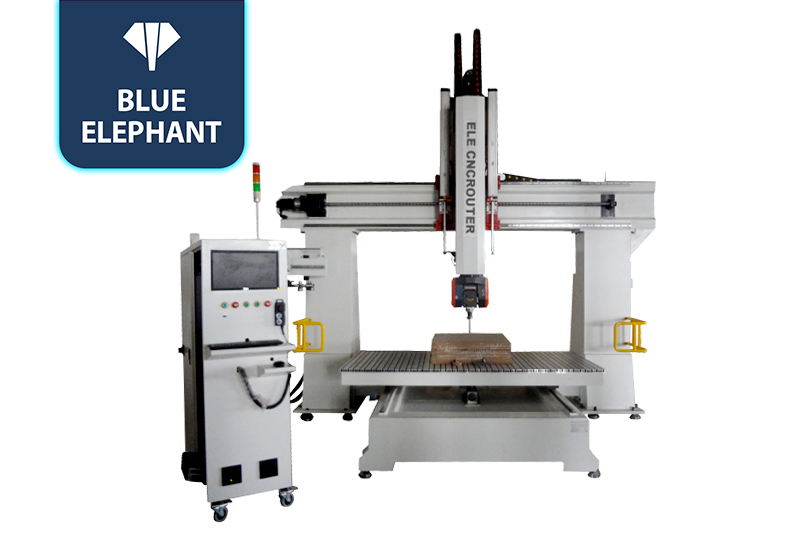

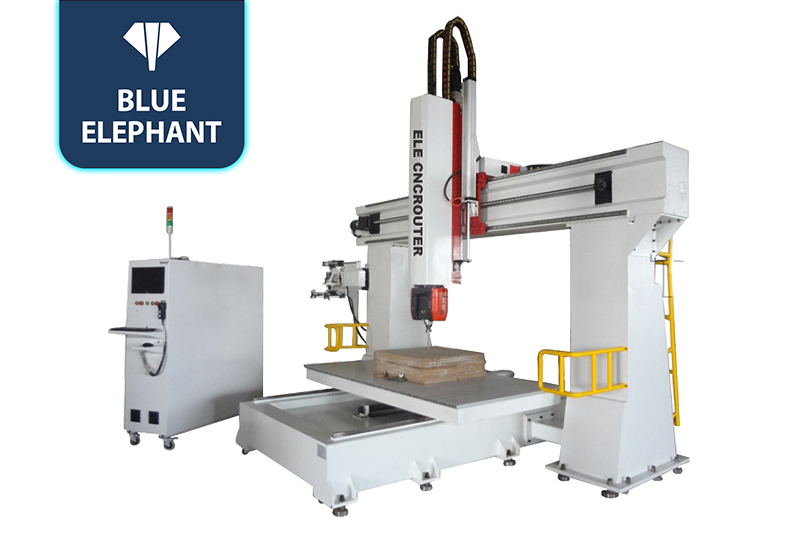

Best Selling 1224 Foam 5 Axis CNC Router Machine at Favorable Price in Norway, America, Dubai

☆It is one of the most typical 5 axis CNC router.  Diversified functions will guarantee the processing speed, idling speed, cutting speed, and greatly improves the quality of processed products and processing efficiency. And it also supports 5-8 axes linkage.

CNC Router Machines Video

FEATURES

  • With European OSAI control system, it is powerful and easy to operate.
  • Z axis travel can be increased to 1.5 meters, which is suitable for large-scale workpieces.
  • With cross-border protection, it is more intelligent.

Parameters

Model ELECNC1224 5 axis
X,Y axis travel 1200x2400mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle type 10kw 5 axis Demas ATC spindle, HSK F63, ER32
Inverter type 15KW Delta inverter series B
Drilling bank Taiwan or Italy 5+4 vertical drills
Tool magazine Carousel type auto tool changer
Option: Linear type auto tool changer
Tool holder with collet HSK F63,ER32 collet: φ4, φ6, 1/8, 1/2

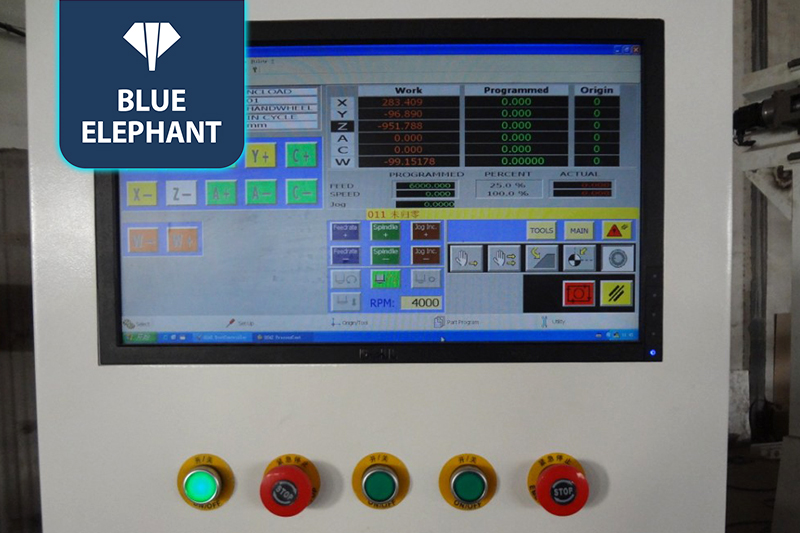

Control system Syntec 610-E5 5 axis control system
Driving system 1.3kw Japan Yaskawa servo motors and drivers
Option: 1.5kw Leadshine servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot work table with PVC protection
Positioning cylinder 5 pieces(X2,Y3)
Linear guide Taiwan linear guide, 35# on Y axis, 30# on X ans Z axis
Transmission Taiwan TBI ball screw 3510
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software UG, Powermill, etc
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
