Top Rated Quartz, Granite, Marble 5 Axis Stone Bridge Saw for Hot Sale in US, Britain, Austria

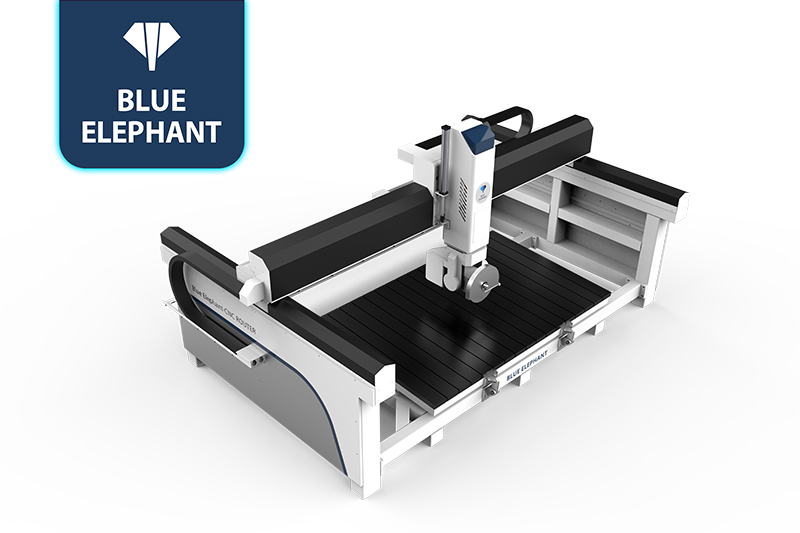

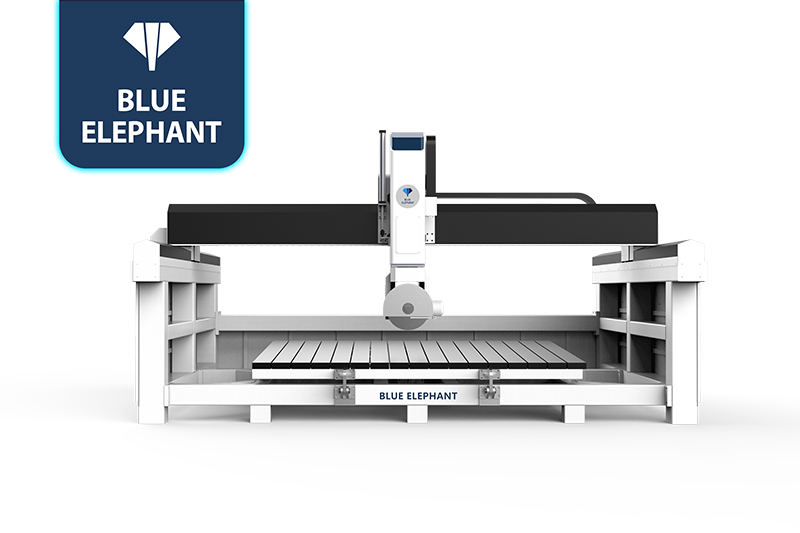

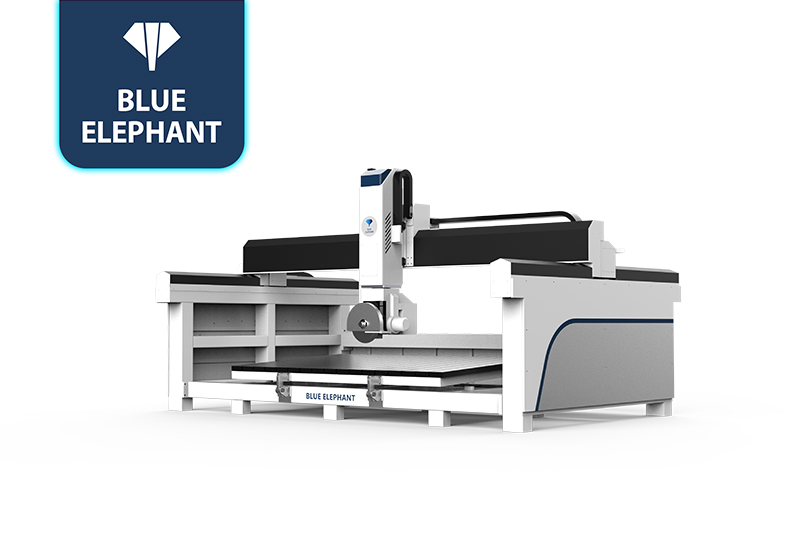

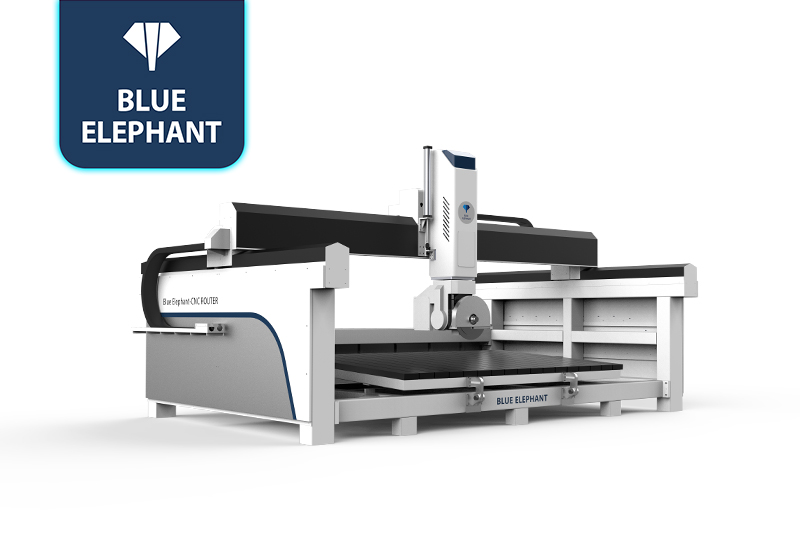

☆This new design 5 axis stone cutting bridge is a kind of stone CNC machining center which can cut quartz, marble, granite, and rock slabs with a powerful saw blade. Besides, it can realize multiple functions like cutting and milling straight and inclined edges, chamfering, cutting arc edges, polygon, edge milling, edge tracking, and so on. So it is widely used in the stone processing plants, kitchen countertop processing, background wall profiling, etc.
CNC Machining Center Video
Parameters
| ES5-3220 5 axis CNC stone bridge saw | ||
| Working travel | X, Y, and Z | 3200*2000*500mm |
| C axis | ±185° | |
| A axis | 0-90° | |
| Moving speed | X axis | 30m/min |
| Y axis | 30m/min | |
| Z axis | 15m/min | |
| Servo motor | X and Y | 850W Delta absolute servo motor |
| Z axis | 850W Delta absolute servo motor with brake | |
| A and C | 750W Delta absolute servo motor | |
| Guide rail | X, Y, and Z: # 30 | |
| Rack | X、Y | 2M T-WIN |
| Worktable | Structure | Square timber |
| Worktable size | 3200×2000mm | |
| Turning angle | 0-80° | |
| Max. weight for turning | 800KG | |
| Saw | Dimension | 450mm |
| Max. cutting thickness | 100mm | |
| Ball screw | Z | 3210 PREYP |
| Reducer | X/Y: SHIMPO | |
| Saw motor | 11KW BRICH motor, Rated: 1500r/min | |
| Inverter | 15KW BRICH | |
| Control system | Blue Elephant customized system (built-in CAM software) | |
| Low-voltage electronics | SCHNEIDER | |
| Working air pressure | 0.7-0.8Mpa | |
| Voltage | 380V/3P/50HZ | |
| Overall dimension | 5.8×4.5×3.3m | |
| Weight | 5.5 ton | |
Application
The 5 axis CNC stone bridge saw is good at cutting, milling, chamfering and edging quartz, marble, artificial stone and slabs in regular and irregular shapes. It can realize countertop cutting, bridge cutting, roman column cutting, arc line cutting, concave-convex cutting, and irregular edge cutting and milling.
The automatic stone cutting bridge saw can process products of sanitary ware, stone furniture, interior decoration, and other fields. For example, wash basins, bathroom countertop, stone tables, dinning tables, kitchen tables, kitchen cabinet basins, background wall, roman edge stone decorations, etc.
