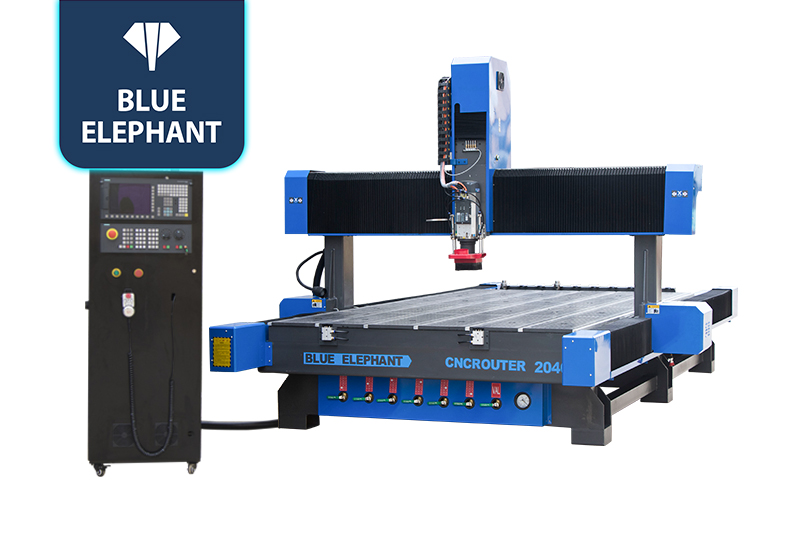

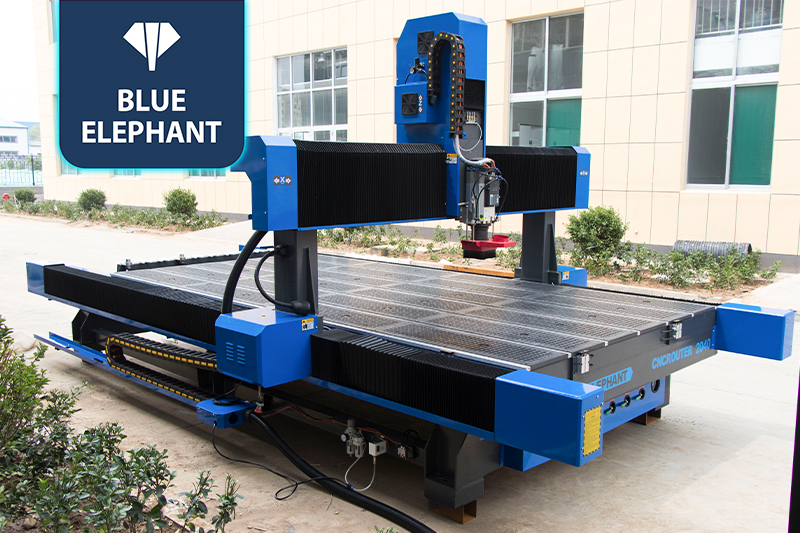

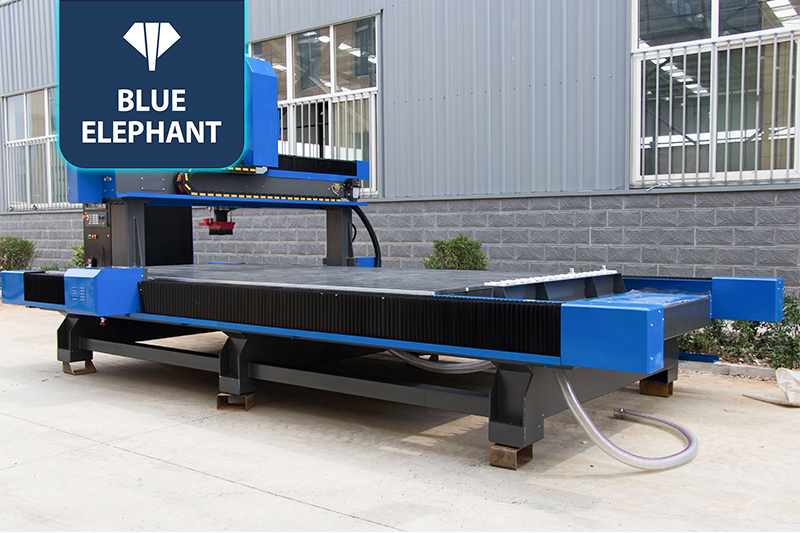

Best-selling 4 Axis Wood CNC Machine with Affordable Price for Sale in Memphis, Tennessee
☆ The rotary CNC milling machine spindle and high Z-axis stroke enable this CNC milling machine to engrave thick and high 3D workpieces, and therefore it has received wide popularity in the field of 3D model processing. In addition, it can automatically exchange 8 CNC milling cutters in the disk-type tool magazine, and the processing speed is so fast that one person can control 2 machines to improve work efficiency and save labor.
4 Axis CNC Router Machines Video
Features
- quipped with a 9kW air-cooled spindle that can rotate 90 degrees to the left and right, respectively, for fast cutting speed and high engraving accuracy
- 300 Set/Sets per Month cnc router machine for aluminum
- 2 press rollers on the table help to hold and compress the board during operation to avoid movement and slippage.
- Specifications can be customized according to different processing needs.
Parameters
| Description | Parameter |
| Model | ELECNC1540ATC-4 |

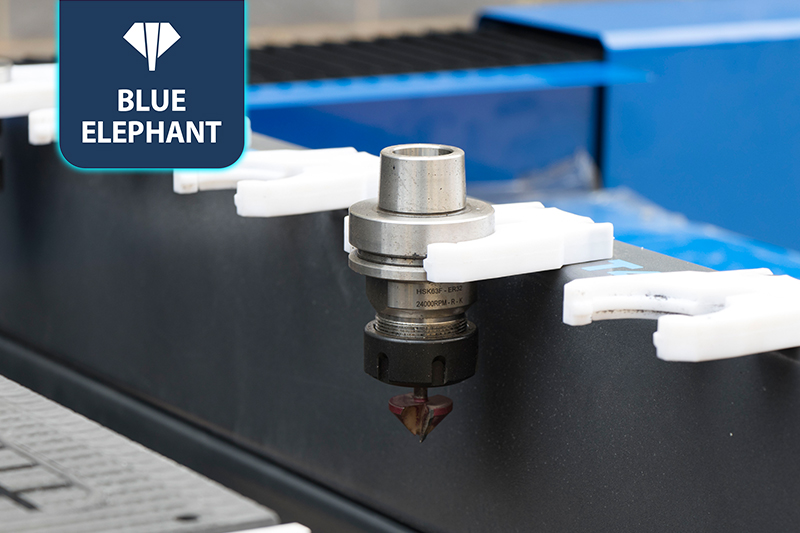

| Tool Magazine | Round or carousel type auto tool changer with 8 tools storage |
| X, Y, Z Working Area | 1500x4000x400mm |
| Table Surface | Vacuum and T-slot working table, 8 zones;
2 pcs roller in the front of table |
| Table Structure | New type thicker and bigger heavy duty welded frame and gantry |
| X, Y Structure | Rack and pinion drive, Sweden ABBA #30 square linear guide;
Dust cover for X, Y, Z axis |
| Z Structure | Sweden ABBA #30 square linear guide and TBI ball screw |
| Spindle | 9kW Chinese HQD air cooling spindle, swing to -90°to +90° |
| Spindle Speed | 0-24000rpm |
| Driver & Motor | 850W Japan YASKAWA servo motor and 1kW driver |
| Inverter | 11kW Fuling inverter |
| Working Voltage | 380V, 3phase, 50HZ (Can customize according to different countries’ policy) |
| Operating System | Taiwan SYNTEC 6MB control system |
| Computer Interface | USB |
| Lubrication system | Automatic lubrication system |
| Tool sensor | Automatic tool sensor calibration |
| Position cylinder | Auto position cylinder 6 pcs |
| Others | Japan Shimpo reducer;
Two sets of 7.5kW vacuum pumps; Japan Omron limit switch; 1.5kW new type double package dust collector |
Application
The 4-axis ATC CNC milling machine here refers to the ATC CNC milling machine with a rotating spindle that can swing 180° from left to right to machine cylindrical materials. The working path of 4-axis ATC CNC milling machine includes X, Y, Z and A-axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculptures and statues. In addition, it can drill side holes or cut side grooves or slots in the side of wood panels. 4-axis ATC CNC milling machine has a wide range of uses in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
