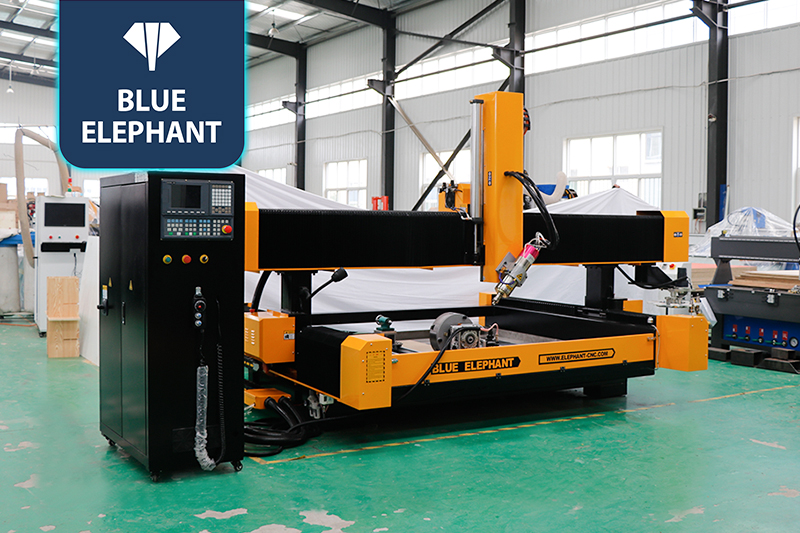

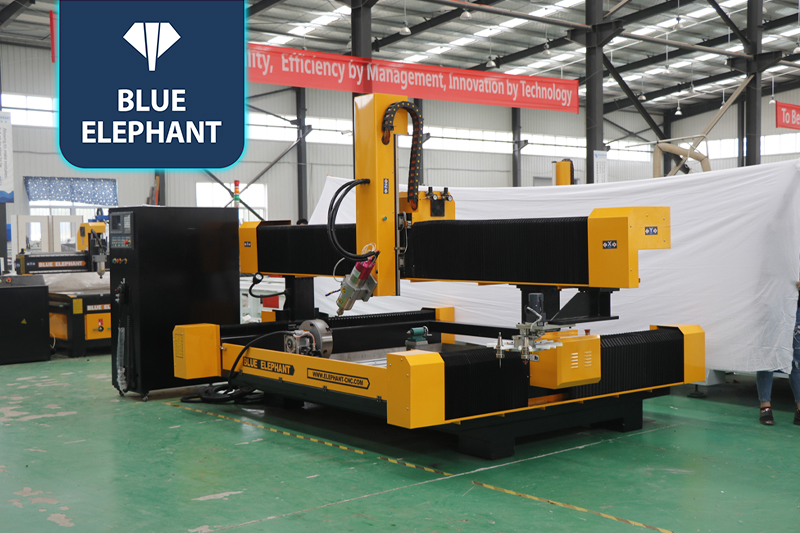

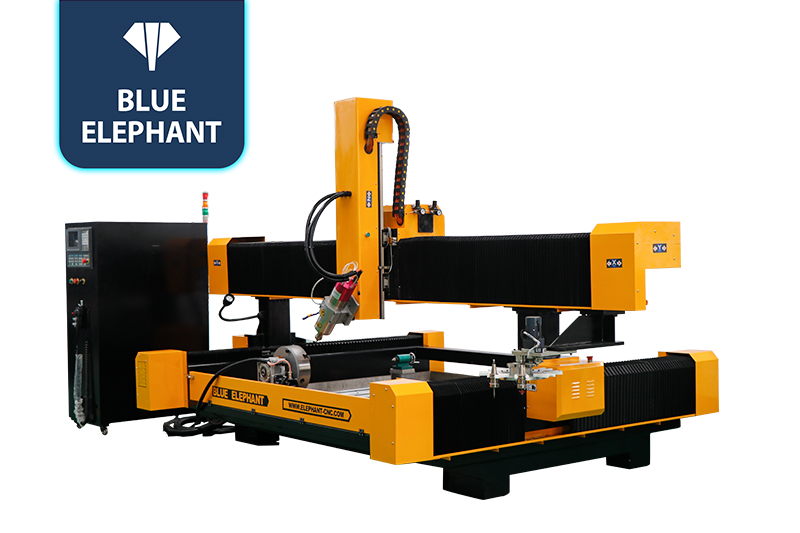

Best Rotary Axis ATC 3D Stone Carving Machine for Sale in Switzerland, Korea, Cameroon

☆Distinguished from other stone CNC routers, this ATC stone CNC machine was designed with a carousel automatic tool changer. Different knives installed in tool holder, which can greatly promote the working efficiency.

Stone Engraving Machines Video

Features

  • 2100x1300mm effective working table size is big enough to process large stone plates. Moreover, the worktable size can be costomized according to customers’ needs.
  • Cycloidal pin wheel precision reducer can swing from -90 degree to +90 degree. It has high transmission accuracy and torsional stiffness.
  • 1.5L automatic lubrication system can save labor, improve operational efficiency, and prolong the life of lubricated components.

Parameters

Model ELECNC2113ATC-4A
X,Y axis travel 2100*1300mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc.
Z axis travel 600mm, option: 500mm, 600mm, 700mm, etc.
Spindle type 5.5kw ATC water cooling spindle, NBT30, ER32
Inverter type 5.5kw

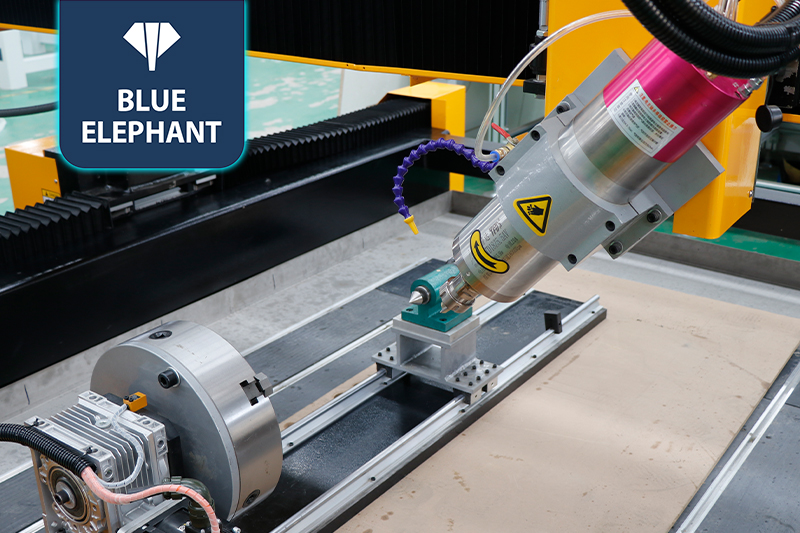

The 4th axis Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness
Can swing from -90 degree to +90 degree
Tool magazine Carousel type auto tool changer
Tool holder with collet NBT30,ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC /LNC controller
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Stainless work table
Linear guide Taiwan Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool Calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Cooling system Water cooling
Compatible software Powermill, UG, Alphacam, Fusion 360, etc.
Command language G Code & M Code
Traveling speed 40m/min
Working speed 0-20m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.
