High Performance ATC Rotary 4 Axis CNC Wood Router for Sale in Phoenix, Arizona at Affordable Price

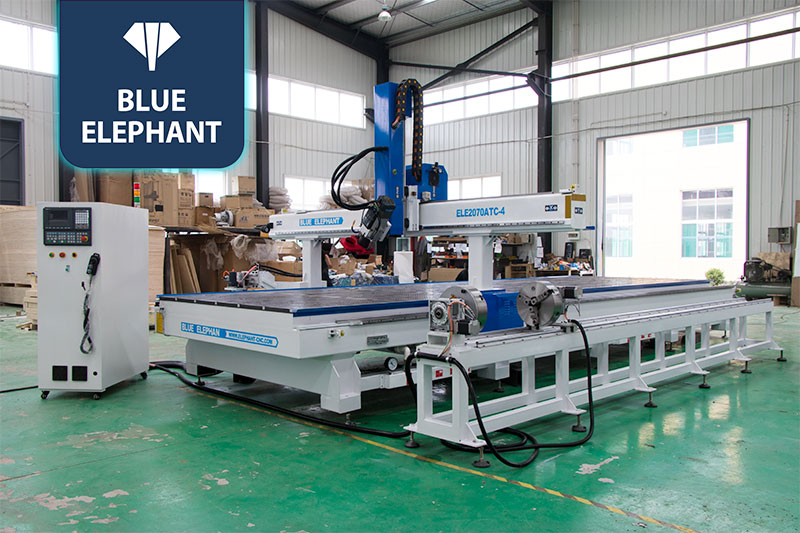

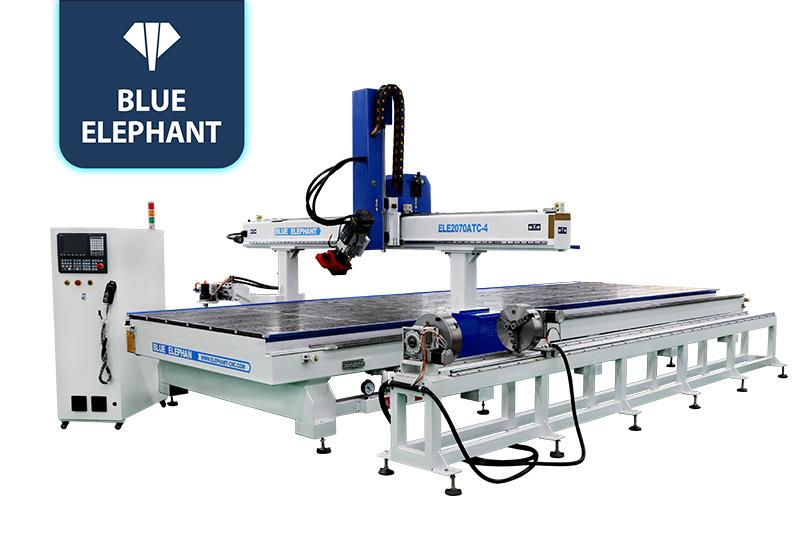

☆This is a custom 4 axis CNC router machine with an automatic tool changing function and a separate rotary device. Its working size is 2000x7000mm, good at processing large-sized wooden boards for mass production. Besides, the 4 axis spindle and rotary device enable it to realize 3D processing.

Rotary Axis CNC Router Machines Video

Features

  • This CNC router machine has a custom big working size of 2000x7000mm, suitable for processing large-sized wooden boards for various personalized products.
  • Both the rotary spindle and the rotary device can process three-dimensional workpieces automatically and precisely.
  • The separate rotary device is suitable for the machine when its Y-axis travel is larger than 2000mm and rotary device diameter is larger than 300mm.

Parameters

Model ELECNC-2070ATC-4
Color White and Blue (customizable)
Effective Working Area 2000*7000*400 mm
Working Voltage 380V, 3Phase, 50Hz
Control system SYNTEC Control System
Spindle Italy HSD 9KW Air Cooling Spindle
Inverter 11kw Delta Inverter
Motor & Driver Japan YASKAWA Motor and Driver 1Kw
Lubrication System Auto Lubrication System
Gantry Structure Gantry Moving
Table Surface T-slot and Vacuum Working Table
Transmission X,Y Rack and Pinion Drive, Z Taiwan TBI ball Screw

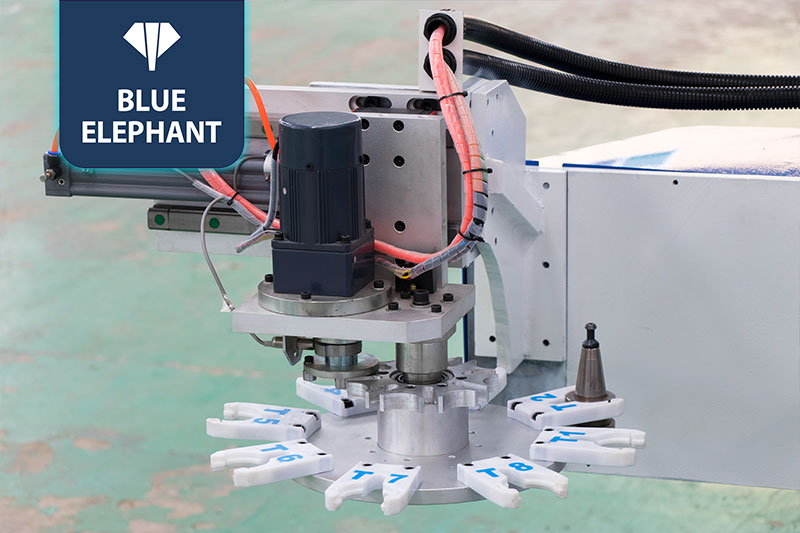

Tool Sensor Carousel Tool storage 8pcs Tool Storage
Structure New Type Thicker and Bigger Heavy Duty Welded Frame and Gantry

Application

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
