Auto Tools Changing 4 Axis Woodworking ATC CNC Router in Calgary, Alberta, Canada

☆Equipped with a rotary spindle and automatic tool changer for cnc router, the high-efficiency C N C router achieves the automatic processing of the left, top and right side of a work piece. Because of the vacuum table with strong adsorption capacity, the sample can be firmly fixed on the table during processing.

ATC CNC Router Machines Video

Features

  • Equipped with rotating spindle, it realizes automatic processing on the left, top and right side of the workpiece, which is more functional and powerful.
  • Due to the strong adsorption capacity vacuum table, the sample can be firmly fixed on the table during the processing.
  • Its high Z axis travel also helps the CNC machine carve thick or tall 3D parts.

Parameters

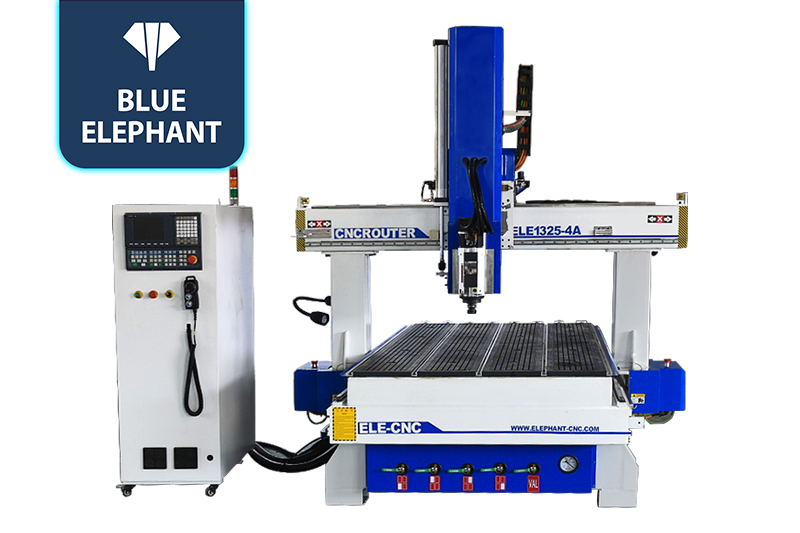

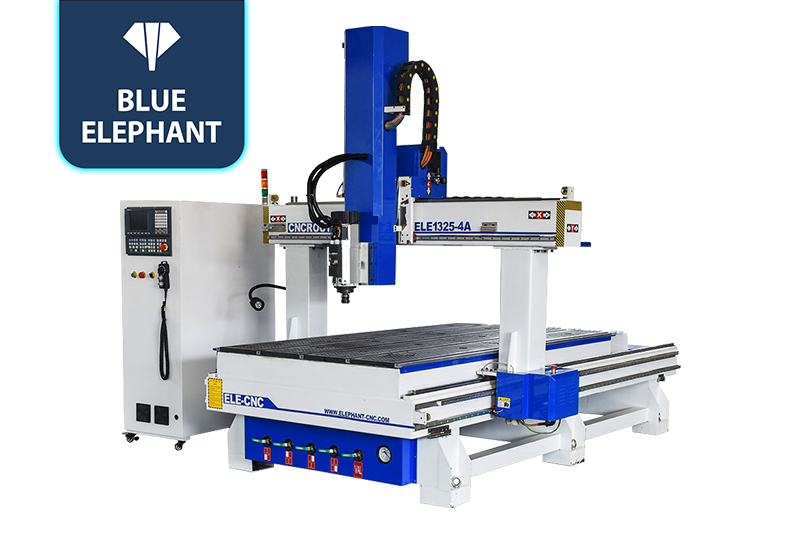

Model ELECNC1325ATC-4A
X,Y axis travel 1300*2500mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc.
Z axis travel 400mm, option: 500mm, 600mm, 700mm, etc.
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
The 4th axis Spindle swing from -90 degree to +90 degree

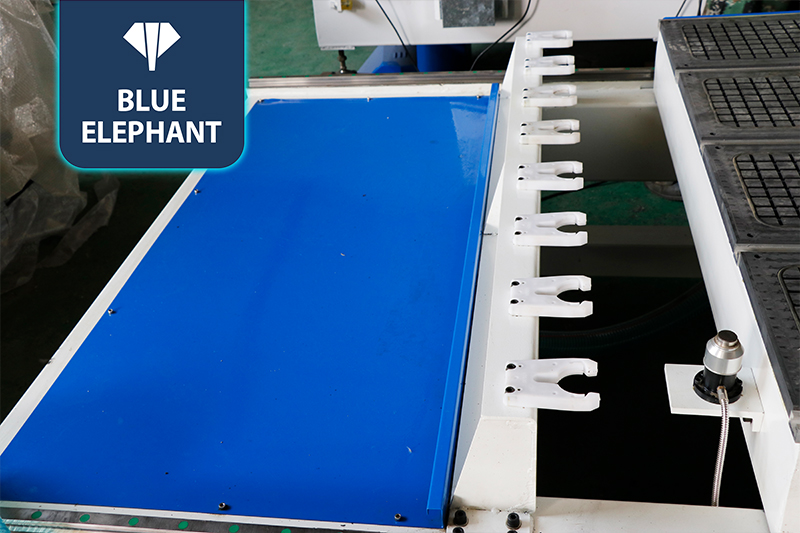

Tool magazine Linear type auto tool changer
Option: carousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC /LNC controller
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. Option: 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw

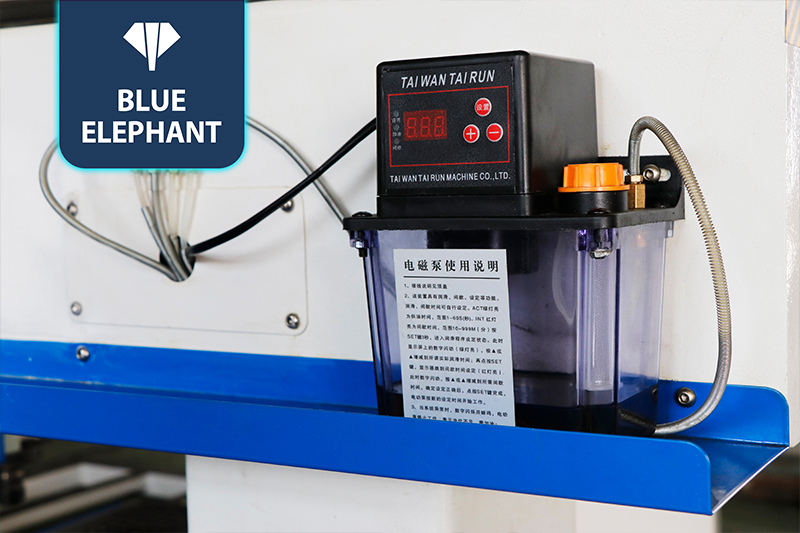

Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Powermill, UG, Alphacam, Fusion 360, etc.
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure ≥0.8MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
