Great Advertising ATC CNC Wood Router with Oscillating Cutter and CCD for Sale at Cost Price in Senegal, Serbia, Albania
☆This is the best CNC router machine for advertising users. The CNC router spindle and the oscillating cutter can process most non-metal materials. In addition, the CCD system helps detect the images and cut irregular shapes of printed boards quickly and precisely.
ATC CNC Router Machines Video
Features

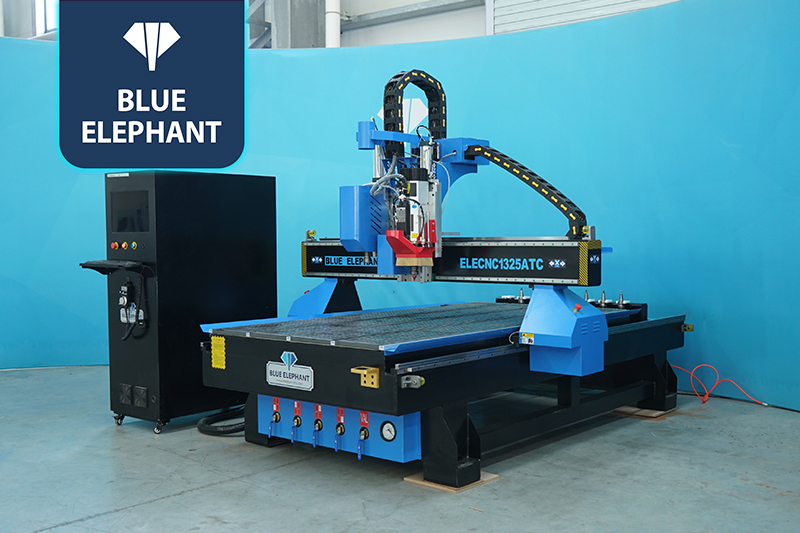

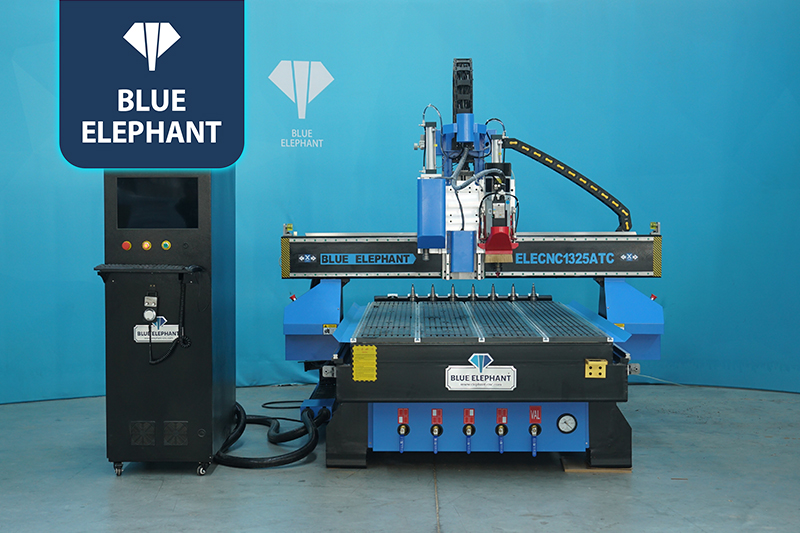

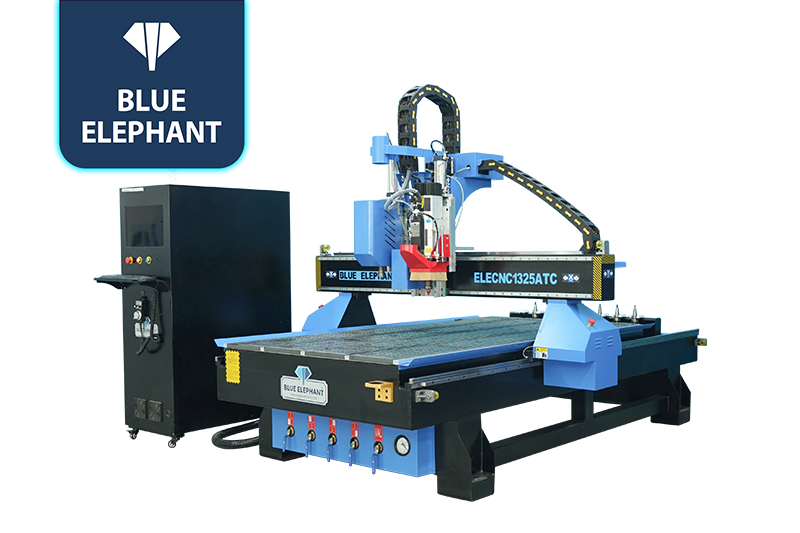

- The 4×8 ATC CNC router machine is equipped with an ATC spindle, a digital cutter and a CCD system for processing most non-metallic materials.
- The digital cutter can cut leather, rubber, cloth, fabric, corrugated board, and other soft materials with fast speed and high precision.
- With the CCD camera, the CNC machine can detect the edges of the patterns on the board and cut them out automatically with excellent accuracy.
Parameters
| Model | ELECNC1325ATC |
| Working area | 1300*2500*200mm |
| Spindle power | 9KW HQD ATC air-cooled spindle, 0-18000rpm |
| CCD | With edge detecting function |
| Oscillating cutter | 3mm amplitude |
| Voltage | 380V, 3PH, 50Hz |
| Tool magazine | Linear type tool magazine with 8 tools |
| Inverter | Fuling inverter |
| Control system | Domestic Xingduowei Vc400T control system |
| Motor and driver | Leadshine servo motors and drivers |
| Working Table | T-slot & vacuum working table |
| Limit switch | Japan OMRON limit switch |
| Frame structure | Square steel tube |
| Linear guide | Taiwan linear guide rails |
| Reducer | Shimpo |
| Lubrication system | Automatic lubrication system 1.5L |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
Application
The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, it can process various wood, plastics, acrylic, soft metals and composites. Besides, the oscillating cutter can cut various carbon fiber, leather, PVC, glass fiber, fiber cotton, prepreg cloth, aramide fiber, ceramic fiber, XPE material, silk coil, silica gel, rubber, acrylic, KT board and other flexible materials.
