Best Selling 4th Axis CNC Router with ATC for Sale at Cost Price in Saint Kitts and Nevis, Ecuador.

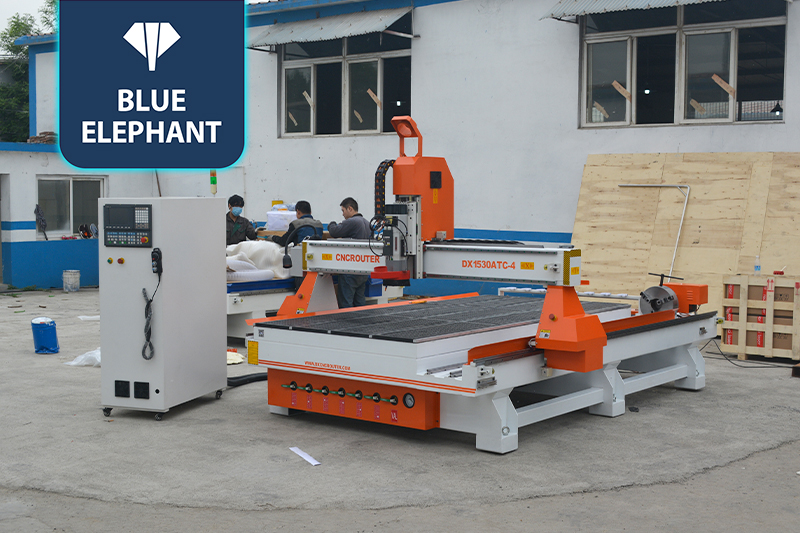

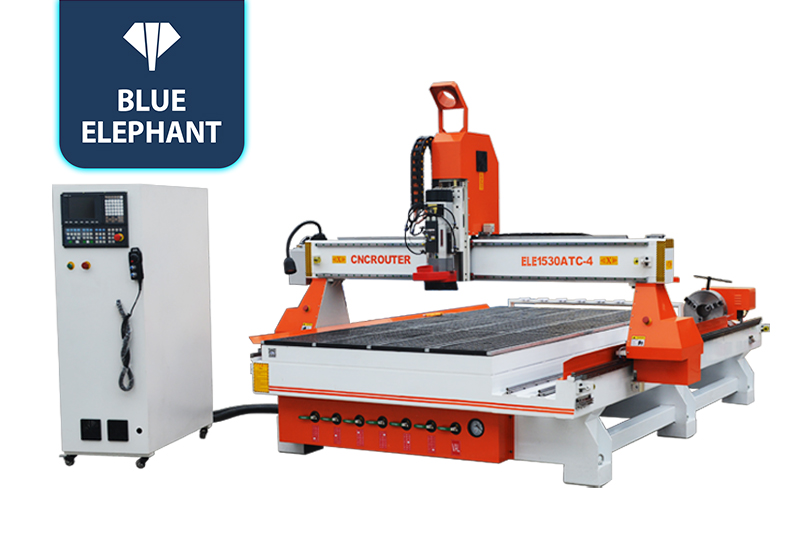

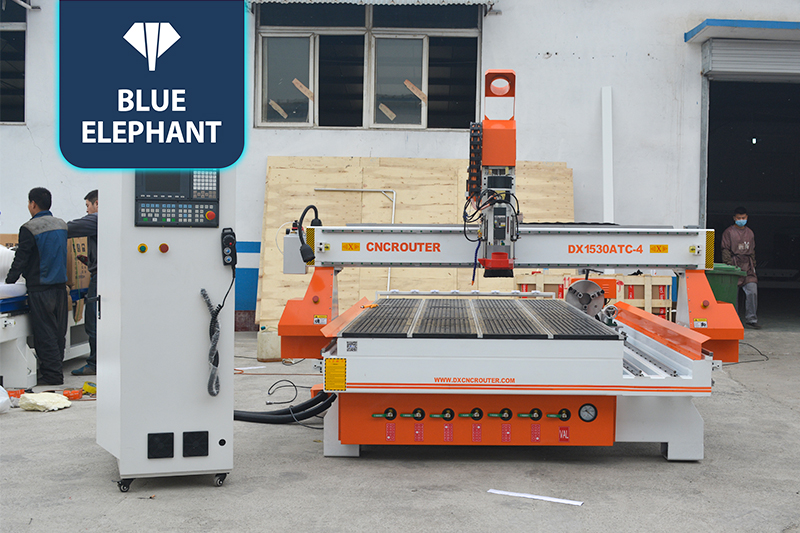

☆This rotary axis CNC router machine with an ATC function is quite popular with furniture makers. It has a rotary device to process cylindrical workpieces, such as table legs, chair legs, handrails, columns, wood statues, etc. Besides, the ATC function can help realize various complex designs on wooden boards.

Get Details & Prices

4 Axis CNC Router Machines Video

Get More Videos

Features

Equipped with a 9kW air-cooled spindle, this CNC machine can complete powerful cutting and engraving work with fast speed and high accuracy.

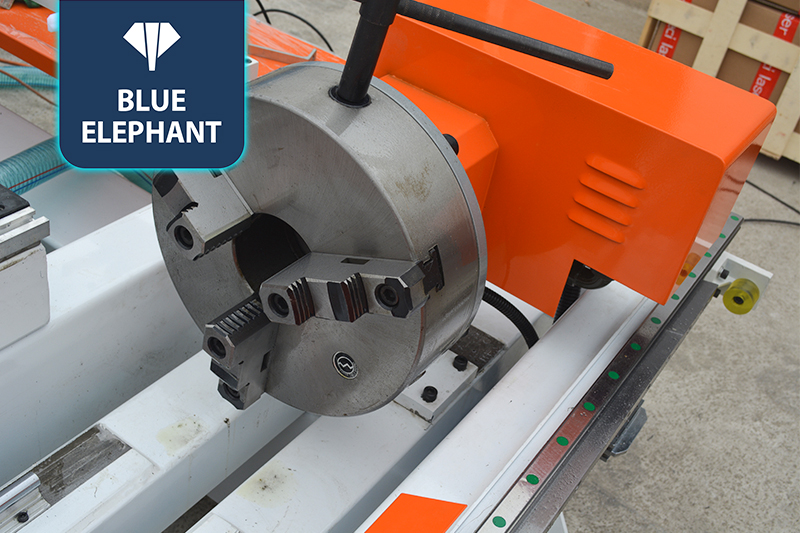

The rotary device is designed for carving and engraving cylinders, square sticks, rods, and other cylindrical workpieces.
The vacuum worktable and automatic tool changing function help reduce human labor and improve work efficiency.

Parameters

X,Y,Z Working Area	1500x3000x200mm
Table Size	1500×3000mm
Table Surface	Vacuum and T-slot working table
Frame	Welded Structure
X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
Z Structure	Hiwin Rail Linear Bearings and TBI Ball Screw
Max. Power Consumption	(Without Spindle) 3.2Kw
Spindle Power	9kw Italy HSD ATC air cooling spindle
Spindle Speed	0-24000RPM
Drive Motors	850W Japan YASKAWA servo motor
Working Voltage	Working Voltage: 380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)
Command Language	G Code
Operating System	Taiwan SYNTEC 6MB control System
Computer Interface	USB
Rotary device	300mm diameter*2500mm length
X,Y Resolution	<0.01mm
Software Compatibility	Type3/UcancameV9 Software, (Option: Artcam Software)
Running Environment Temperature	0 – 45 Centigrade
Relative Humidity	30% – 75%

Get More Parameters

Application

Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
