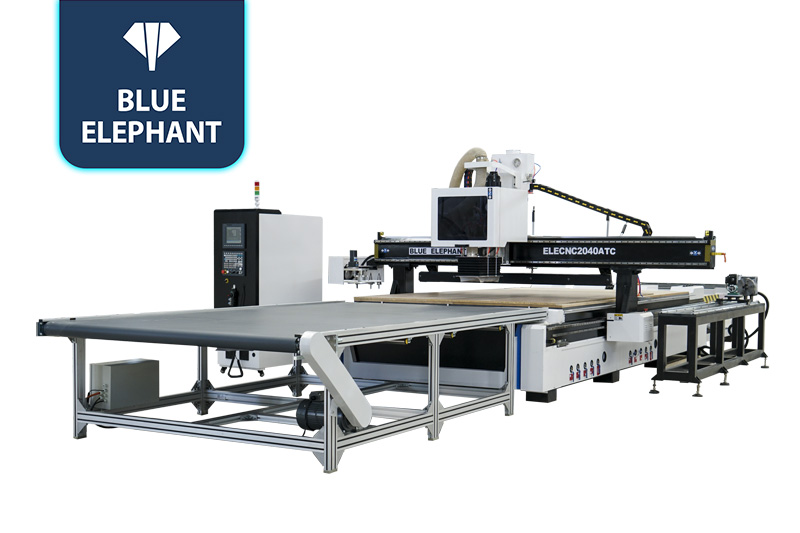

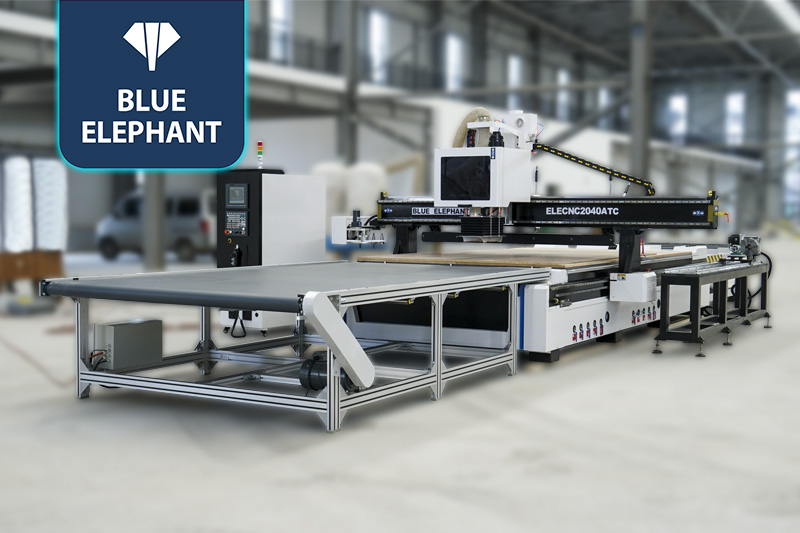

Popular CNC Router Nesting Machine with Auto Loading and Unloading for Purchase in Lithuania, Samoa, Peru

☆With a C axis aggregate head, this CNC nesting machine can saw wooden boards with a saw blade in any angle. The independent rotary device is convenient and flexible to use to process various cylindrial workpieces. This wood nesting machine is a perfect choice for furniture makers.

Nesting CNC Machines Video

Features

  • The aggreated head on the C axis of this nesting CNC machine can saw panels at any angles, meeting the cutting demands of various custom furniture.

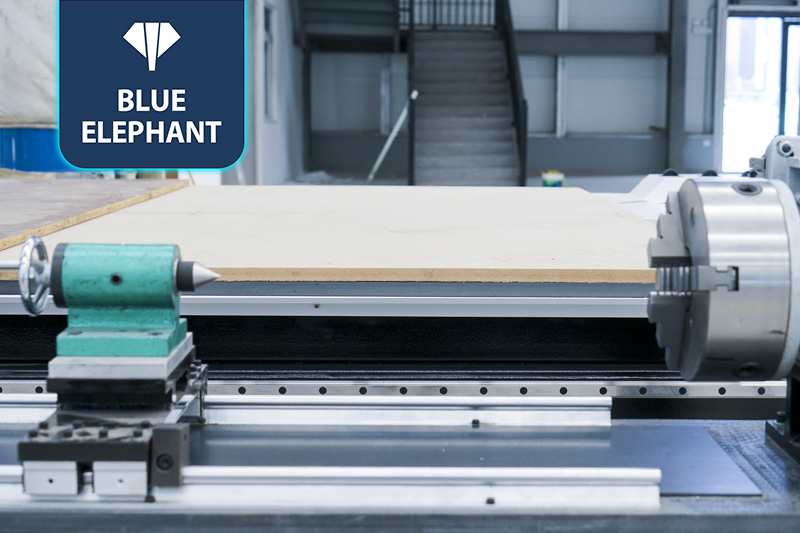

  • It is equipped with an independent and parallel rotary device, which enables this machine to engrave and carve cylinders, sticks, rods, and other cylindrical workpieces.

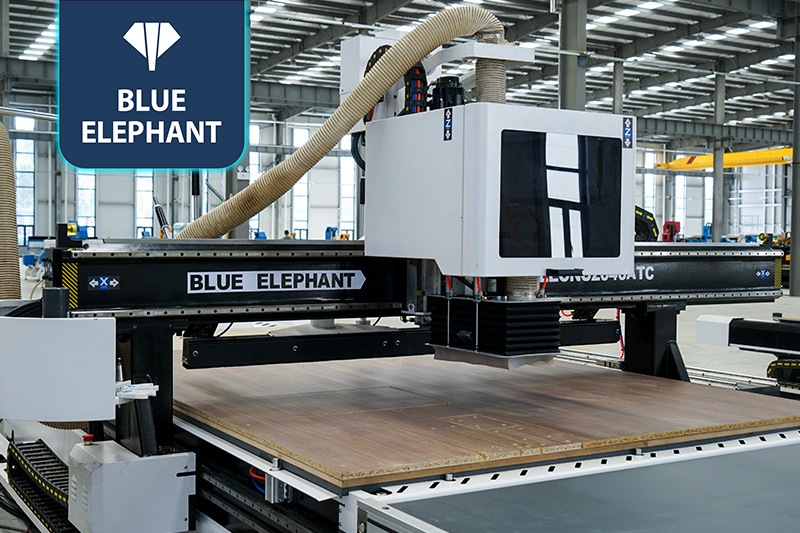

  • Automatic loading and unloading platforms together with the ATC function improve working efficiency greatly.

Parameters

Items Parameter
Model ELECNC-2040ATC
Working area 2000x4000mm
C axis+aggregate head Italian HSD C axis with an aggregate head
Spindle Original ATC 9.6KW Italy HSD spindle
Spindle speed 24000RPM
Motor and drive Japan YASKAWA 850W servo motor and 1000W drivers
Control system Taiwan SYNTEC 21MA-E control system
Inverter Taiwan Delta 11KW
Reducer Japan Shimpo reducer
Machine Frame New type thicker and bigger heavy duty
Working table Entire vacuum work table
Tool Magazine 8 pieces with Carousel Tools Changer
Cooling System Air cooling
Lubrication system 1.5L Automatic lubrication system for rails
Tool sensor Automatic tool sensor
Voltage 380v 3ph 50hz

Application

It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.

atc-cnc-router-sample22_1641781803
atc-cnc-router-sample137
atc-cnc-router-sample126_1643074727
sample2_1641454929
