Top-ranked Auto Feeding Wood C N C Machine Buy CNC router at Cost Price for Hot Sale

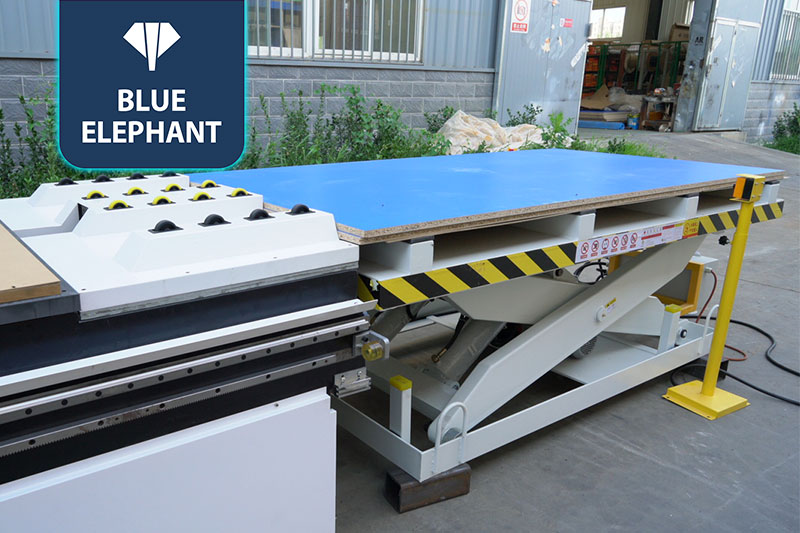

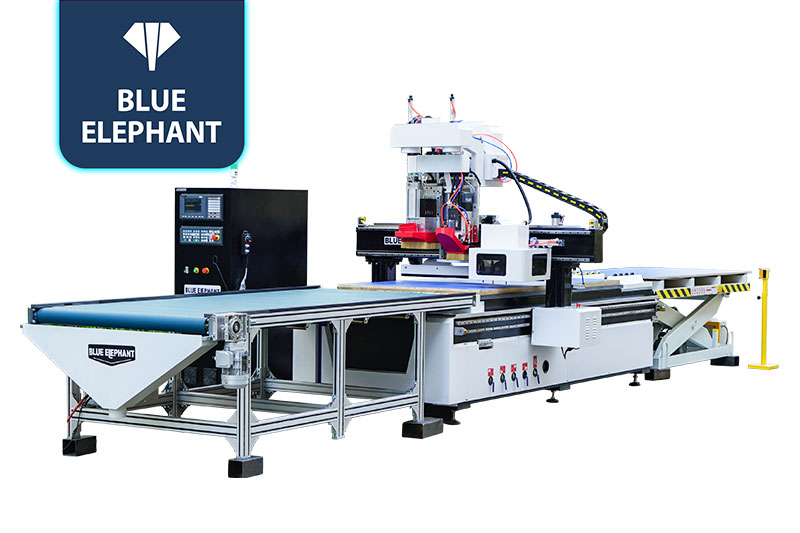

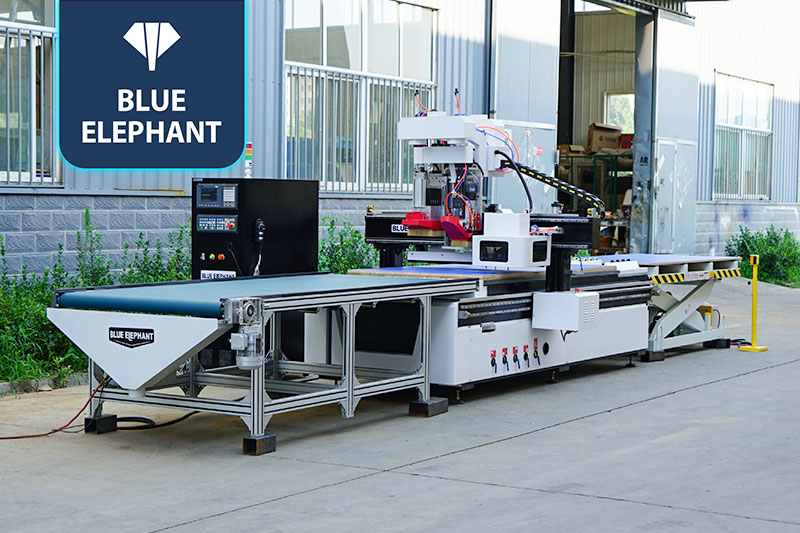

☆ This is an automatic loading and unloading nesting cnc router machine for mass production of cabinets, wardrobes, shelves, doors, and other furniture. It can improve working efficiency by the automatic tool changing function, auto loading and loading, and auto drilling.
Features
- Equipped with an imported 9+3+1 vertical drill bank, it can meet various vertical drilling requirements with high precision.
- It is convenient and fast to change tools automatically with a disc type tool magazine mounted beside the spindle.
- Syntec control system is easy to learn and operate with a friendly human interface.
Parameters
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Delta |
| Drilling bank | Italy 9+3+1 vertical drills |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC controller |
| Driving system | 850WJapan YASKAWA AC servo driverand 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy-duty body with quenching treatment |
| Worktable | Vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide 25mm |
| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| compatible software | Artcam,Alphcam,Type 3,Ucancam,Aspire,etc |
| CommandLanguage | GCode&MCode |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| WorkingAccuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Other | Automatic labeling system |
Application
It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
