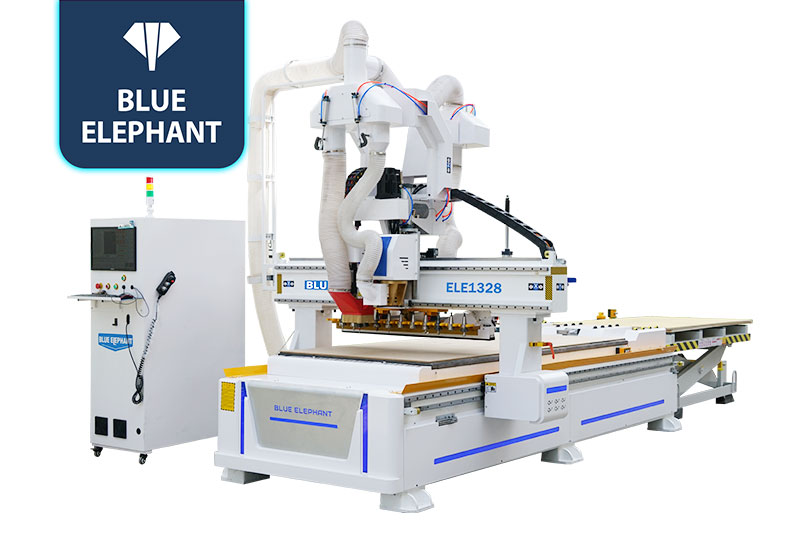

Best Selling ATC Nesting Machine CNC Router for Purchase at Favorable Price in U.K., Dubai, Senegal
☆This cabinet making machine is an excellent choice for making modern furniture with invisible connectors. It has a specific saw blade spindle to make invisible parts slots and grooves. Besides, optional automatic loading and unloading platforms can be selected to improve work efficiency and save labor.
Features

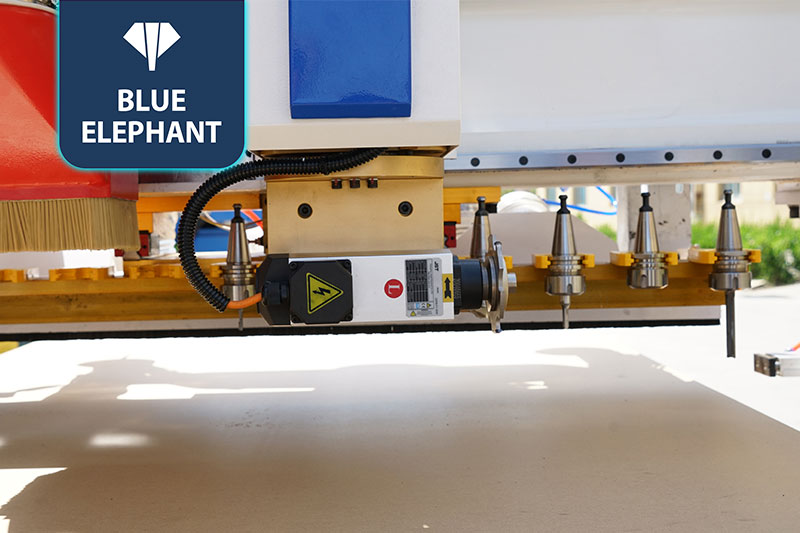

- The saw spindle is specially designed for making slots and grooves for the invisible connectors, such as biscuit joiner.

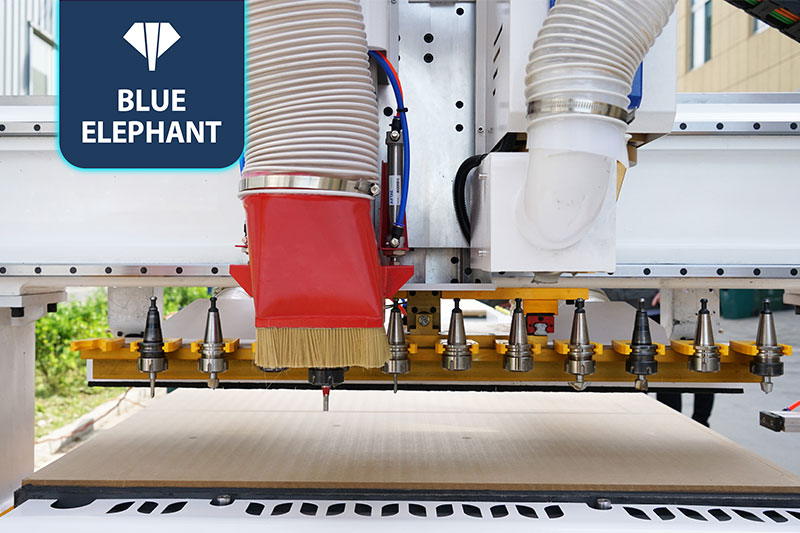

- Linear tool magazine is mounted under the gantry, which is fast and convenient to change tools automatically during the process.
- All components and parts adopt famous brand products, ensuring smooth and stable operation.
Parameters
Machine color | White |
Working area | 1300*2500*200 |
Voltage | 380V/50HZ3P |
Spindle | 9kwHQD Spindle |
Control system: | LNC Control system |
Motor and drive | Leadshine |
Inverter | Hpmont |
Structure | Industrial class square tube strong structure |
Table surface | vacuum working table |
Reducer | New Gear |
Lubrication System: | Auto Lubrication system |
Vacuum Pump | Water vacuum pump |
Limited switch | Japan Omron limited switch |
Dust collector | double bags dust collec |
Positioning cylinder | Y3+X2 |
Tool sensor | Automatic tool sensor calibration |
Control box | Rittal Control box |
Application
Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
