Best Automatic Loading Panel Dividing Saw for Sale in Turkey, Belize, Finland

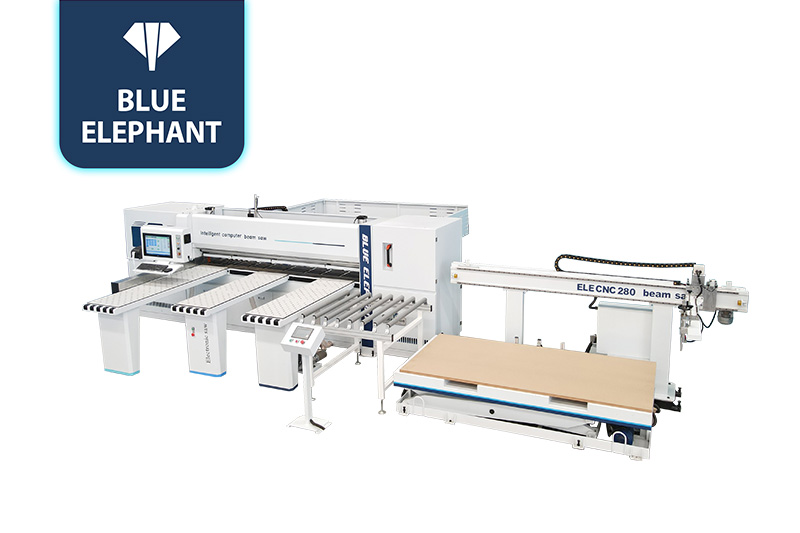

☆It is an intelligent computer panel saw with a front automatic loading platform that widely used in furniture-making, decoration, construction, and other woodworking industries.

Panel Saw Machines Video

Features

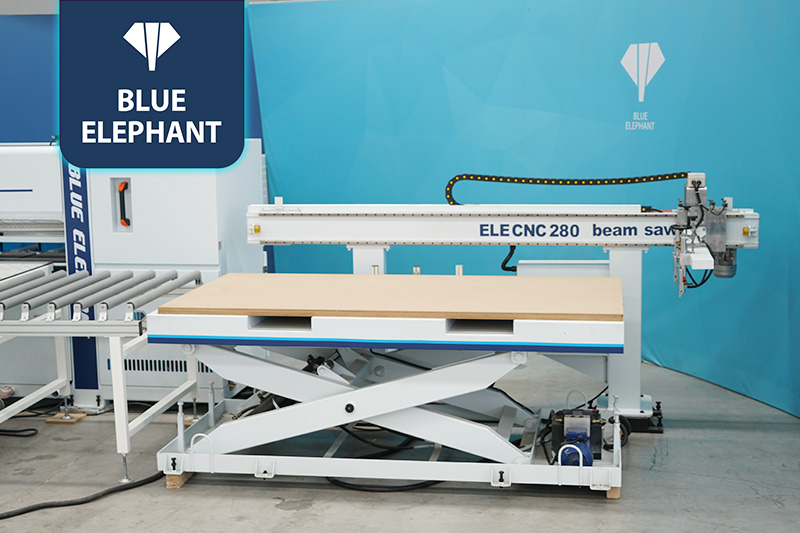

  • With an automatic loading platform, it greatly improves loading efficiency and saves human labor.
  • Equipped with a warning device, it will automatically shut down when a fault occurs.
  • It can edit or simulate saw-cutting programs through compatibility.

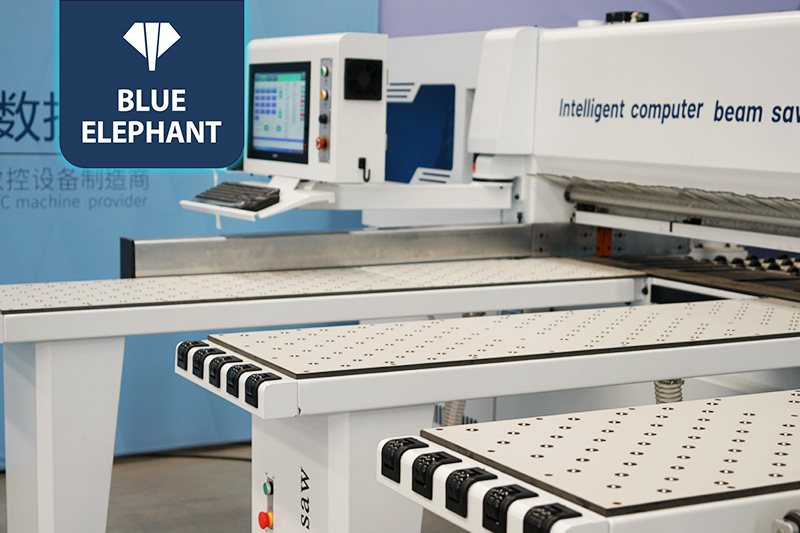

  • Adopts an air-floating worktable, which is convenient for panel feeding.

Parameters

Model ELECNC-280HG
Panel saw dimension 5400x5300x1800mm
Cutting length 2700mm
Cutting thickness 100mm
Main saw blade diameter 350mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 15kW
Groove saw motor 2.2kW
Auto feeding motor 2.0kW (AC, servo)
High-press ventilating motor 3kW
Total power 23kW
Auto feeding speed 100m/min
Air pressure 5-7kg/cm2
Platform height 950mm
Control switch Schneider
PLC Fatek
Converter Invt
Screen Jikowi
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. CNC computer panel saws are more suitable for standardized batch processing, and are the best choice for the production of engineering furniture and office furniture.
