New Design Automatic Tool Changer for CNC Router at Preferential Price to Saskatoon, Saskatchewan, Canada

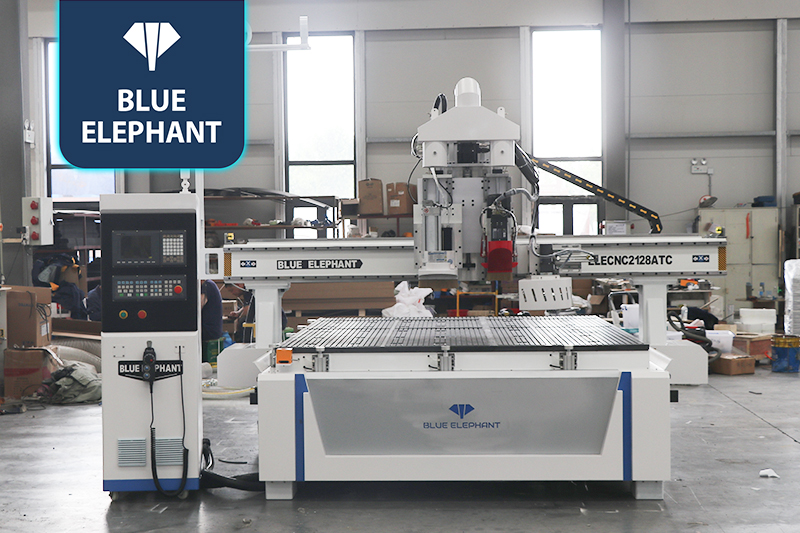

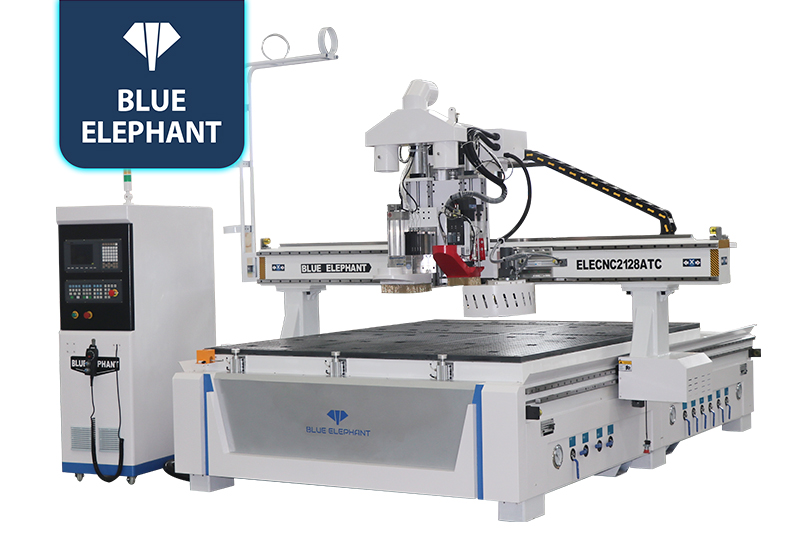

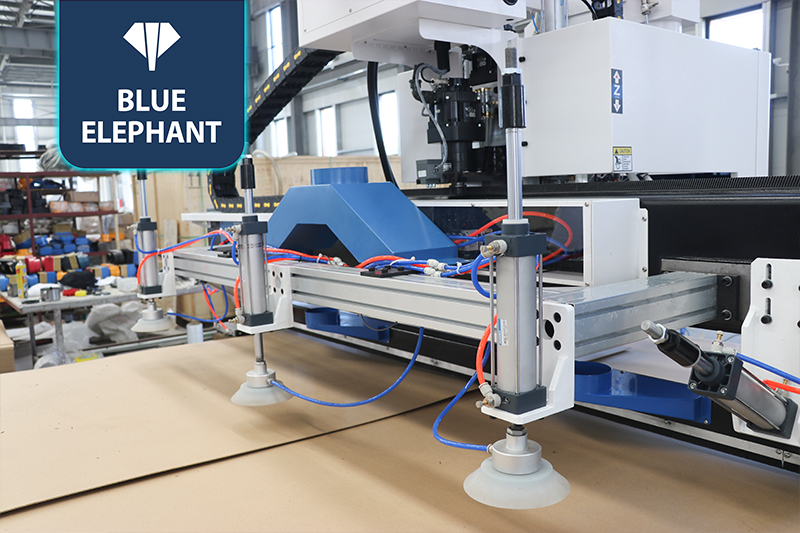

☆As a top rated CNC router with ATC for sale, this machine is widely used in furniture manufacturing like cabinets, shelves, beds, tables and other wooden products. With a optional automatic loading and unloading platforms can save manpower and improve efficiency.
Digital Cutting Machines Video
- Equipped with a rotary tool magazine, it is easy to change tools, reduce human labor and improve work efficiency.

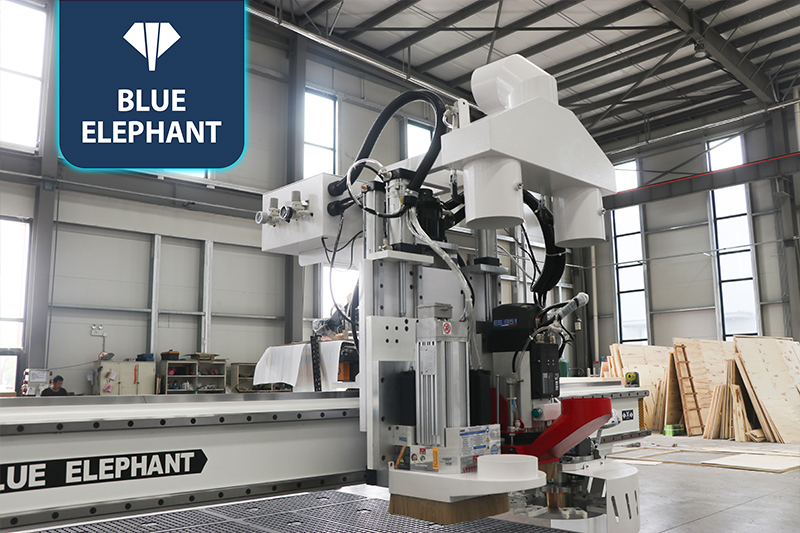

- Equipped with a drill magazine carrying 9 vertical drill bits, it can drill vertical holes automatically and precisely.
- All parts are made of famous brand or high quality products to ensure long service life, safe and reliable operation.
Parameters
| Model | ELECNC2138ATC |
| X,Y axis travel | 2070x3800mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm,etc. |
| Spindle type | 9.6kw Italy HSD ATC air cooled spindle, ES951 |
| Inverter type | 11kW Taiwan Delta inverter |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Drilling bank | HSD 9 vertical drill bank |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, it can process various wood, plastics, acrylic, soft metals and composites. Besides, the oscillating cutter can cut various carbon fiber, leather, PVC, glass fiber, fiber cotton, prepreg cloth, aramide fiber, ceramic fiber, XPE material, silk coil, silica gel, rubber, acrylic, KT board and other flexible materials.
