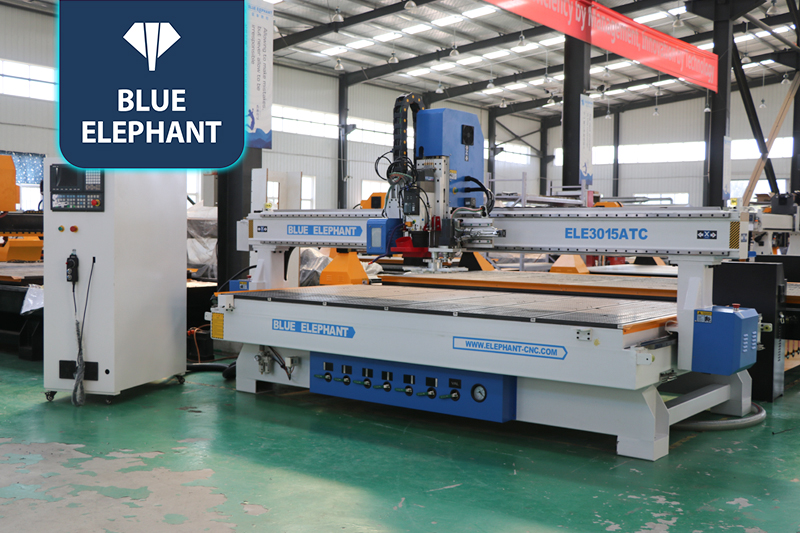

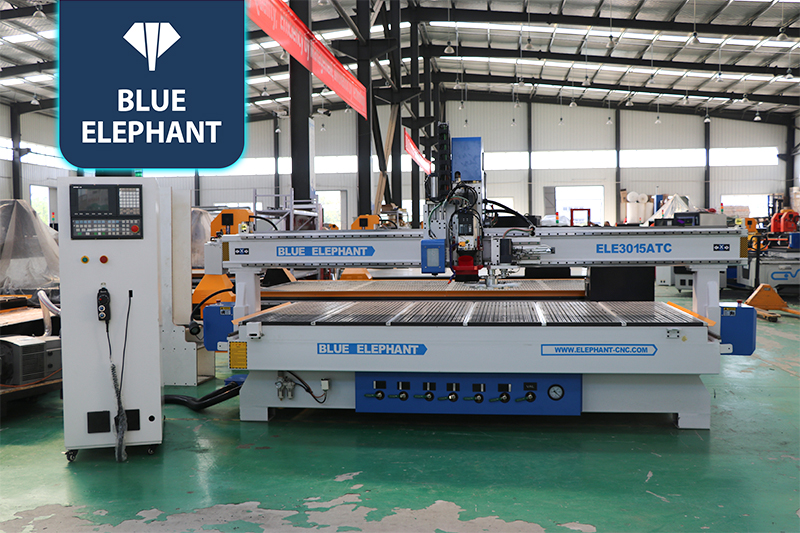

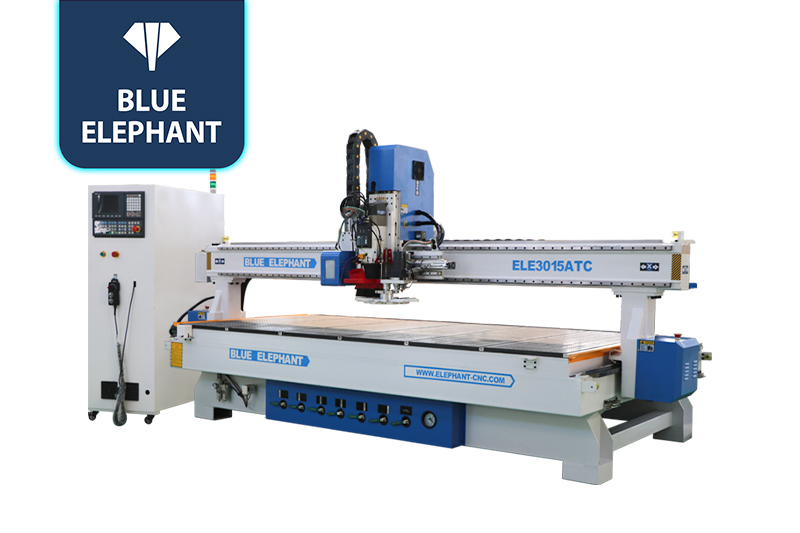

Top Ranked Carousel ATC 4 Axis CNC Wood Digital Cutter for Sale in Nigeria, Dubai, Macau

☆This digital cutting machine is design with a 4 axis rotary spindle, which can swing ±90° to ensure more 3D and 4D requests.

Digital Cutting Machines Video

features

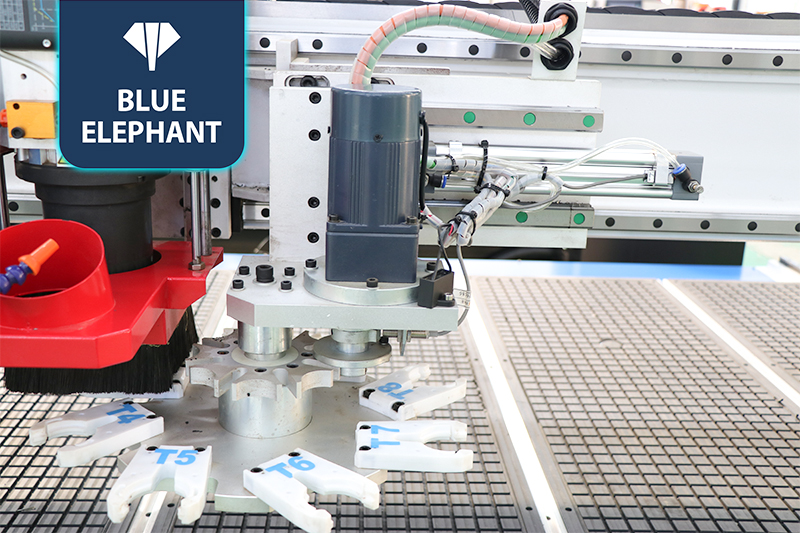

  • Carousel tool changer is more faster to change tool automatically.
  • New type thicker and bigger heavy duty welded steel frame and gantry can gurantee high safety and stability.
  • Germany EOT-3 Oscillating Cutting Knife can be used to process soft materials such as cloth and leather.

Parameters

Description Parameter
Model ELECNC-3015ATC-4A
Tool magazine Carousel type auto tool changer with 8 tools storage
X,Y,Z Working Area 3000x1500x200mm
Table Surface Vacuum and T-slot working table, 6 zones
Gantry structure Steel gantry
Structure New type thicker and bigger heavy duty welded steel frame and gantry.
X, Y Structure Sweden ABBA 25# Linear Square Rail;
Z Structure Sweden ABBA 25# Linear Square Rail and TBI Ball Screw
Spindle Rotary spindle, 9kw HSD spindle, Swing -90°to +90° degree, Germany EOT-3 Oscillating Cutting Knife
Spindle Speed 0-24000RPM
Drive Motors 850w Japan YASKAWA servo motors and drivers, Japan Shimpo reducer
Inverter 11kw Delta inverter
Working Voltage 220V,3phase,60HZ

(or customized)

Operating System Taiwan SYNTEC control system
Computer Interface USB
Machine color White and blue (Can be customized)
Software Artcam
Lubrication system New type Automatic oil lubrication system
Control box Syntec Control box
Vacuum pump 7.5kw vacuum pump controlled by M code command

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
