Top Ranked 2040 Carousel ATC CNC Router with Rotary Device for Sale in Dallas, Texas at Affordable Price

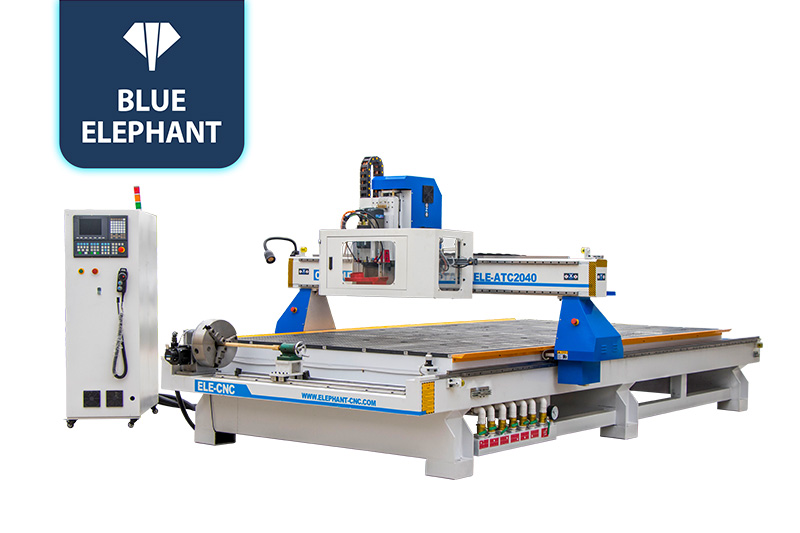

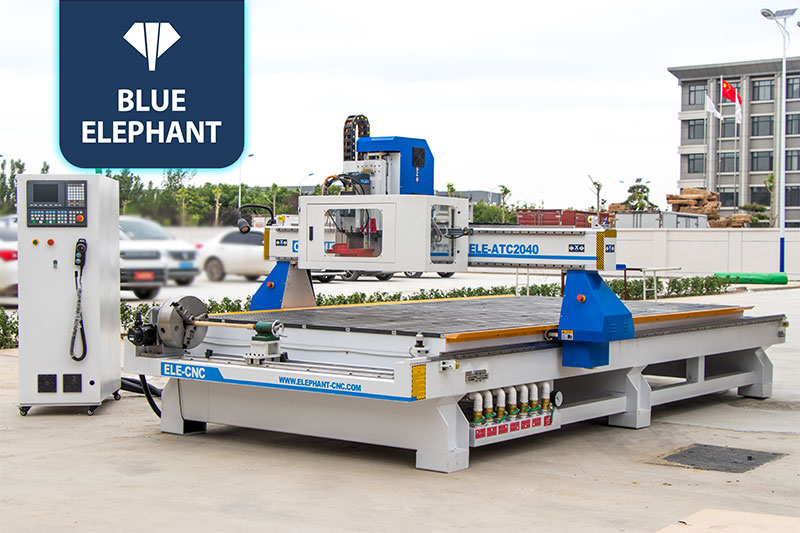

☆This is an automatic tool changing CNC router machine with a rotary device for the production of various furniture. It can process large-sized panels due to its big working size and a variety of cylindrical parts thanks to the rotary device.



Rotary Axis CNC Router Machines Video

Features

  • The large working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.
  • Equipped with a 9kW air-cooled spindle, this CNC machine can complete powerful cutting and engraving work with fast speed and high accuracy.
  • The ATC CNC machine can switch between a large number of tools without manual operation, improving accuracy and efficiency.

Parameters

Description Parameters
Model ELECNC-2040ATC
Working size 2060*4000*200mm
Color White and Blue (customizable)
Working Voltage 380V, 3Phase, 50Hz
Control system SYNTEC control system
Spindle 9kw Italy HSD ATC air cooling spindle
Inverter 11kw Delta Inverter
Motor & Driver 850w Japan YASKAWA servo motor and 1kw driver
Table surface T-slot and vacuum working table
Lubrication system Auto Lubrication system
Automatic tool magazine 12
Gantry structure Gantry moving
Structure New type thicker and bigger heavy duty welded frame and gantry
Transmission X,Y rack and pinion drive, Z Taiwan TBI ball screw
Rail ABBA 25#
Mist cooling sprayer Automatic oil mist cooling sprayer
Vacuum pump 2 sets 5.5kw water circulation vacuum pump   (380V, 3Phase, 50Hz)
Dust collector 1.5kw new type double packet dust collector (380V, 3Phase, 50Hz)
Tool sensor Automatic tool sensor calibration
Rotary device diameter 300mm

Application

Except for the cutting, drilling, pocketing, routing, and other functions that a 3 axis router machine can achieve, it is also good at making cylindrical parts. For example, wood table and chair legs, wood handrails, wood or plaster building columns, 3D statues of wood, rubber, foam, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
