Top Rated 4 Axis Wood C N C Machine for Sale with Affordable Price to Sihanoukvile, Jeddah Port

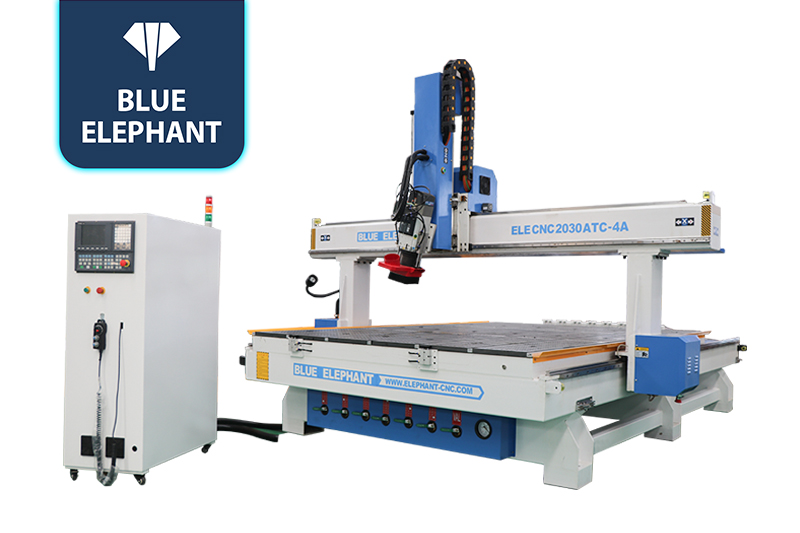

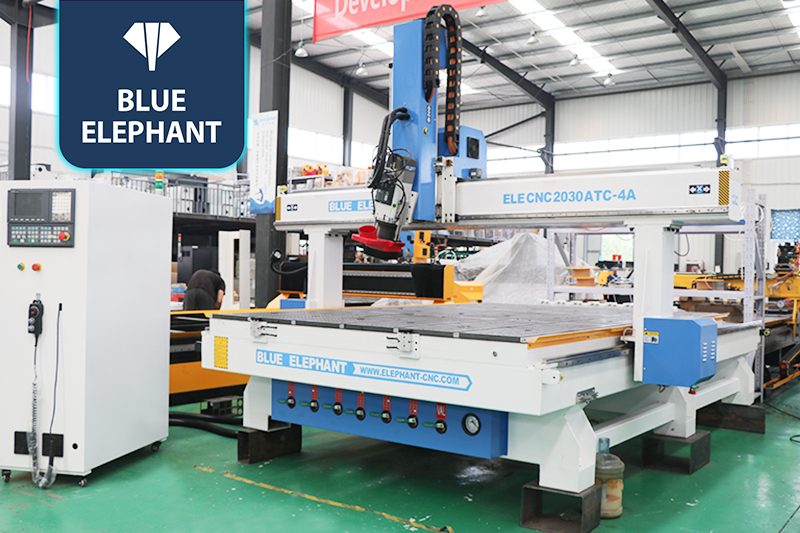

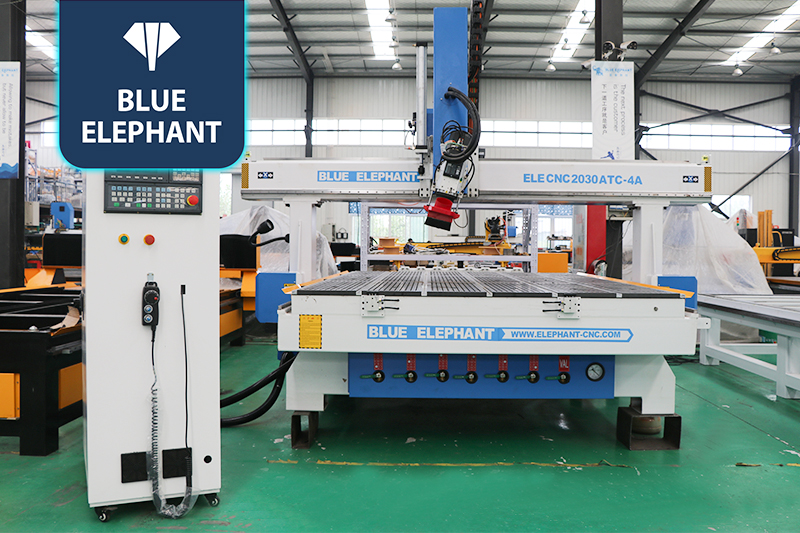

☆The 2030 4 axis wood CNC machine with an automatic tool changer is widely used in the production of wood furniture, crafts, molds, boats, cases, frames, etc. With its rotary spindle, it can also process three-dimensional workpieces with high accuracy.

4 Axis CNC Router Machines Video

Features

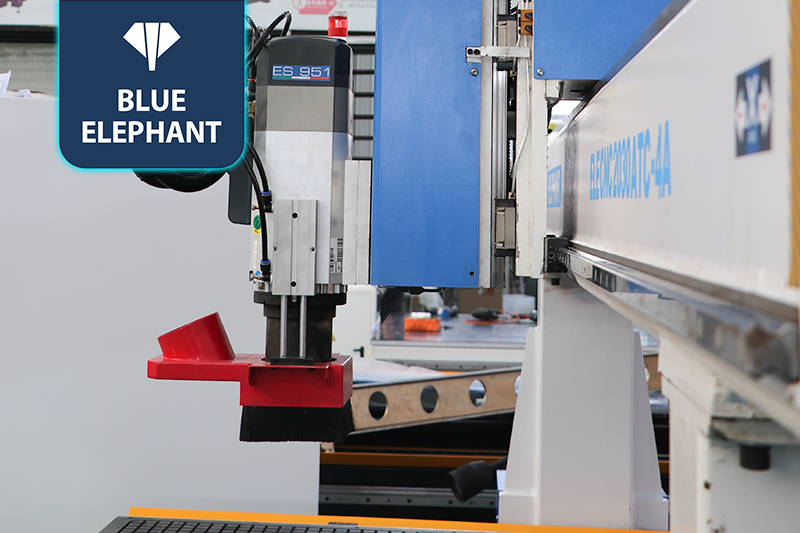

  • The 4 axis CNC router with a swing spindle can process the top, left, and right sides of a workpiece in one operation, reducing clamping times.
  • The large working size of 2000x3000mm can process most large-format wooden panels for various panel furniture production.
  • The machine structure has strong rigidity and high strength, free of deformation and shaking during long-term high-speed operation.

Parameters

Description Parameter
Model ELECNC-2030ATC-4A
X,Y,Z Working Area 2060*3000*400mm
Control system Taiwan SYNTEC control system
Working Voltage 380V 3phase, 50Hz(Option)
Spindle 9kw Italy HSD Air Cooling Spindle
INVERTER 11kw Taiwan DELTA INVERTER
Motor and driver 850W YASKAWA servo motor and 1kw  YASKAWA driver, SHIMPO reducer
Gantry Structure Gantry moving
Table Surface T-slot & vacuum working Table
Table structure New type thicker and bigger heavy duty welded frame and gantry
X, Y, Z Transmission Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis
X,Y, Z Rail Japan THK25# linear guide
Lubrication system Automatic lubrication system
Vacuum pump 5.5KW German BECKER Pump, 380v, 3ph, 50hz
Positioning cylinder 5 cylinders in total; with 2 on X axis, 3 on Y axis
Tool Sensor Auto tool sensor calibration
Wire High soft shield with copper wire to protect against static electricity

Application

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
