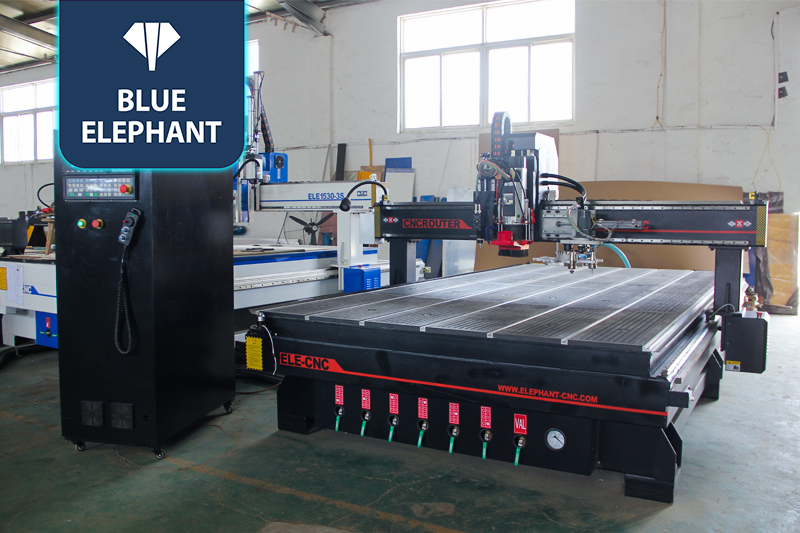

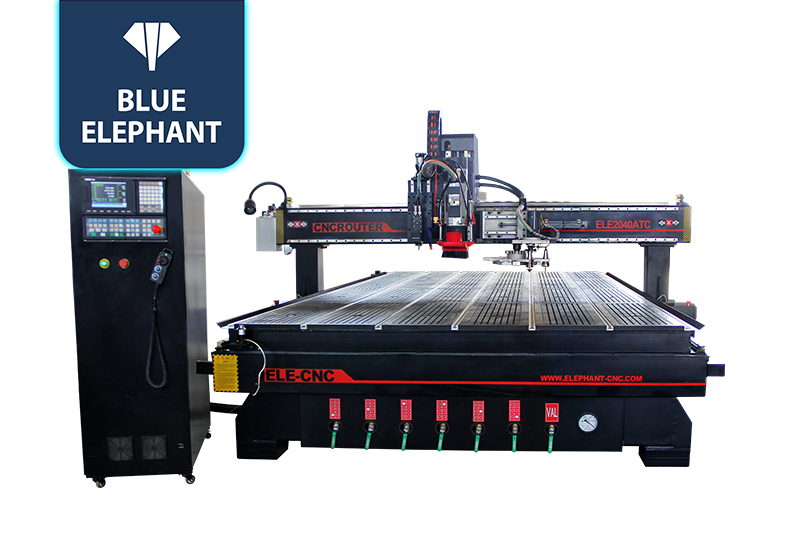

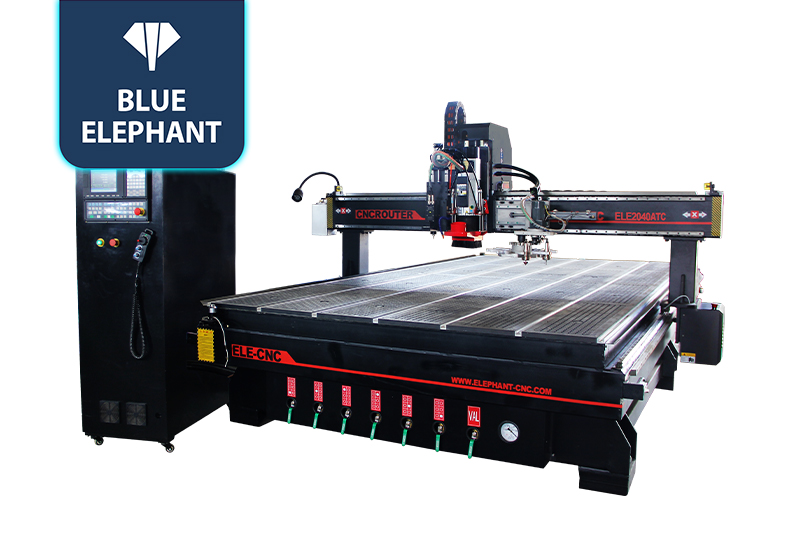

High Speed ATC CNC Digital Cutting Machine for Sale in Ethiopia, Oman, Iran

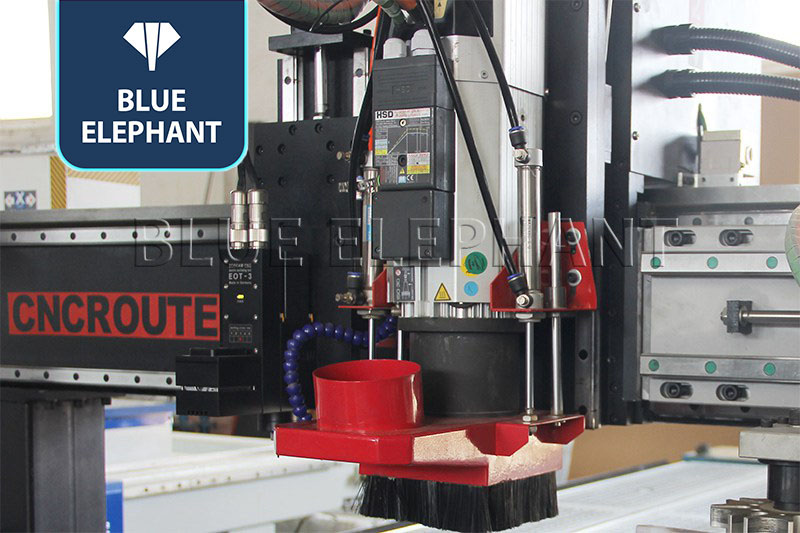

☆This CNC digital cutter is equipped with German EOT-3 Oscillating Knife, which can process a lot of soft materials. And the carousel automatic tool changer can help improve work efficency.

Digital Cutting Machines Video

Features

  • With heavy duty frame and 8-10mm steel gantry, it ensures high processing stability.
  • Carousel tool changer magazine with 8pcs tool storage can complete quick tools changing.
  • Using an automatic oil mist cooling sprayer, which can prolong the machine service life.

Parameters

Descriptions Parameters
Modle ELE2040ATC&EOT-3
Working area 2000*4000*200mm (can be customized)
Working Voltage 380V, 3PHASE, 50HZ (can be customized)
Control System Taiwan SYNTEC 6MB control system
Control box 1.8m high control box
Oscillating knife Germany ECOCAM EOT-3
Spindle 9kw Italy HSD Air cooling spindle
Spindle speed 0-24000RPM/MIN
Tool magazine Carousel type + 8pcs ISO30 tool holders (Linear type for optional)
Motor and Driver 850w Japan YASKAWA servo motors and drivers
Inverter 11kw Taiwan DELTA inverter VFD-B
Structure New type thicker and bigger heavy duty welded frame and gantry
Table surface T-slot and Vacuum Working Table with 6 Zones
Gantry structure Gantry Moving
Lubrication system Automatic lubrication system
Calibration Automatic tool sensor calibration
Mist cooling sprayer Automaitc oil mist cooling sprayer
Transmission X,Y Axis: Helical rack, Taiwan Hiwin/PMI/ABBA 25# Rail Linear Bearing with dust hood protection for Y axis.

Z Axis: Taiwan Hiwin/PMI/ABBA Rail 25# Linear Bearing & Taiwan TBI Ball Screw

Vacuum pump 2 sets 5.5kw water circlulation vacuum pump (380V, 3PHASE, 50HZ)
Command language G Code
Color According to your reference
Applications can process the aluminum, copper soft metal, and so on

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
