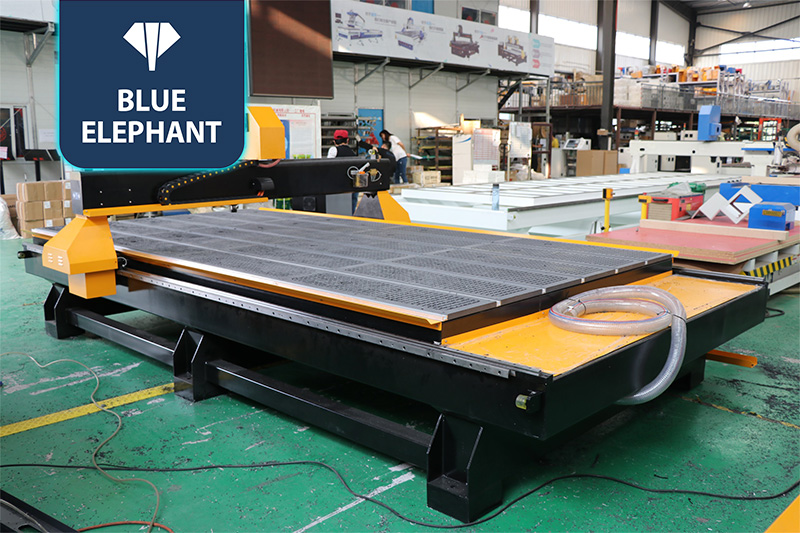

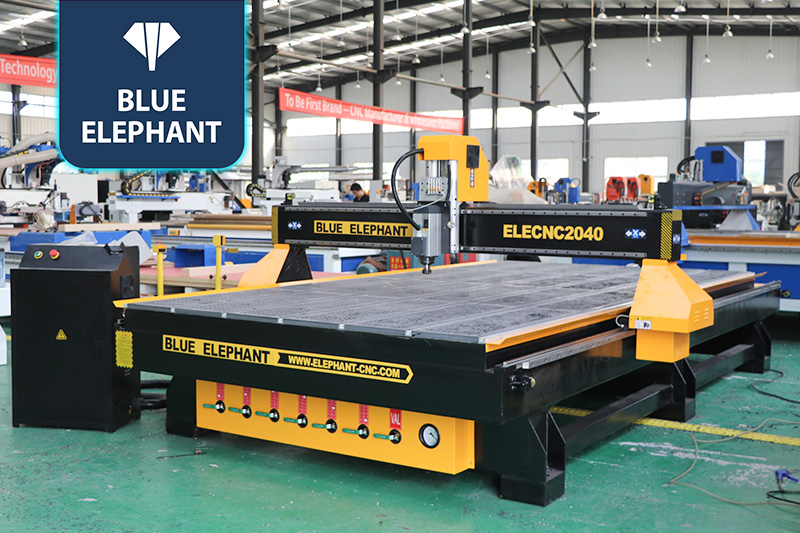

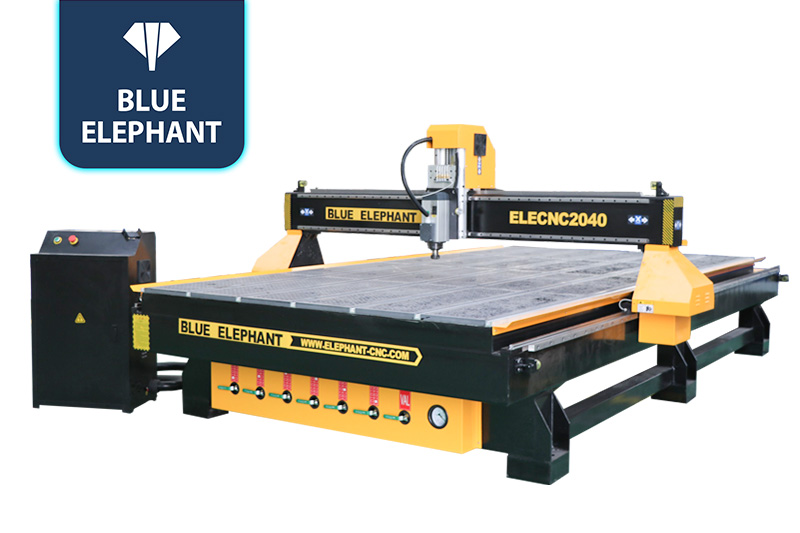

Large 2040 C and C Router Table for Price in Antigua and Barbuda, Saint Lucia
☆It can realize high-speed 2D or 3D cutting and engraving of wood, MDF, door, cabinet, acrylic, etc. If you want to do some baisc woodworking, this type of CNC wood router is an ideal choice.
CNC Router Machines Video
features
- A large table makes it good at 2D/3D wood letters engraving and crafts making.
- Strong machine body make it convenient to process big and heavy carpentry.
- It can meet your various processing requirements without high procurement costs.
Parameters
| Model | ELECNC2040 |
| X,Y axis travel | 2000x4000mm, option: 1300*250mm, 1500*3000mm; 2100*3000mm; etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 6kw Italian HSD air cooling spindle, 18000rpm |
| Inverter type | 7.5kw |
| Drilling bank | Option: Taiwan or Italy 5+4 vertical drills |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Ncstudio DSP A11, option: Taiwan SYNTEC /LNC controller |
| Driving system | Stepper motor and Leadshine driver, option: Japan YASAKWA Ac servo |
| Reducer | Without |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | No need |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
