Top Ranked Nesting CNC Router Machine with a Saw Spindle for Sale at Cost Price to Montreal, Dubai

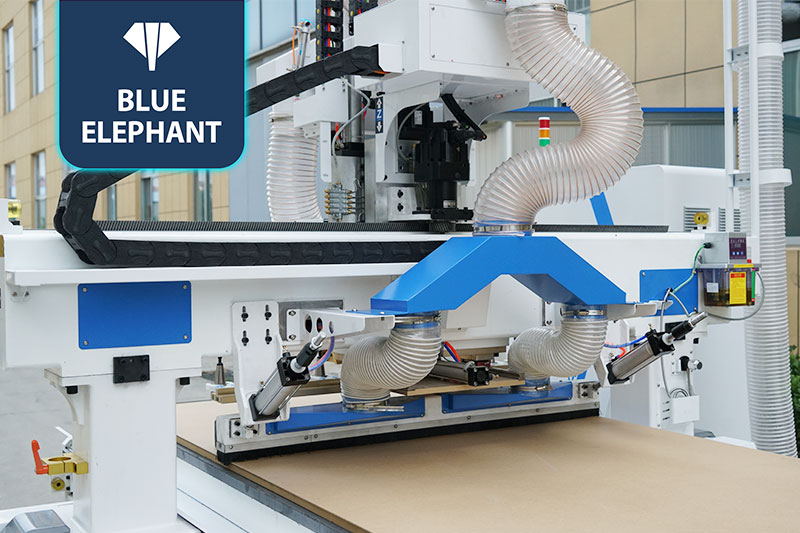

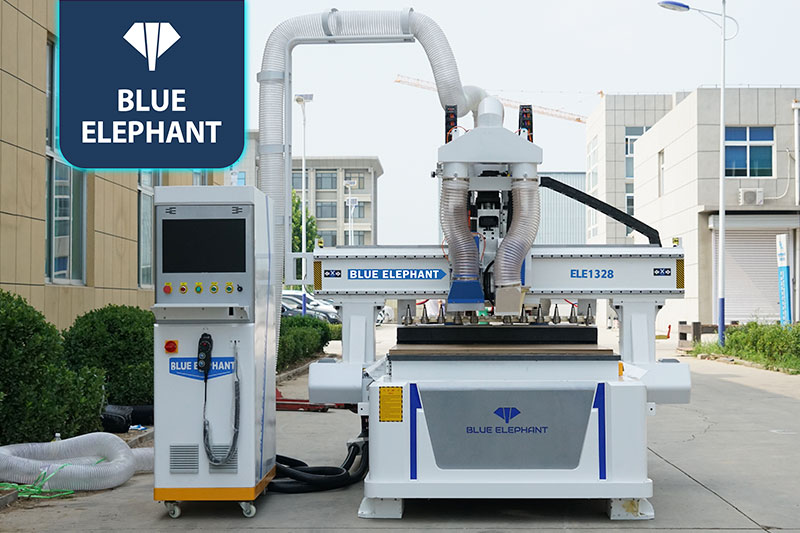

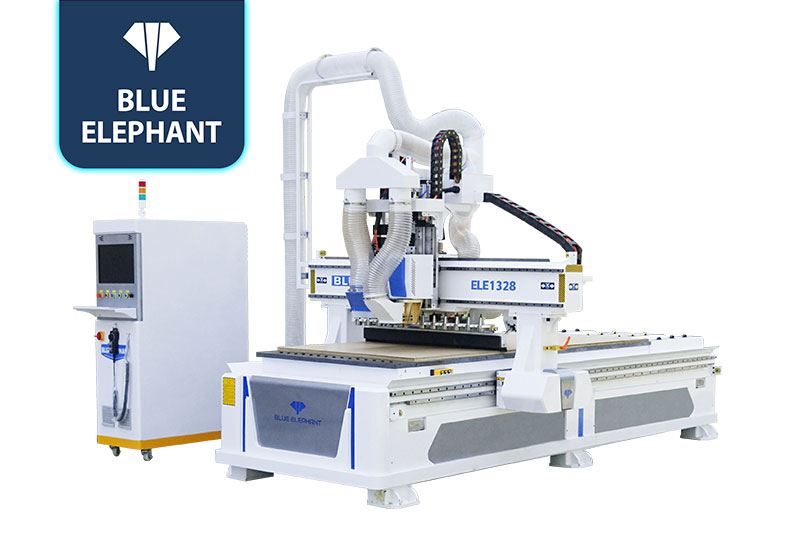

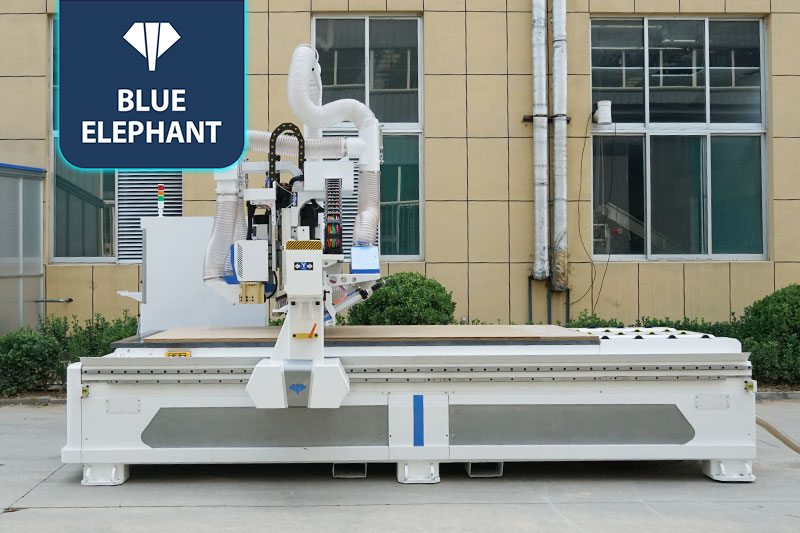

☆This is the most popular nesting CNC machine with the furniture makers for cabinet production, especially the cabinets with invisible parts. It is equipped with two spindles, one for cutting and engraving and the other for making slots for invisible connectors.
Features
- The saw spindle can make slots for lamello invisible connectors for the production of modern furniture, improving work efficiency.
- Its effective working size is 1300x2800mm, perfect for processing the MDF, plywood, melamine, and other wood panels with the common size of 1220x2440mm.
- The heavy-duty steel welded structure ensures good operation stability and prevents the machine from vibrating and deforming after the operation.
Parameters
| Model | ELECNC1328 nesting CNC machine with Lamello cutting saw |
| X,Y axis travel | 1300x2800mm, option: 1500*3000mm; 2000*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm |
| Spindle type | HQD 9.0KW ATC air cooling spindles, ISO30, ER32 Lamello cutting saw |
| Inverter type | 11kw Fulinginverter |
| Tool magazine | 12 pieces Linear type auto tool changer Option: Carrousel type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet:φ4,φ6,1/8,1/2 |
| Control system | Taiwan LNC MW2200 control system |
| Driving system | Leadshine 1300W servo motor and drivers |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy-duty welded steel frame |
| Worktable | Full-page vacuum working table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L Auto lubrication system |
| Tool calibration | Auto tool sensor |
| Cables | Germany Igus cables with CE,UL certificate |
| Compatible software | Artcam, Hisoon, etc |
| Command language | GCode |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
