Economical Fabric Digital Cutting Machine for Sale in Calcutta, Germany, Mexico

☆This CNC oscillating knife cutting machine is good at cutting and engraving soft materials such as leather, carboard, rubber, etc. With no heat and smock generating, CNC knife cutting is safer.

Digital Cutting Machines Video

features

  • Heavy duty body with quenching treatment can ensure good stability.
  • EOT-3 oscillating knife head can process wood, plywood, acrylic, soft metal, foam, etc.
  • Please notice that all the specifications can be customized according to your requirements.

Parameters

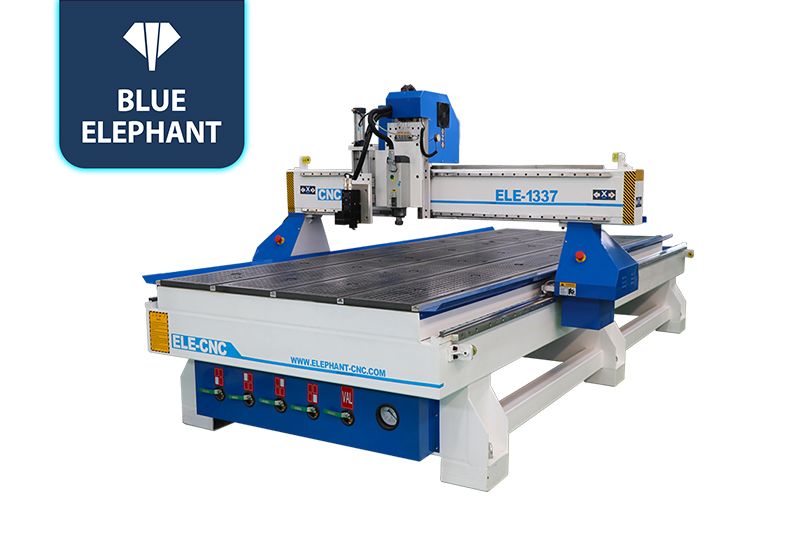

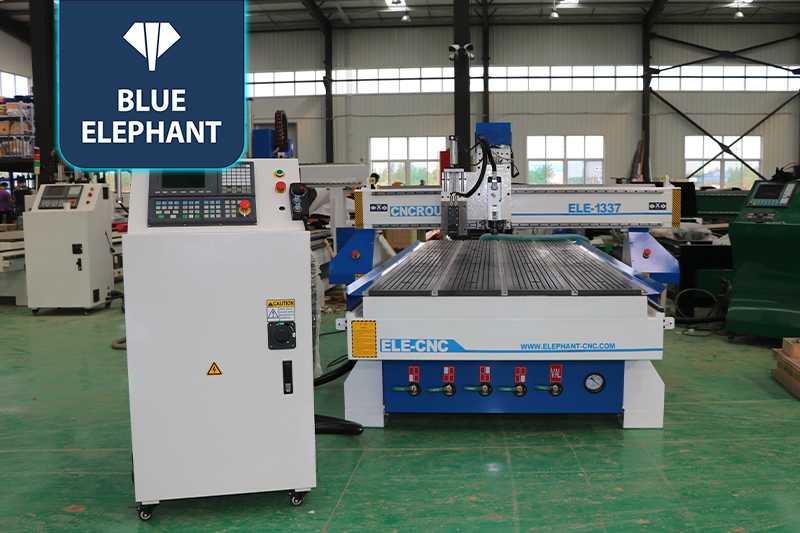

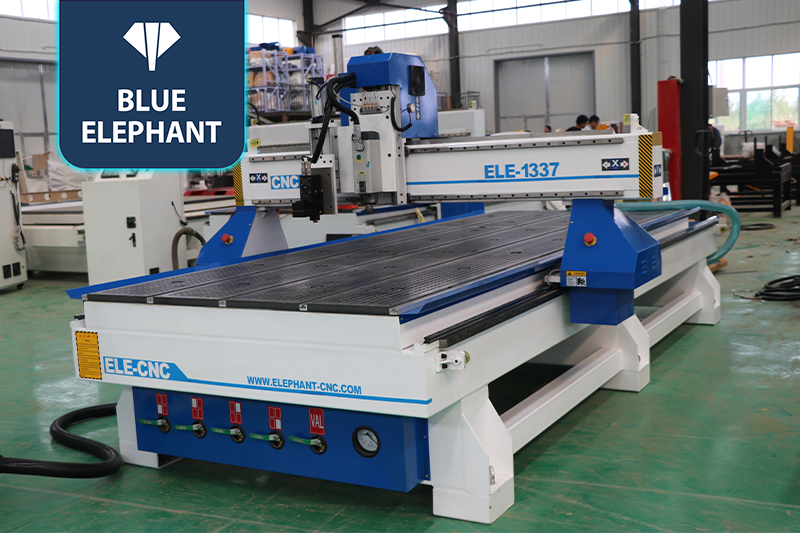

Model ELECNC1337
X,Y axis travel 1300x3700mm, optional: 1300*250mm, 1500*3000mm; 2100*3000mm, etc.
Z axis travel 200mm, optional: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type 3kw Italian HSD air cooling spindle, 18000rpm
Inverter type 3.7kw

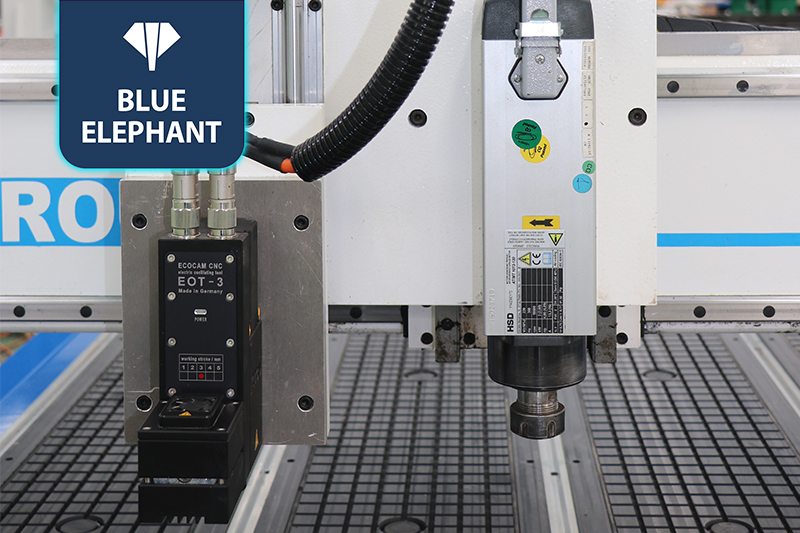

Oscillation knife Germany EOT-3 oscillation tangential knife
Tool holder with collet ER25 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC controller
Driving system Servo motor and driver
Reducer Japan Shimpo reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder Option: 7 pieces (X2,Y3)
Linear guide Taiwan Linear guide
Transmission X, Y axis: Taiwan /Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure No need
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
