High Efficiency Double Head Hinge Drill Machine for Sale in Netherlands, Greece, and Columbia at Affordable Price

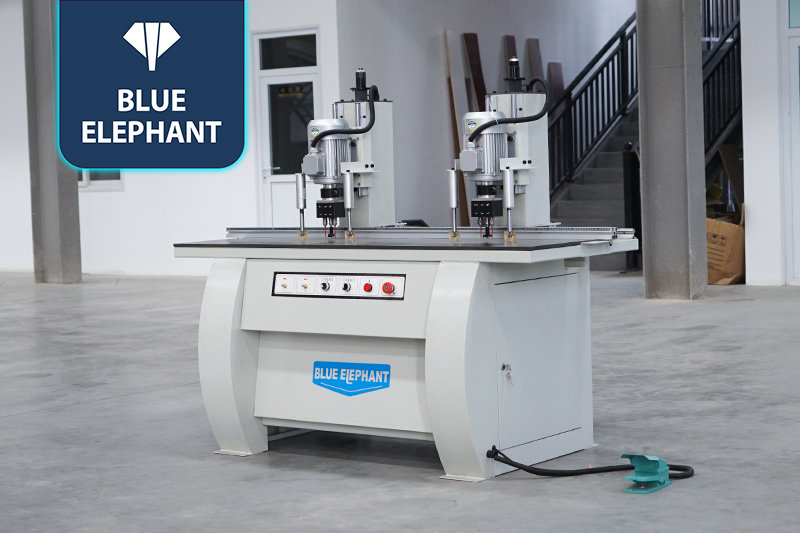

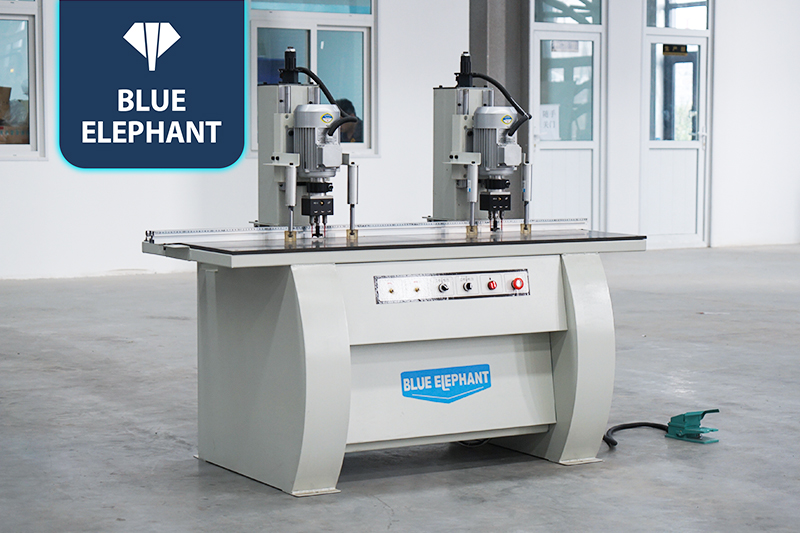

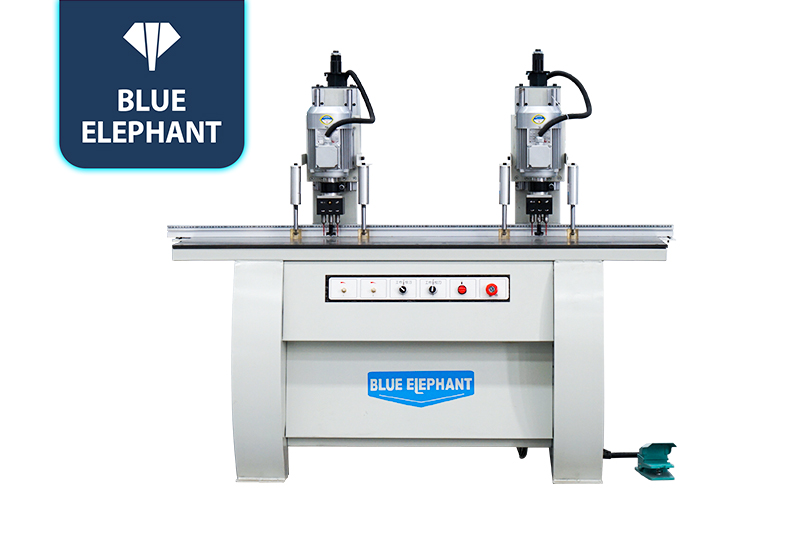

☆This is a woodworking machine dedicated to drilling hinge holes for cabinet production. It has two drill bits to work together, increasing work efficiency. It is ideal equipment for cabinet, wardrobe, and door processing manufacturers.
Subsidiary Equipments Video
Features
- Two drills can work simultaneously to drill hinge holes with high efficiency and excellent pricesion.
- It adopts a foot switch to control the operation, which is easy, convenient, and labor-saving.
- The hinge drill is provided with a positioning baffle and accurate scale, and the baffle can be adjusted according to the work needs.
Parameters
| Voltage | 380V/220V |
| Total power | 1.5kw*2 |
| Motor speed | 2880r/min |
| Drilling diameter | ≤35mm |
| Drilling depth | ≤50mm |
| Number of spindles | 3*2set |
| Dimensions | 1800*800*1550mm |
