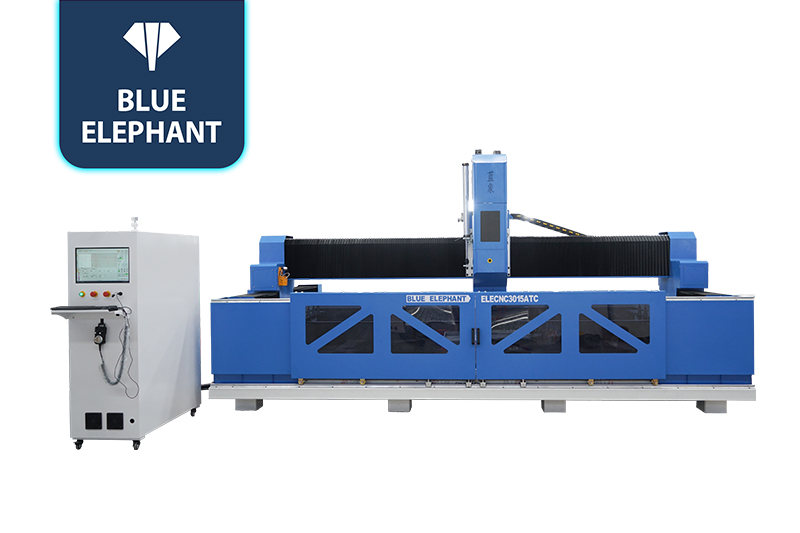

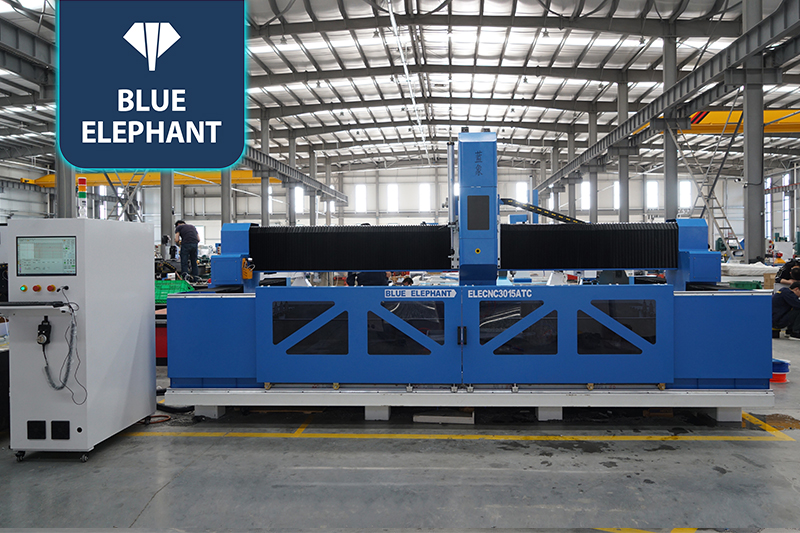

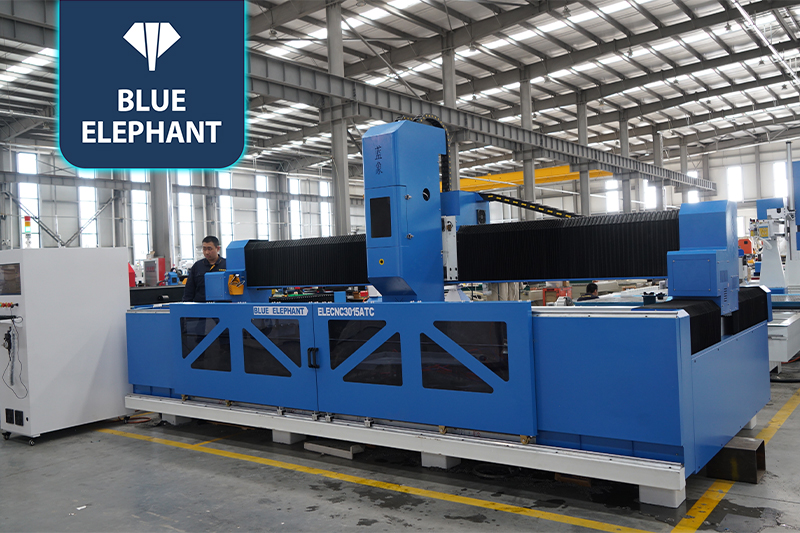

Economical ATC Quartz Stone Machining Center for Making Stone Countertops-for-hot-sale

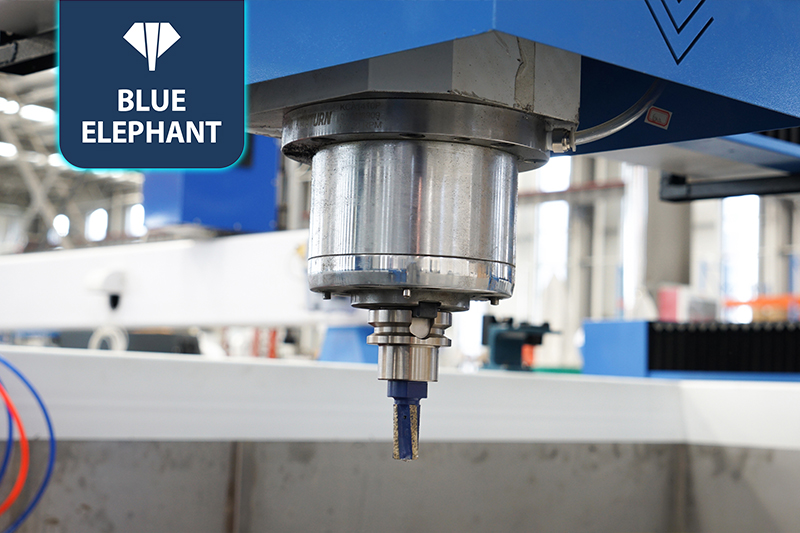

It adopts the Kenturn mechanical spindle, with low speed and big torque. The spindle can spray water in the middle, very suitable for stone processing.Rigid phenolic board tabletop has such features as high strength, strong adsorption, chemical resistance, impact resistance, abrasion resistance, easy to clean, fireproof, heat-resistant, and smoke-resistance.

Stone Engraving Machines Video

Parameters

Working area 3000x1500x400mm
Spindle KCA1410P-CTS spindle
Spindle speed 10000RPM
Tool magazine Linear tool magazine with 12 tools
Control system NC60A control system for stone machine
Motor and driver Japan YASKAWA servo motor, 7.5kw CTB servo motor for spindle
Working Table Phenolic board hard table, equipped with 8 suction cups
Tool holder BT40 tool holder
Reducer Japan Shimpo reducer/
Lubrication system Automatic lubrication
Voltage 380V, 50Hz, 3 phase
X,Y,Z Transmission Helical rack gears transmission on X, Y axis, Taiwan TBI ball screw transmission on Z axis
X,Y,Z Rail  Taiwan PMI linear guide rails, #35 for Y axis, #30 for XZ axis

Application

Stone CNC engraving machine is mainly designed to deal with stone work such as line carving, 2D plane carving, 3D relief carving, shadow carving, etc. It can process marble, granite, jade, crystal, tombstone, agate, ceramic, plastic, chemical composite board, and other materials. It is widely used in processing marble and granite kitchen countertops, bathroom countertops, wash basins, tables, drain tanks, etc.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
