Greatest 2030 3D EPS Styrofoam Cutting Machinery for Sale in Denver, Colorado

☆This 3D CNC foam cutting machine is tested to the limit for sturdiness and reliability. And it is the first choice for large workpieces.

CNC Router Machines Video

features

  • Adopting 7.5kw Changsheng water cooling spindle, it can guarantee maximum processing efficiency.
  • The working size can be increased according to your special requirements.
  • With NK 105 controll system, it has the break point resume function and high precision.

Parameters

Model ELECNC2030 EPS
X,Y axis travel 2000x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc
Z axis travel 8000mm, option: 900mm, 1000mm, etc
Spindle type 7.5KW water cooling spindle
Inverter type 7.5kw Fuling Inverter
Control system Weihong NK105 controller with hand wheel guide
Driving system 850KW YASKAWA servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot work table with PVC Protection
Linear guide Taiwan linear guide with dust proof
Transmission X,Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw

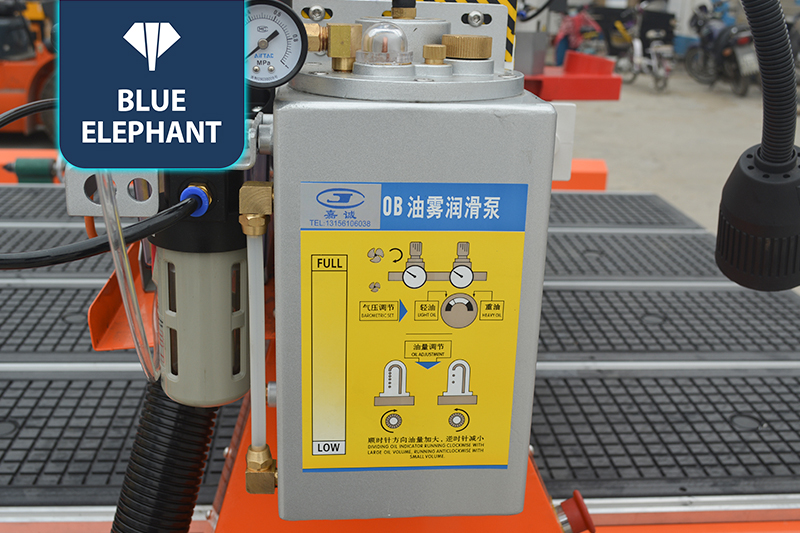

Lubrication system Manual lubrication system
Tool calibration Manual tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Type 3, Ucancam, Aspire, etc
Command language G  Code & M Code
Traveling speed 60m/min
Working speed 0-45m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.

Production Facility

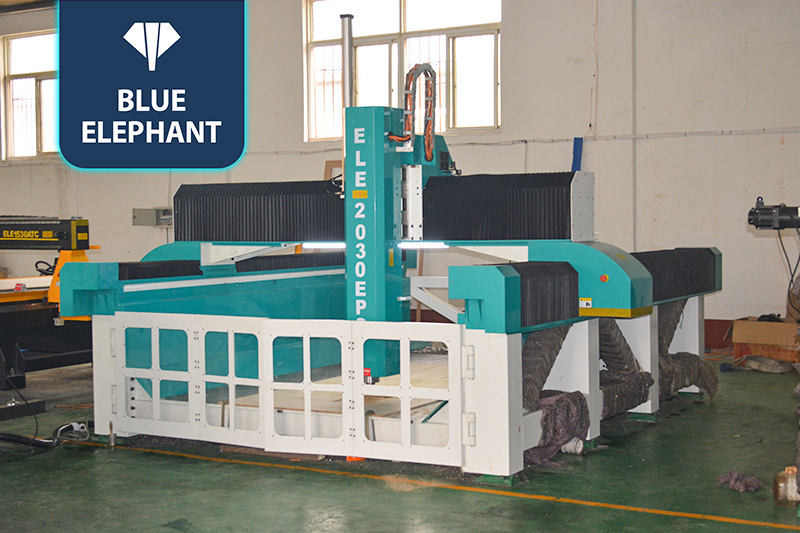

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
