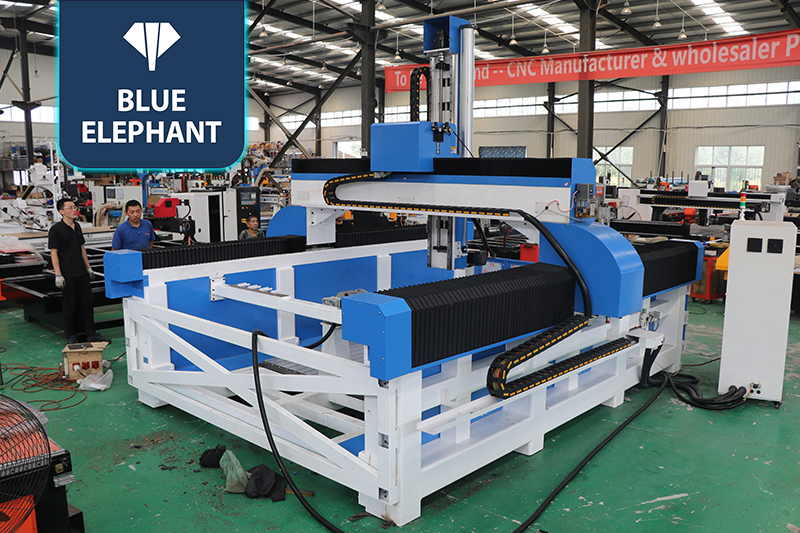

Best Selling Cheap Linear Foam ATC CNC Router Machine at Favorable Price in Australia, Calcutta

☆This is an EPS engraving machine with a linear automatic tool changing magazine, which greatly improves processing efficiency.

CNC Router Machines Video

features

  • Adopting linear tool changer with 8 tools to realize the processing of complex workpieces at one time.
  • Using Taiwan SYNTEC21MA control system with MPG handle wheel, it is easy to operate.
  • The 1800*2400mm worktable size can also be changed to the 1000*2400mm, 3000*5000mm, etc.

Parameters

Serial Number S20190930Z
Model ELECNC-1824 EPS
Working area 1800x2400x1200mm for 3axis;  1000x2400x1200mm for 4axis;
Spindle ATC 9.6KW Italy original HSD spindle
Spindle speed 6000-24000RPM
Inverter Taiwan Delta B Model 11.0KW
Tool magazine Liner 8pcs tool magazines/Carousel tool magazine with 8 tools
Control system Taiwan SYNTEC21MA control system with MPG handle wheel
Motor and driver Japan YASKAWA 1.3KW servo motor and drivers
Working Table Aluminum T slot table
limit switch Japan OMRON limit switch
Reducer Japan Shimpo reducer

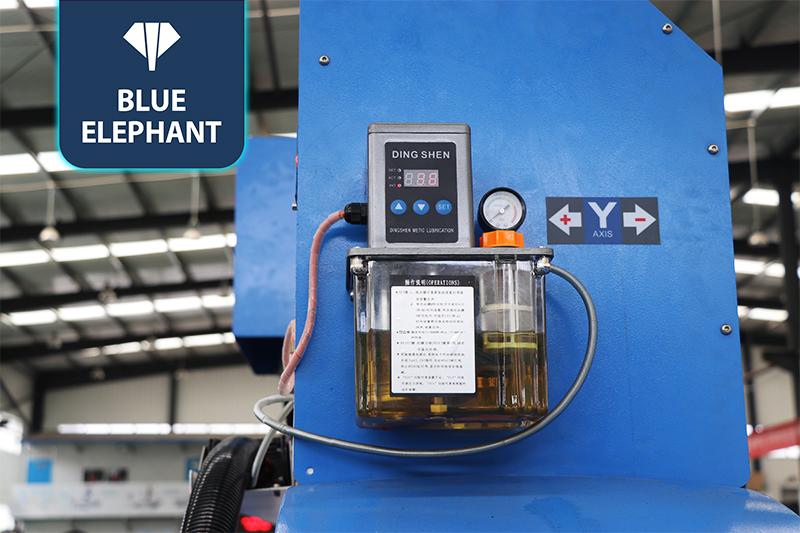

Lubrication system Automatic lubrication system for rails
Voltage 380V,3phase, 50HZ
X,Y,Z Transmission X,Y-helical rack pinion, Z axis with 2510 TBI ball screw
X,Y,Z Rail Taiwan PMI linear guide, 35# for X,Z axis; 40# for Y axis
Machine Frame New type thicker and bigger heavy duty 12mm
Electric Wires High soft shield with copper wire to protect against static electricity, UL/CE standard Shanghai Cardiff brand
Dust collector ISO30 tool holders with ER32 collect
Tool sensor Automatic tool sensor
Electric part French SCHNERDER switch

Application

Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.

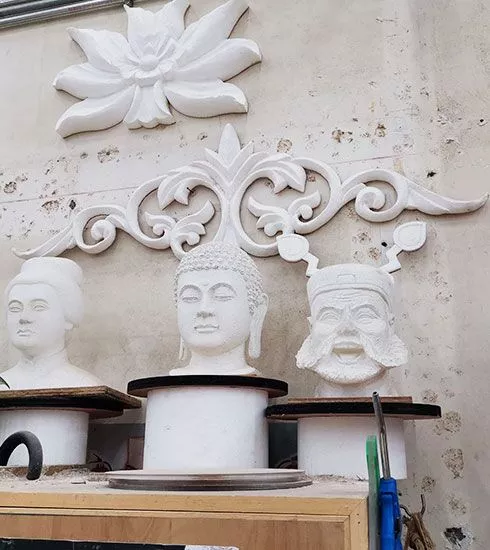

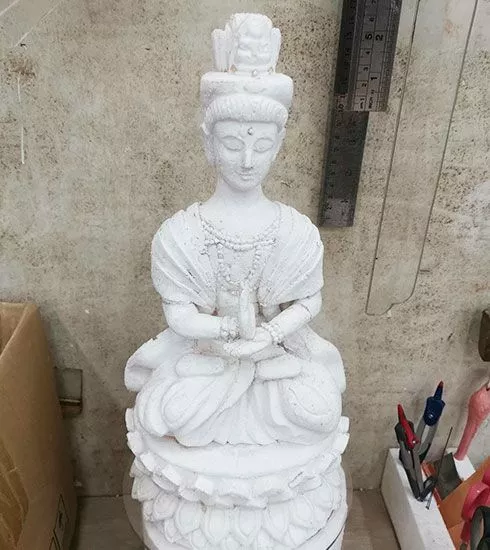

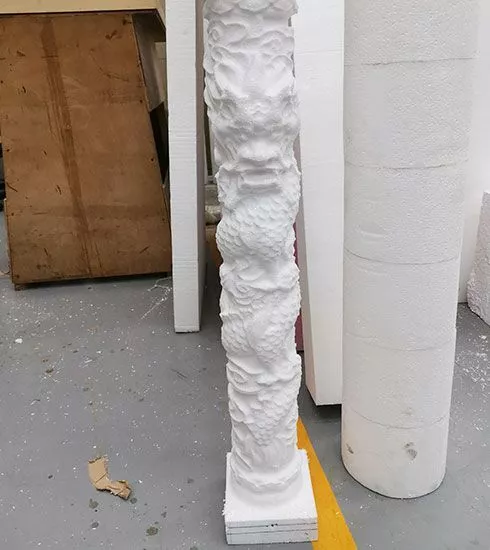

Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.
