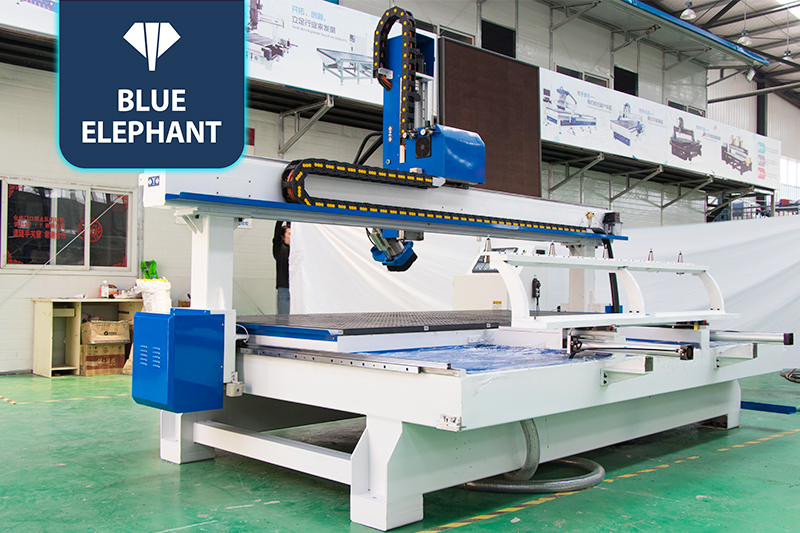

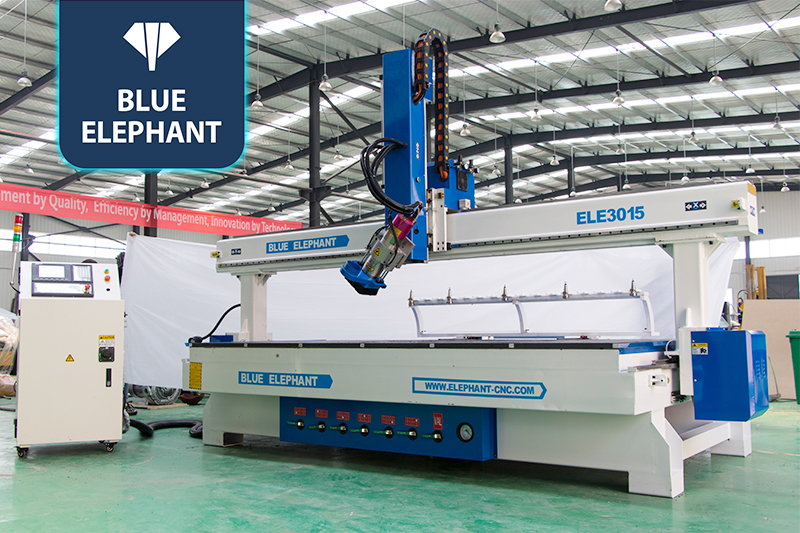

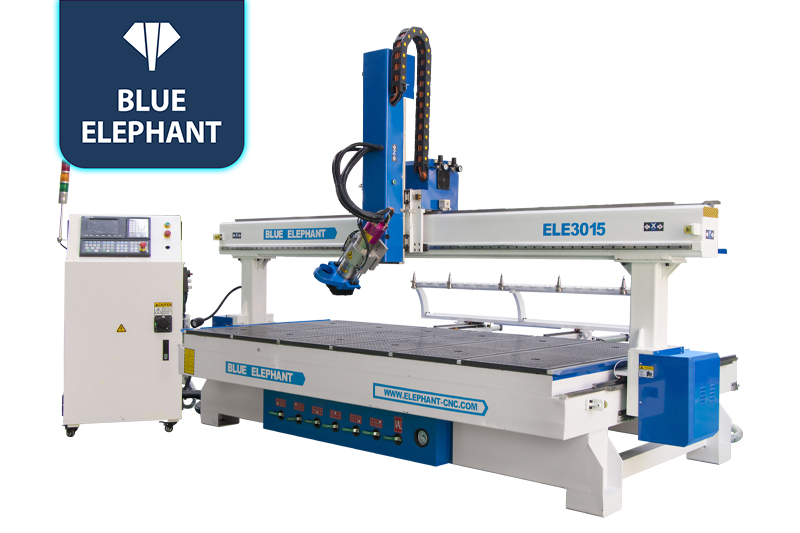

3015 ATC 4 Axis CNC Router Machine for Sale with Favorable Price in Japan, Australia.

☆This is a custom ATC 4 axis CNC wood router machine with a long X-axis travel. It can process 3D workpieces with high efficiency and accuracy due to the 4 axis working path. The automatic tool changing function significantly reduces the non-production time.

4 Axis CNC Router Machines Video

Features

  • A customized worktable size of 3000x1500mm can meet the customer’s demands of long X-axis travel.
  • The vacuum and T-slot table has a strong adsorption ability to such the workpieces firmly on the worktable during operation, preventing the panel from sliding or moving.
  • The helical racks, guide rails, and ball screws adopt famous brand products to guarantee smooth operation and a long lifespan of the machine.

Parameters

Description Parameter
X,Y,Z Working Area 3000x1500x400mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
Table Surface Vacuum&T-slot Table
Frame Welded Structure,heavy duty T-structure
X, Y Structure Helical Rack gear, Abba 25# Linear Square Guide
Z Structure Taiwan TBI Ball Screw, Abba 25# Linear Square Guide
Lubrication system Automatic
Vacuum pump 11kw  water circlulation vacuum pump
Tool slots 16
Spindle Power 5.5kw Changsheng HQD ATC water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors Japan YASKAWA
Working Voltage 220V,3phase,60HZ(option 380V, 3phase, 50HZ)
Control System Taiwan SYNTEC
X,Y Resolution <0.01mm
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment  Temperature 0 – 45 Centigrade

Application

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
