☆This ATC C N C router machine is equipped with a large-capacity disc tool magazine and a big working size. So the CNC router tool changer machine can process large-sized wooden panels to realize multiple complex designs by automatically tool changing. The SYNTEC control system is easy to learn and operate for CNC beginners.

ATC CNC Router Machines Video

Features

  • The large working size of 2000x4000mm can process most large-format wooden panel for various panel furniture production.

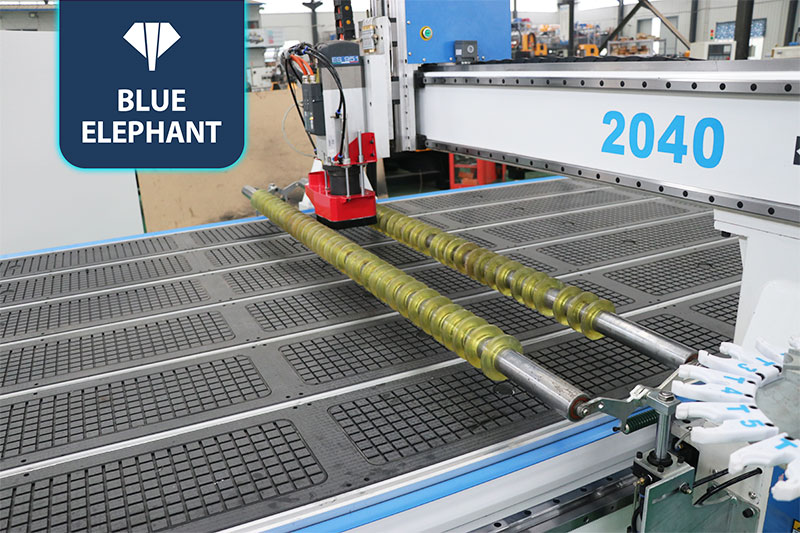

  • It is equipped with two press rollers to help fix and press the wooden board during operation, avoiding moving and sliding.

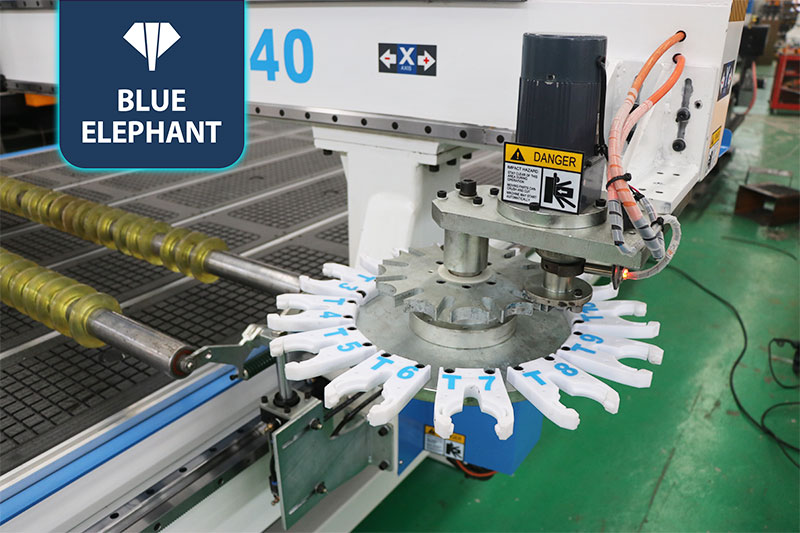

  • The ATC CNC router has a large-capacity carousel tool magazine installed on one end of the gantry, which can hold 12 CNC router tools for 12 different processes.

Parameters

Description Parameters

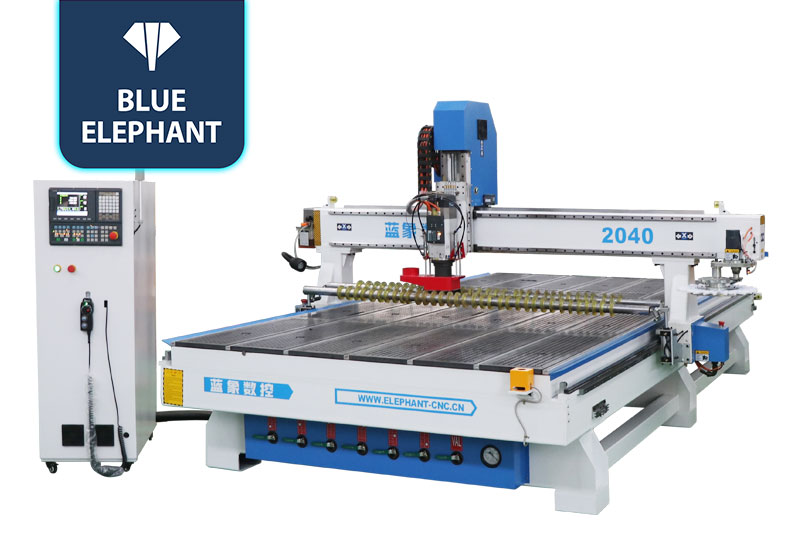

Model ELECNC-2040ATC
Working size 2000*4000*200mm
Working Voltage 380V, 3Phase, 50Hz
Control system Taiwan SYNTEC 6MB Control System
Spindle 9kw Italy HSD ATC spindle
Inverter 11kw Delta Inverter
Motor & Driver Japan YASKAWA 850W servo motor and driver
Table surface T-slot and vacuum working table, 6 zones, with two pressure rollers
Lubrication system New Auto Lubrication system
Automatic tool magazine 12 Tools
Structure New type thicker and bigger heavy duty welded frame and gantry
Rail Taiwan ABBA 25#
Vacuum pump 7.5kw water circulation vacuum pump   (380V, 3Phase, 50Hz)
Tool sensor Automatic tool sensor calibration
Reducer SHIMPO Reducer

Application

This ATC CNC router with a CNC drilling head is good at wood drilling and cutting. The drilling head is equpped with 9 vertical and 3 horizontal drill bits and 1 saw blade. It makes the drilling and cutting process more efficient and saves more time. ATC is essential for automatical woodworking, which greatly reduces non-production time and save human labors. This is the best machine combination for furniture, cabinet and door making.
