Top Ranked Edge Banding Production Line for Sale in England, France

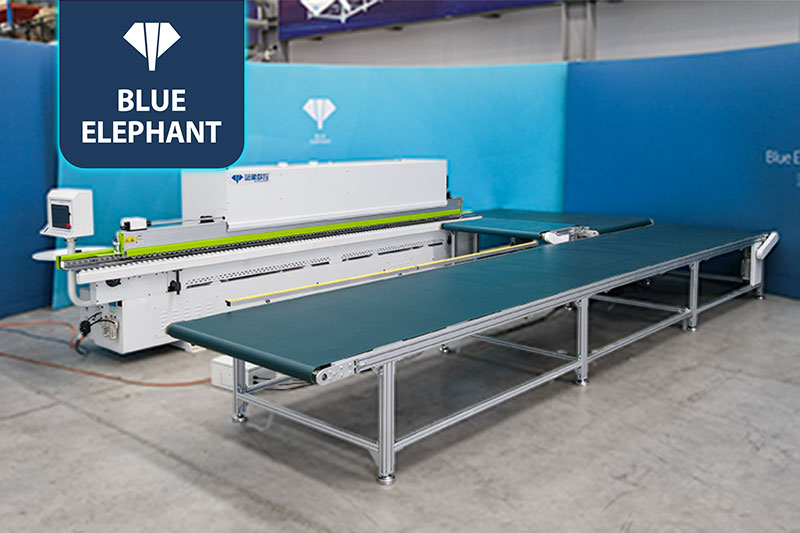

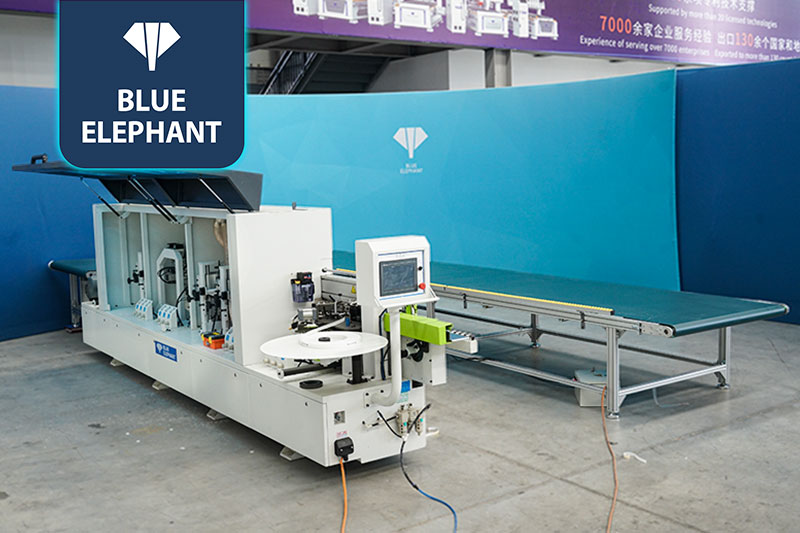

☆This automatic edge banding production line is consists of a fully auto edge banding machine and several auxiliary belt conveyor platforms. It has the features of easy operation, high efficiency, and high accuracy.

Edge Banding Machines Video

features

  • Consists of an automatic edge banding machine and several belt convey platforms, this production line is very easy and convenient to operate.
  • It can complete gluing, banding, end cutting, rough and fine trimming, profile tracking, scraping, and polishing.
  • It can not only improve work efficiency but also save much labor costs.

Parameters

Total power 10.8kW
Dimension 5600*960*1600mm
Feeding speed 16-23m/min
Thickness of edge band 0.4-3mm
Thickness of wood board 10-60mm
Length of wood board ≥150mm
Width of wood board ≥60mm
Working pressure 0.6Mpa

Application

Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.
