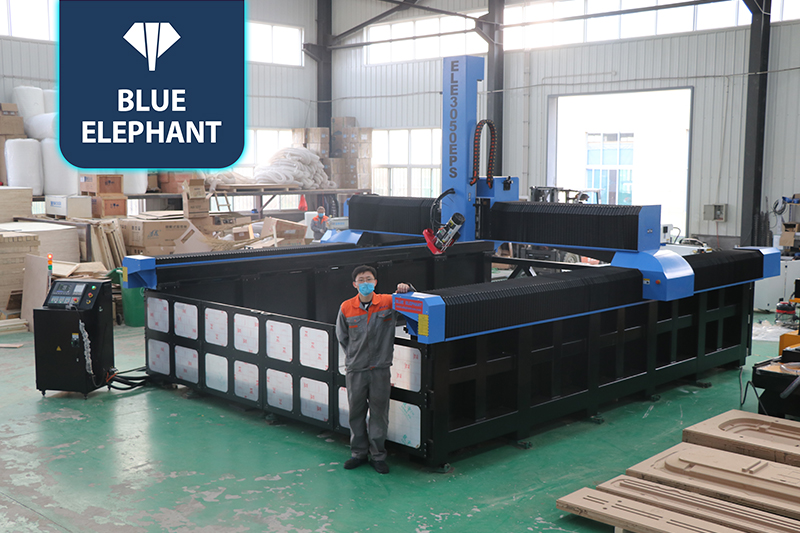

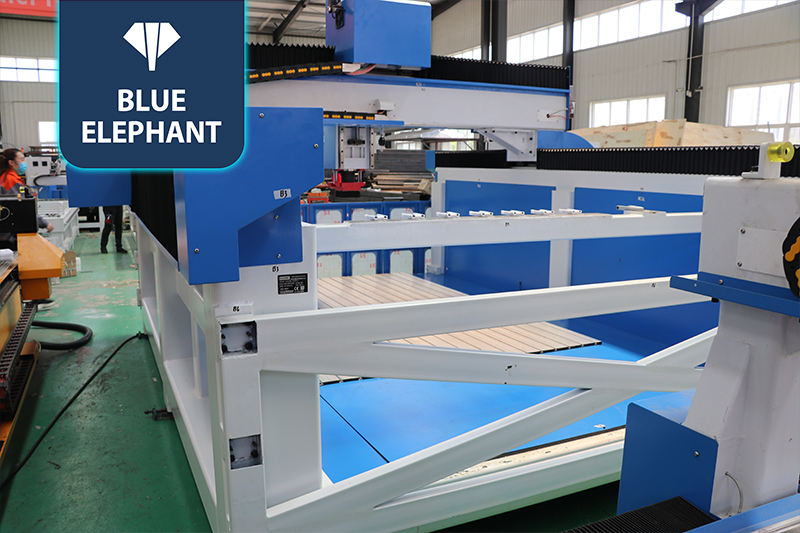

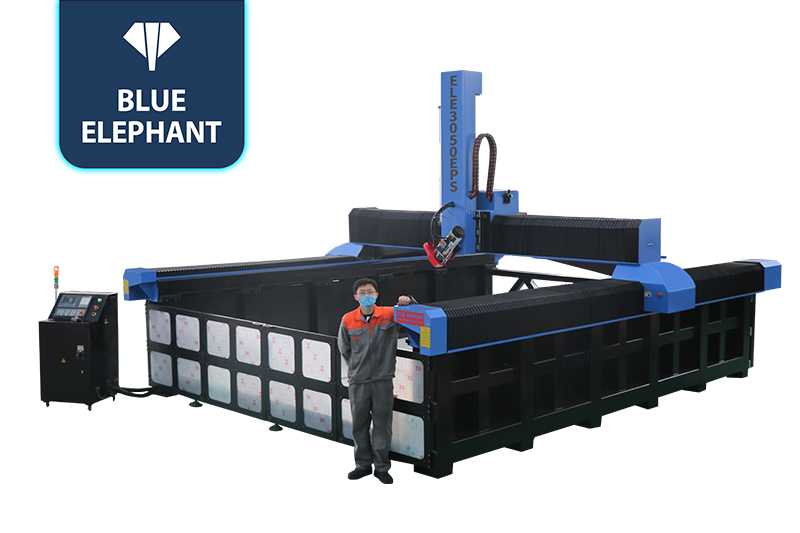

Top Ranked Rotary Axis EPS Foam CNC Router Machine at Cost in Chile, Russia

☆This EPS C and C engraving machine is added with a rotary device, which is particularly suitable for automotive foam mold, wooden ship model, wooden model aviation, etc.

CNC Router Machines Video

features

  • 1.5KW Japan Fuji servo motor and driver can guarantee maximum processing efficiency and productivity.
  • Fixing with screws, the New type heavy duty steel structure is tested to the limit for sturdiness and reliability.
  • With automatically lubrication system, it can prolong the machine service life.

Parameters

Description Parameter
X,Y,Z Working Area 3000x5000x1200mm
Table Surface T-slot Table
Frame New type heavy duty steel
Y Structure Helical rack gear , PMI #40 Square Linear guide
X,Z Structure PMI #35 Square Linear guide
Spindle Power HQD spindle 9kw
Spindle Speed 0-18000RPM
Drive Motors 1.5KW Japan Fuji servo motor and driver
Working Voltage AC380V/50Hz,3PH (Option: 220V))
Inverter 11KW Fuling inverter
Command Language G Code
Operating System Taiwan SYNTEC 6MB controller
Rotary device Diameter in 200mm,length for 5000mm,with chuck support
Computer Interface USB
Software Compatibility Power mill software with post-processing
Others Automatically lubrication system
Japan Omron limit switch
Dust cover

Application

Casting mold industry: It can be used for the precision production of various cast wood molds for various automobiles, ships, aviation, trains, etc. And also be used for research and development and production of automotive interior decoration and exhibition decoration materials.
Casting and sculpture industry: Processing and engraving of various casting process products, lost foam, exhibition decoration materials, and GRG decoration materials.
Building decoration industry: Processing and production of building decoration materials such as GRG and GRC.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
