High Performance Intelligent Wood Panel Saw Machine at Great Price in South Africa, Israel, Vietnam

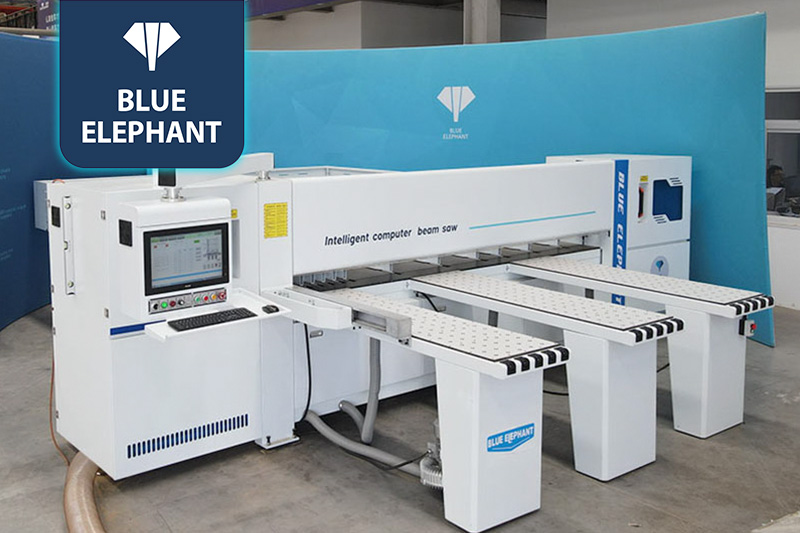

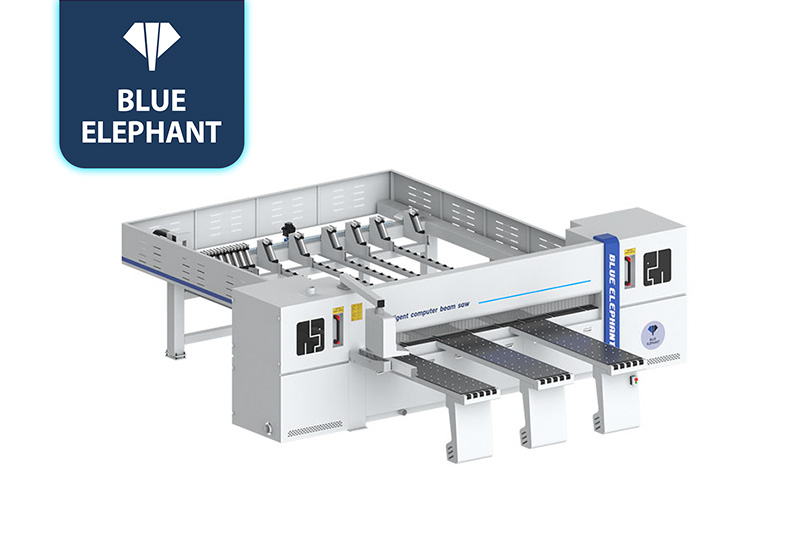

☆This high speed computer beam saw has the characteristics of high-speed cutting, excellent precision, high stability and easy operation. It is capable of cutting wooden panels with a maximum length of 3700mm.

Panel Saw Machines Video

Features

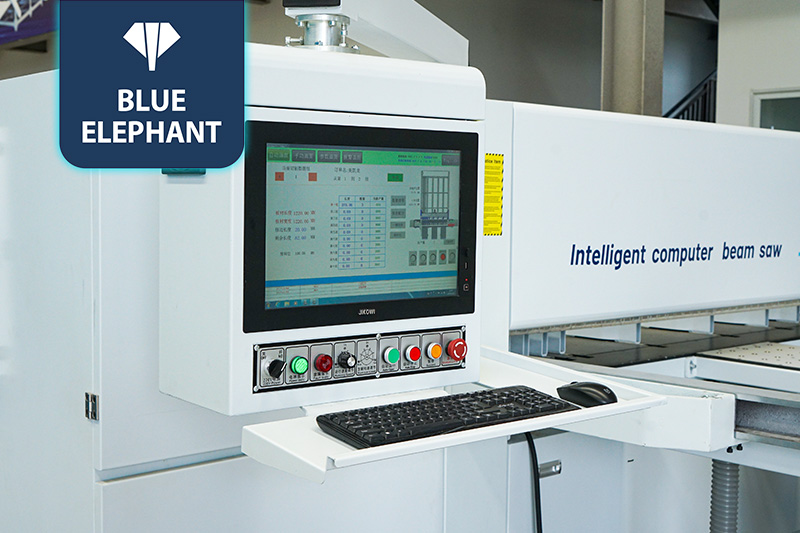

  • Adopts industrial computer intelligence system, which has an advanced but easy-to-operate man-machine interface.
  • Key components are all from international brand to ensure high accuracy and reliability.
  • Optimized software adds drawing design and optimization while with the practical functions of residuals management, layout optimization, and barcode printing.

Parameters

Model ELECNC-380
Overall dimension 6400x6300x1800mm
Cutting length 3700mm
Cutting thickness 100mm
Main saw blade diameter 350mm
Main saw blade revolving speed 4800rpm
Groove saw blade diameter 180mm
Groove saw blade revolving speed 6900rpm
Forward speed of carriage 100m/min
Backward speed of carriage 150m/min
Main saw motor 16kW
Groove saw motor 2.2kW

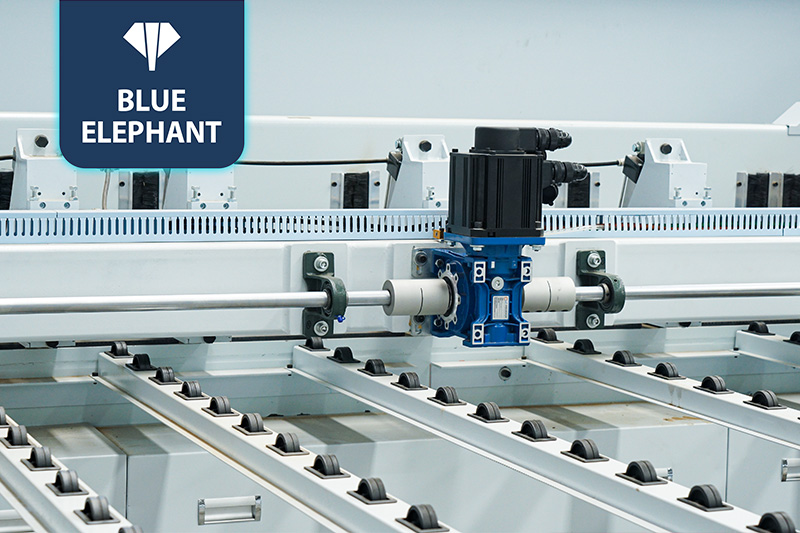

Auto feeding motor 1.5kW (AC, servo)
High-press ventilating motor 2.2kW
Total power 23kW
Auto feeding speed 100m/min
Air pressure 5-7kg/cm2
Platform height 950mm
Control switch Schneider
PLC Fatek
Converter Invt
Screen Fatek
Contactor Schneider
Pneumatic elements Hengtong
Solenoid valve AirTac
Motor Igarashi
Servo control system Invt
Linear guide rail SLM

Application

Computer beam saws adopt industrial computer control, which has advanced but easy-to-operate man-machine interface. It is mainly used to cut straight and flat wooden panels. The cutting surface is smooth without any burrs, and also has excellent precision. Computer beam saws are widely used in making various wooden furniture.

panel-saw-samples-1_1642753240
panel-saw-samples-2_1642753303
panel-saw-samples-3_1642753324
panel-saw-samples-4_1642753338
