Purchase Large Digital Die Cutting Machine for Sale in Suriname, Guyana, Morocco

☆This oscillating knife CNC cutting machine with ATC spindle is good at cutting and engraving leather, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated box, foam, leather strip, etc.

Digital Cutting Machines Video

features

  • Using Taiwan SYNTEC control system with an operation handler, which is easy to use.
  • Germany ECO CAM EOT-3 oscillating CNC knife is safe to cut soft metarials.
  • Aluminum T-slot & vacuum work table has stronger adsorption to fix the material.

Parameters

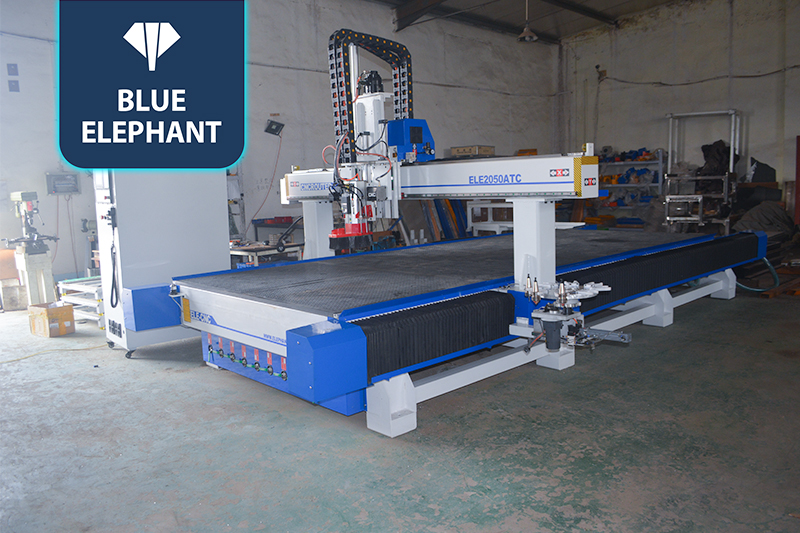

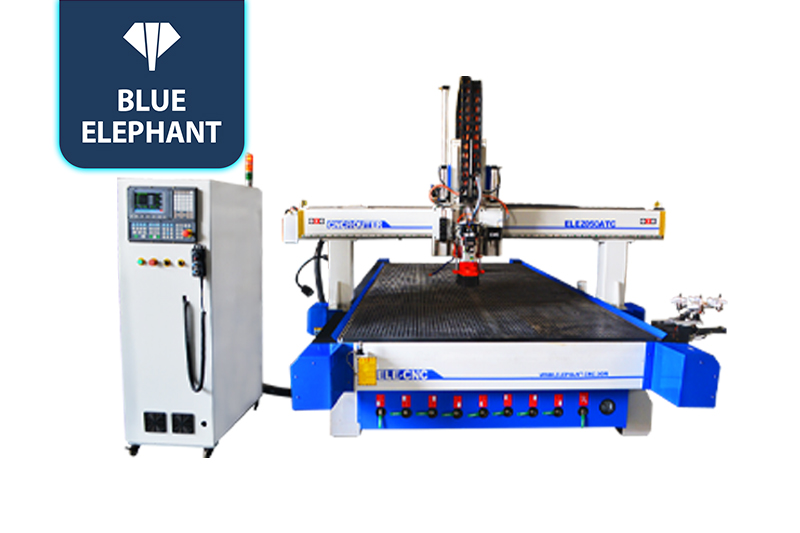

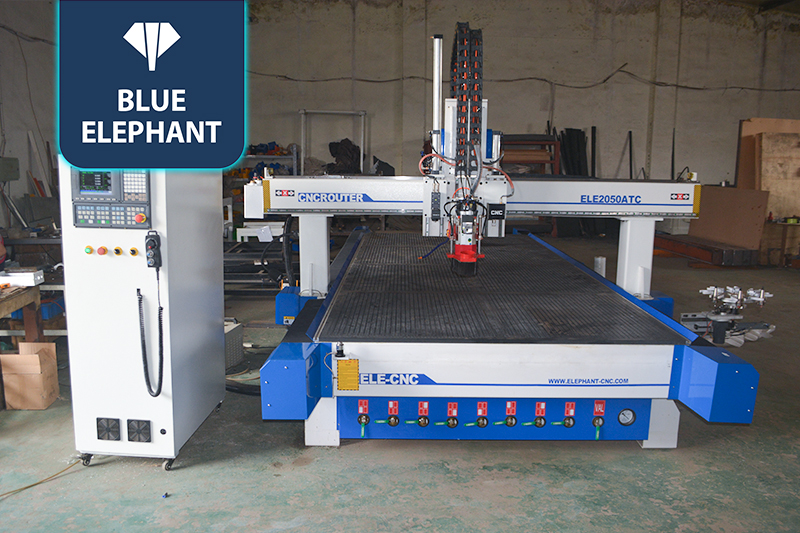

Model ELECNC2050ATC
X,Y axis travel 2000x5000mm, option: 1300*2500mm; 1500*3000mm; 2000*6000mm, etc.
Z axis travel 400mm, option: 200mm, 300mm, etc.
Spindle type 9kw ATC air cooling spindle, ER32
Inverter type 11kw

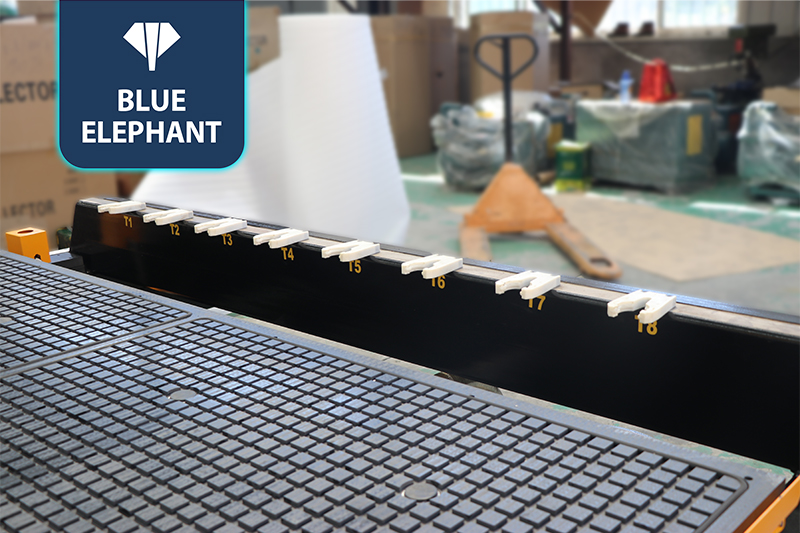

Tool magazine Carousal tool magazine
Option: Linear type auto tool changer;
Tool holder with collet ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan Syntec controller, option: Taiwan LNC
Driving system 850w Japan Yaskawa AC servo motor and 1000w AC servo drivers, 5 sets. option: 850w Japan Yaskawa servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder Optional: 7 pieces (X2,Y3)
Linear guide Taiwan Linear guide
Transmission X, Y axis: Taiwan/Germany helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Manual tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
Command language G Code & M Code
Traveling speed 40m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.07mm
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.
