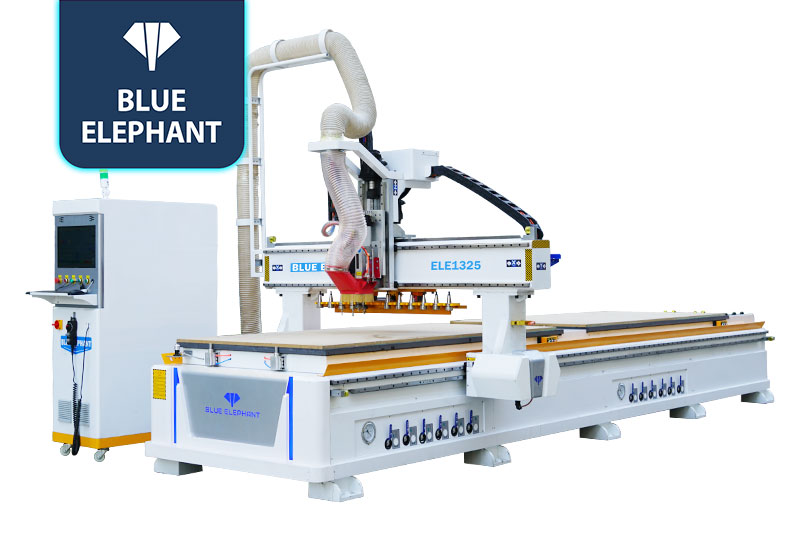

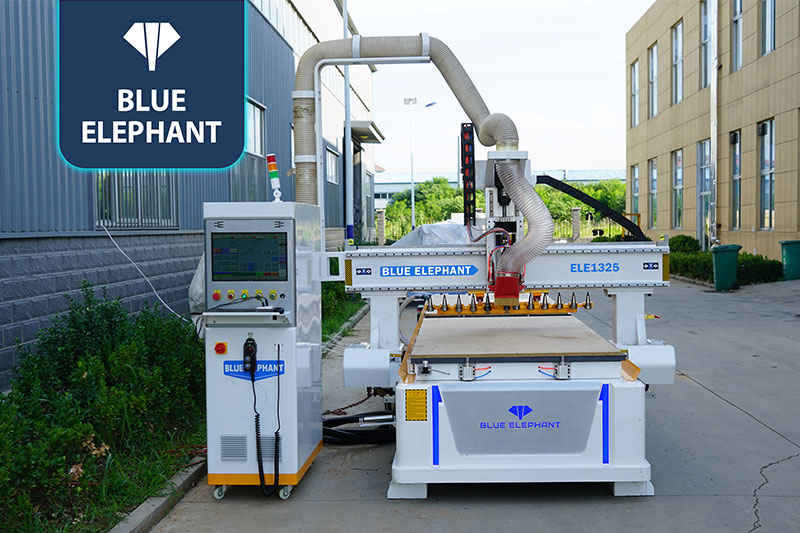

High Efficiency Double-platform Nesting CNC Machine for Price in Vietnam, Pakistan, Cuba, Malta

☆With two working platforms, the working efficiency of this nesting CNC machine can be increased by 30%. Besides, it also has the automatic tool changing function to reduce the time of manual tool changing. So this CNC router is a better option for the furniture manufacturers who pursuit high-efficiency production.

Features

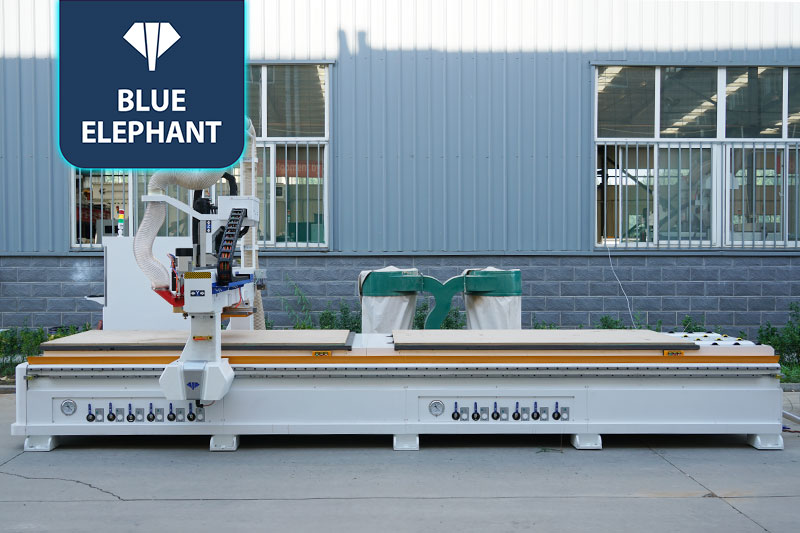

  • Two worktables can realize simultaneous loading and unloading of wooden boards, greatly saving loading and unloading efficiency.
  • The 9kW ATC spindle can realize fast automatic tool changing and precise CNC wood cutting and nesting work for the mass production of cabinets.
  • An automatic lubrication system ensures smooth operation, saves human labor and extends the machine’s lifespan.

Parameters

Model ELECNC1325ATC nesting machine with double platform
X,Y axis travel 1300x2500mm,option:1500*3000mm;2000*3000mm;2100*4000mm,etc
Z axis travel 200mm
Spindle type 9kw ATC HQD air cooling spindle, ER32
Inverter type 11kw Fuling inverter
Control system Taiwan LNC 2200 control system with MPG, keyboard and mouse
Driving system Leadshine 1.3KW servo motor and drivers
Reducer Japan Shimpo reducer
Machine structure Heavy-duty welded steel frame
Worktable Full-page vacuum working table, double working table
Linear guide Taiwan Linear guide
Transmission X,Y axis: Taiwan Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L Auto lubrication system

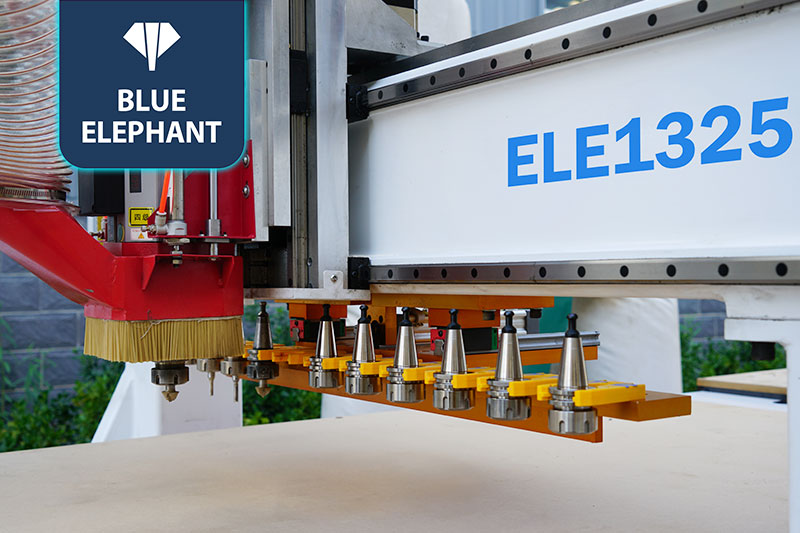

Tool magazine 12pcs linear tool magazine, under the gantry
Tool Calibration Autotool sensor
Cables Germany Igus cables with CE,UL certificate
CompatibleSoftware Artcam, Hisoon,etc
CommandLanguage GCode
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioningaccuracy ±0.03mm
WorkingAccuracy ±0.03mm
Working voltage 220V 3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Application

It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
