Top Rated 1313 ATC CNC Router with Customized Z Travel in Jacksonville, FL, United States

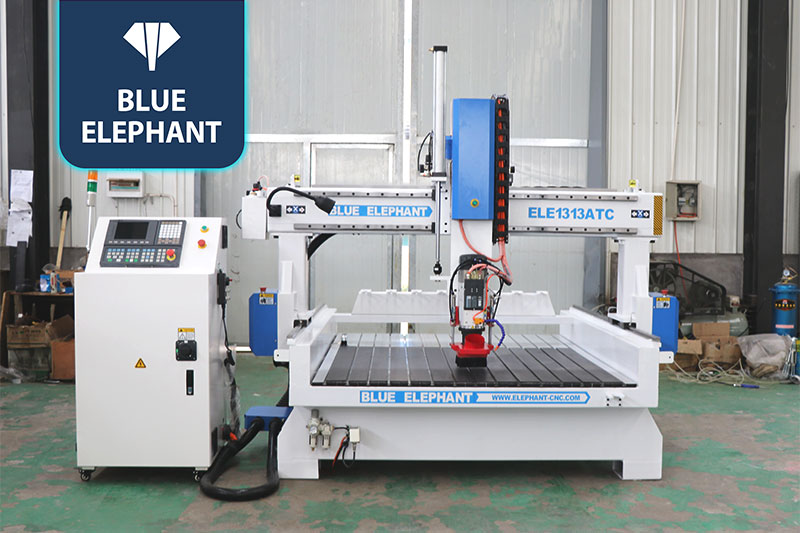

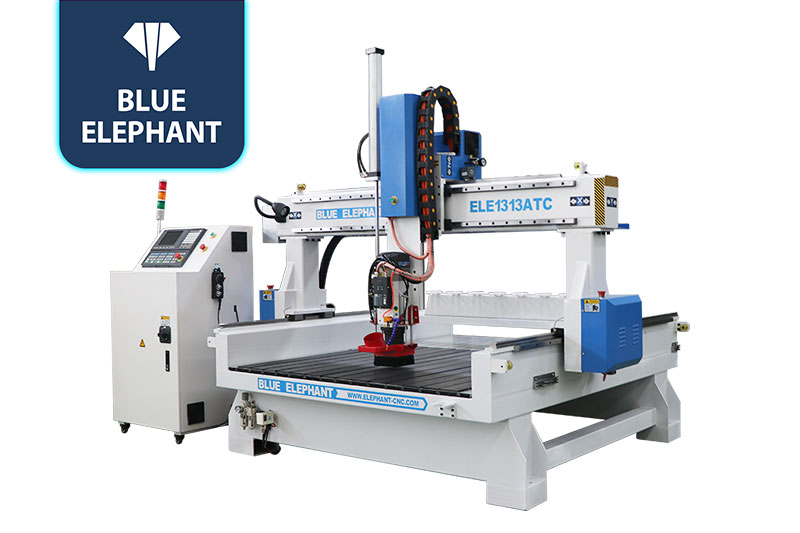

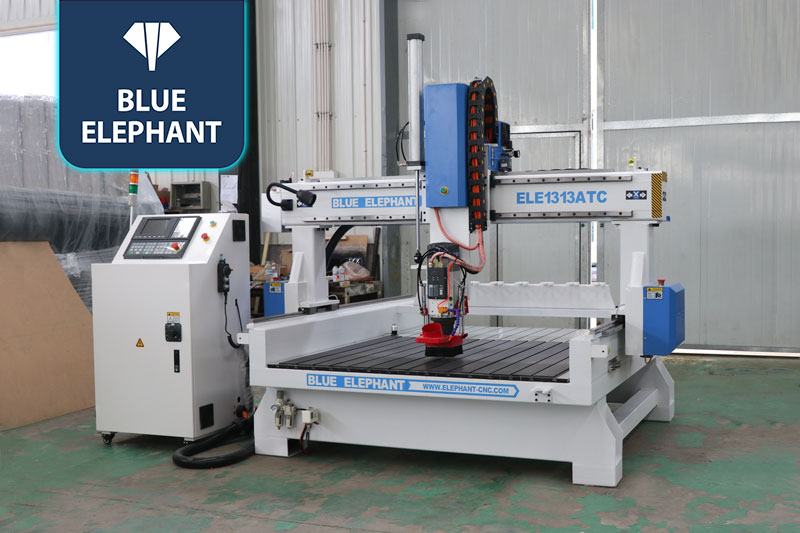

☆The auto tool changer CNC router is customized with a higher Z axis spindle which can achieve tall and thick materials’ processing. And with an effective working area of 1300x1300x500mm can meet clients’s specific processing demands.

ATC CNC Router Machines Video

Features

  • Equipped with a sunken work table and a customized Z-axis travel of 500 mm, it is suitable for engraving tall workpieces.

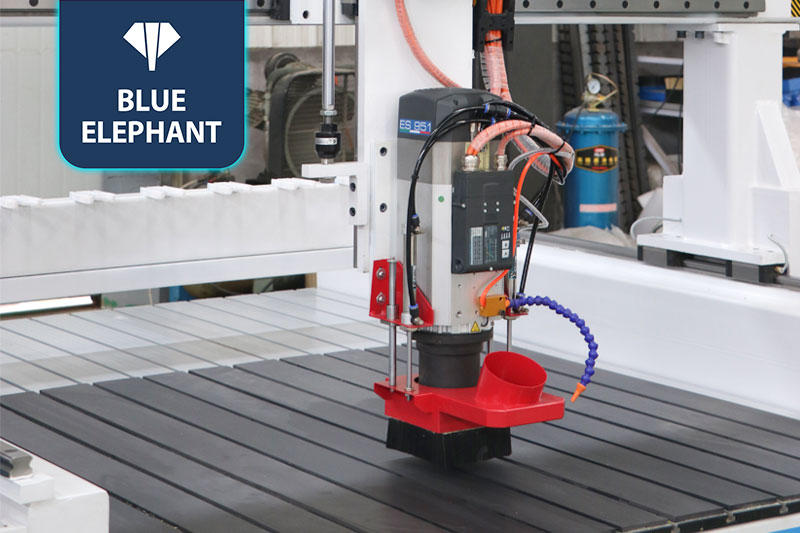

  • Fitted with a 9kW air-cooled spindle, it is capable of powerful cutting and engraving work with speed and precision.
  • The sturdy rigid steel construction ensures safe and stable operation.

Parameters

Description Parameter
X, Y, Z working area 1300mmx1300mmx500mm
Operating System Taiwan SYNTEC control system
Inverter 11kw Taiwan Delta interver
Table structure New type thicker and bigger heavy duty welded steel frame and gantry
Table Surface T-slot table
Frame Welded structure
X, Y Structure Rack and Pinion Drive ABBA linear guide rail
Z Structure TBI Ball Screw
Limit switch brand  Omron
Lubrication system Automatic lubrication system
Oil mist cooling system Automatic oil mist cooling system
Spindle 9kw HSD air cooling spindle
Spindle Speed 0-24000RPM
Drive Motors 750w YASKAWA servo motor and driver
Working Voltage AC380V,3phase
Command Language G Code
Machine special requirement Countertop sinking 200mm

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
