Most Popular Large 2055 Double Head Wood Carving Machine for Sale in Arlington, Texas

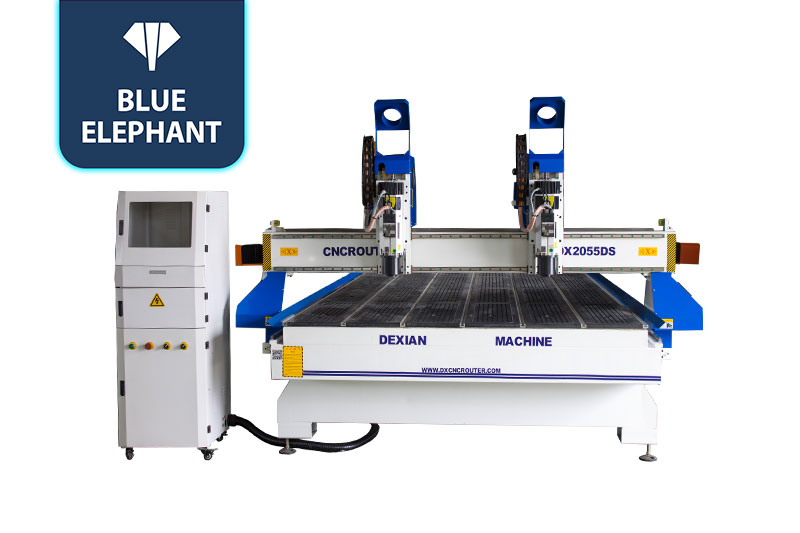

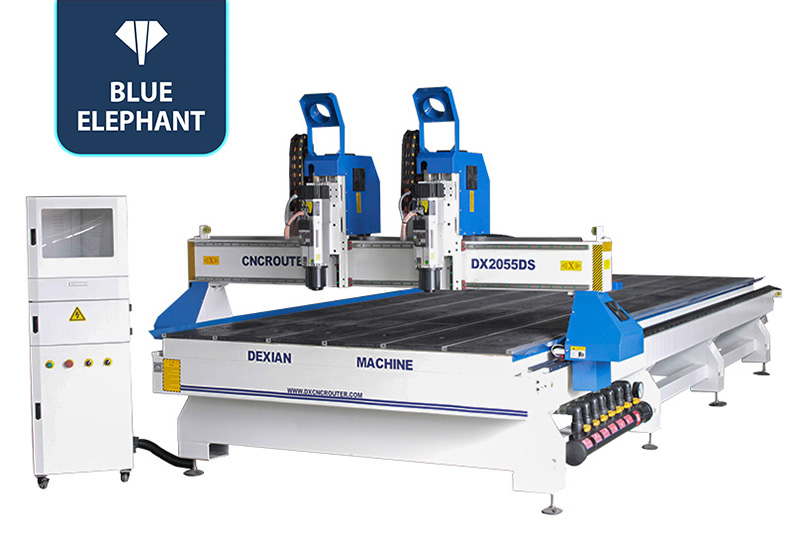

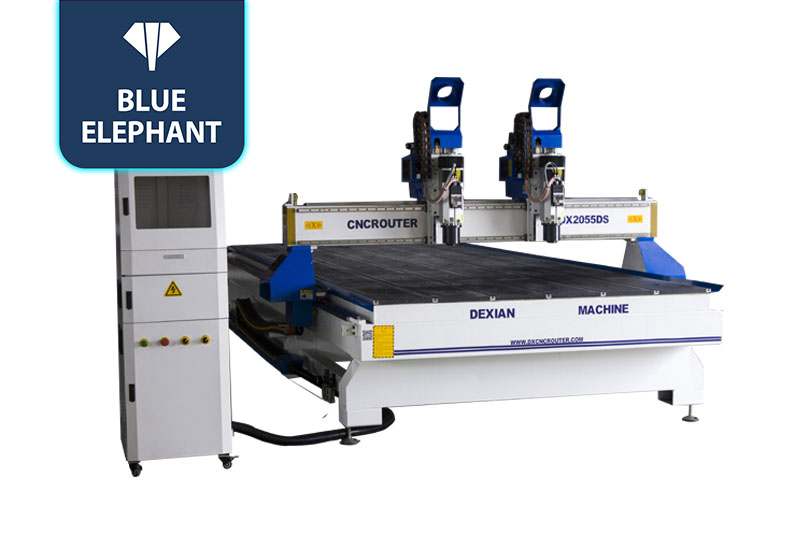

☆This is a multi-spindle CNC woodworking engraving machine with 2 spindles. Therefore, it can greatly save the time for mass production and also improve the production efficiency.
CNC Router Machines Video
features
- The 2 spindles can only work together for the same or symmetrical work, which save a lot of time.
- Designed with very big worktable size, it is convenient for customers to cut and engrave large workpieces.
- Equipped with the linear tool magazine, it can carve 3D and complex products.
Parameters
| Model | ELECNC2055-2S |
| X,Y axis travel | 2000x5500mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3*9kw HSD ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 5.5kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Nc studio-PM53C controller, option: Taiwan SYNTEC/LNC |

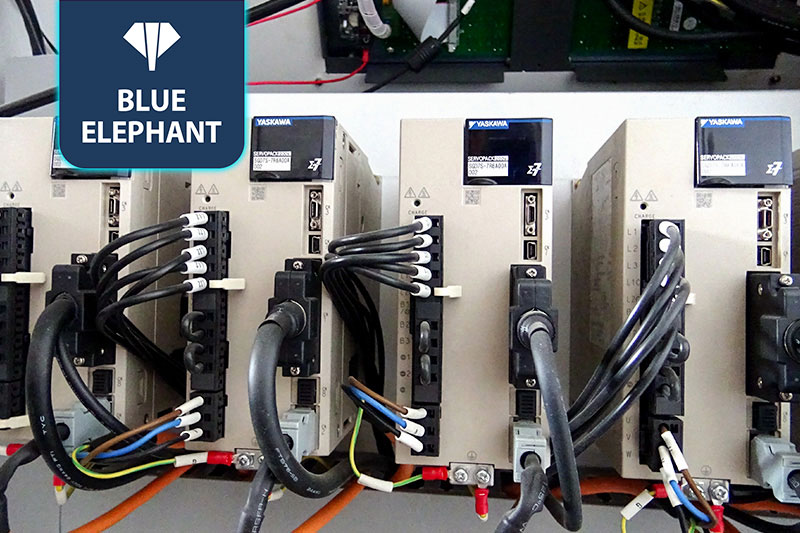

| Driving system | 850w YASKAWA servo motors and drivers, 6sets. Option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manuel tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards.
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations.
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Mold industry: wood mold, foam mold and metal mold. Musical instrument industry: 3D surface carving, shape cutting, guitar, bass, violin, viola, violoncello, erhu, and other string instrument.
Other: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.
