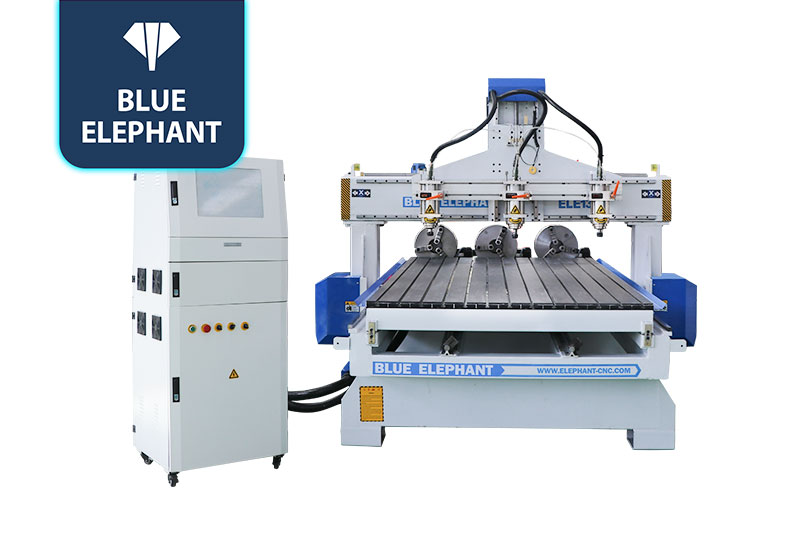

Custom 4’×8′ Multi Head CNC Router Machine with Rotary Device for Sale to San Antonio, Texas

☆This is a high-end wood CNC router with multi spindles and rotary devices. Therefore, it can cut and engrave many different and complex products at the same time.

CNC Router Machines Video

features

  • The T-slot working table can be disassembled, which is more convenient.

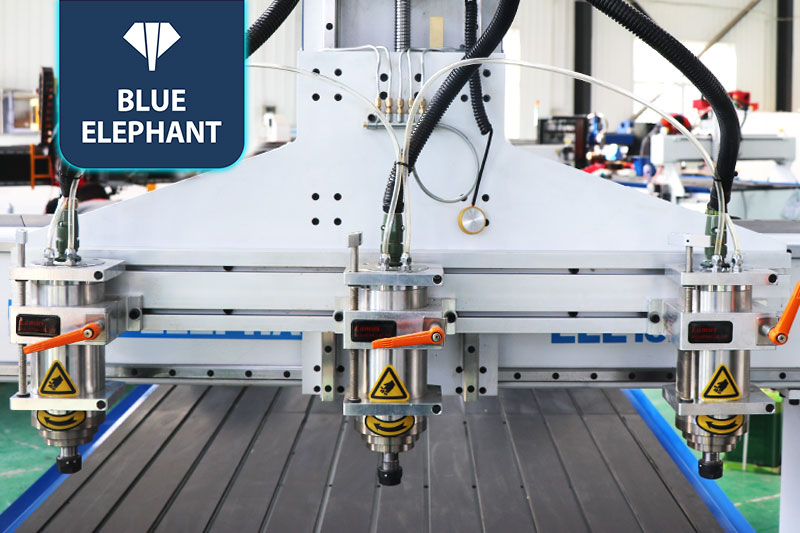

  • With three 3kw water cooling spindles, it can process mass production at the same time.

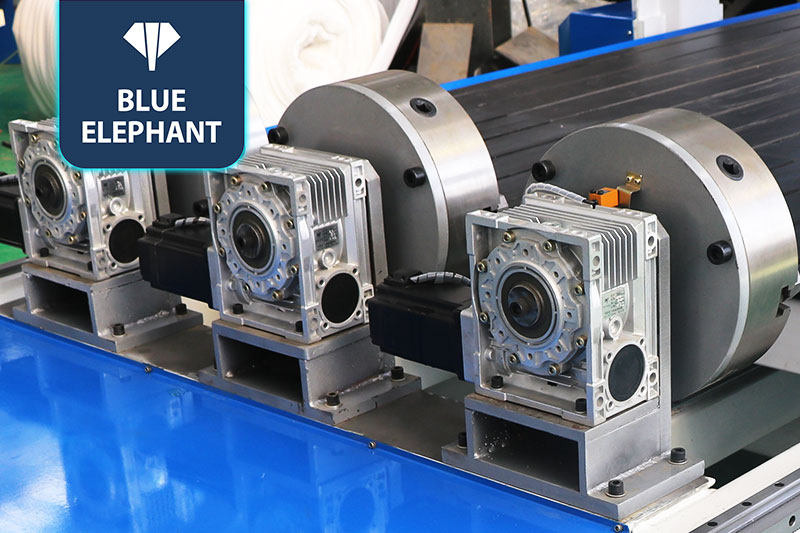

  • Added with 3 rotary devices, it can help you process cylindrical products like chair or table legs.

Parameters

Description Parameter
X,Y,Z Working Area 1300*2500*350mm
Table Surface T-slot & vacuum work table
Spindle 3*3kw Changsheng water cooling spindle
Z Structure Taiwan Tbi Ball Screw
Motor Mixed Servo Motor
Max. Rapid Travel Rate 45000mm/min
Max. Working Speed 30000mm/min
Spindle Speed 0-18000RPM
Lubrication system auto
Inverter 3.7kw Fuling Inverter
Command Language G Code
Control System PM95A-3L
Computer Interface USB
Software Compatibility Type3 Software, (Option: Artcam Software)
Running Environment  Temperature 0 – 45 Centigrade
Relative Humidity 30% – 75%

Application

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.

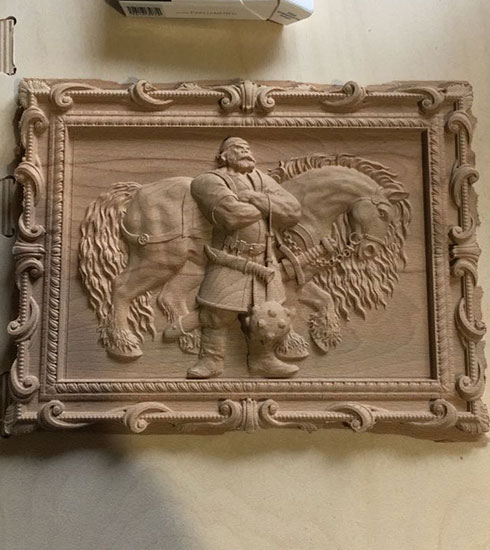

Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical.

Production Facility

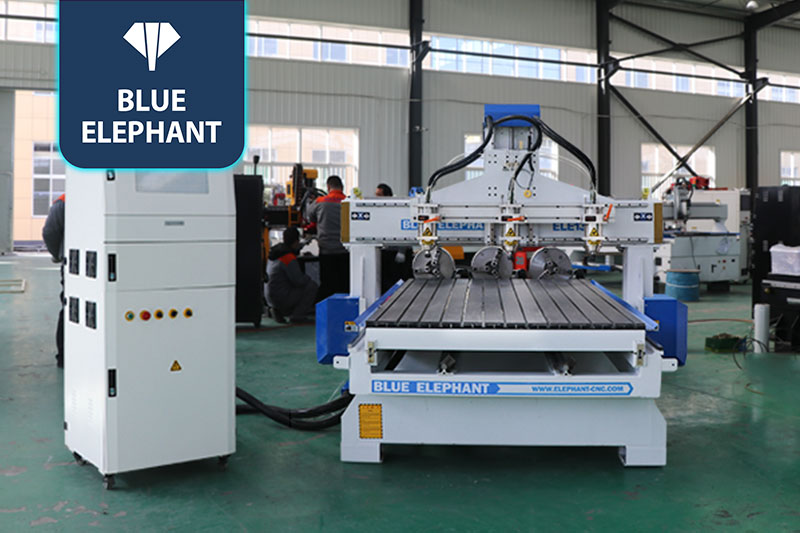

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
