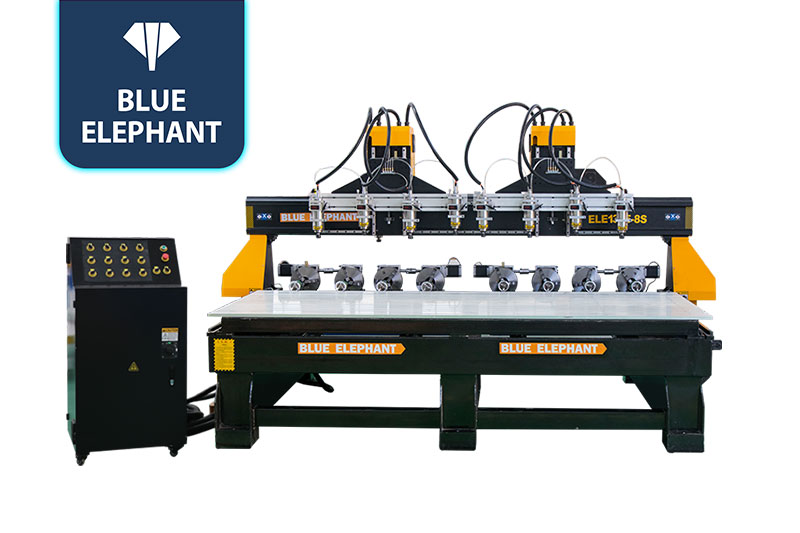

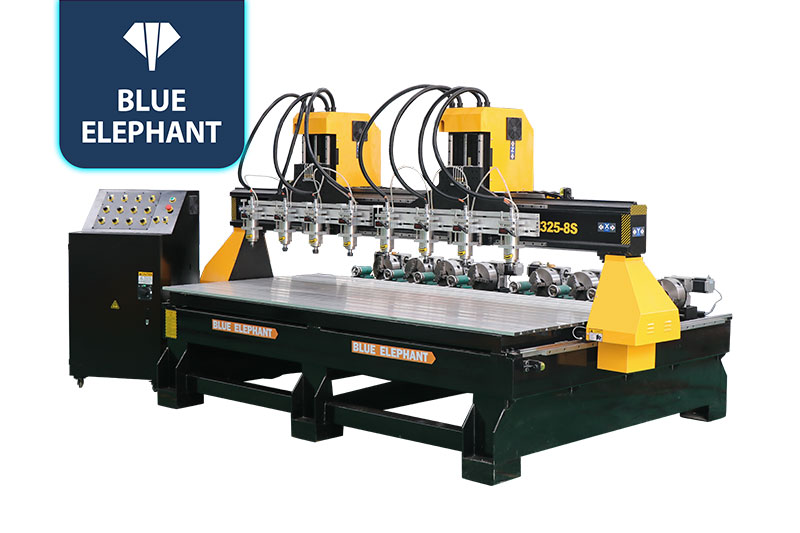

Best 8-Spindle CNC Woodworking Router Machine for Sale in Bakersfield, California
☆Compared with other multi spindle CNC router, this machine has more spindles. Therefore, it can fast cut and engrave different materials and save costs and labor.
CNC Router Machines Video
features
- 8 spindles work in the same time, greatly improving the processing efficiency.
- It has some similarities with ATC CNC router machine, but with cheaper price.
- The machine configurations can be customized according to your needs.
Parameters
| Descriptions | Parameters |
| Product name | ELE1325-8s |
| Model | 1325-8s+8r |
| Working area | 1300*2500*300mm |
| Control system | DSP B18 control system |
| Spindle | 2.2kw*8 water cooling spindle |
| Spindle speed | 0-24000RPM |
| Inverter | 2.2kw*8 fuling inverter |
| Motor and driver | 8 piece*FL 118 stepper motor and YAKO 2811 bigger and stronger driver |
| Voltage | 380V, 3ph, 50Hz |
| Linear rail | Sweden ABBA #20 linear guide for all axis |
| Table structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | Removable T-slot work table |
| X,Y axis transmission | Helical rack and pinion drive for X,Y axis |
| Z axis transmission | Taiwan TBI ball screw for z axis |
| lubrication system | Auto lubrication system |
| Rotary device | Rotary device with 200mm diameter |
Application
Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.

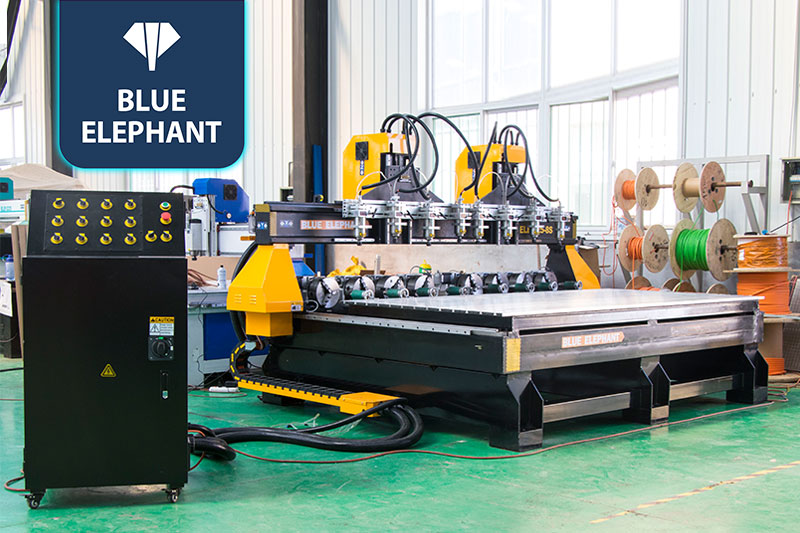

Production Facility
Quality Control & Testing
