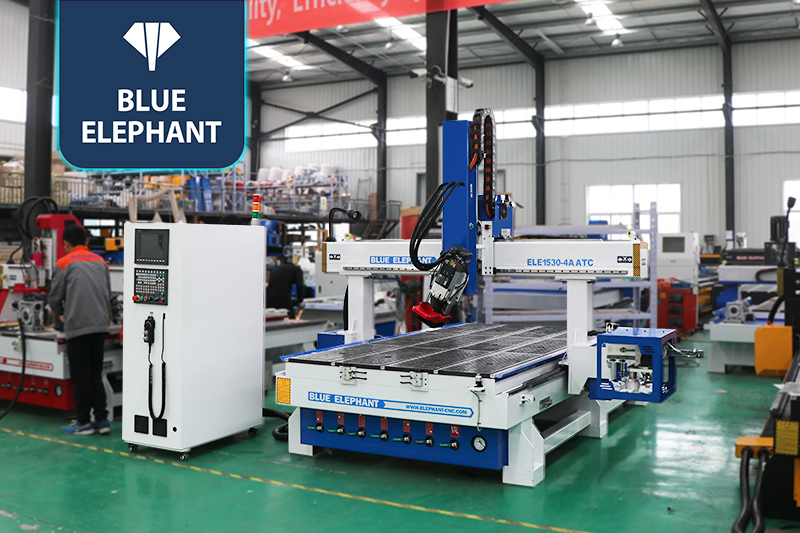

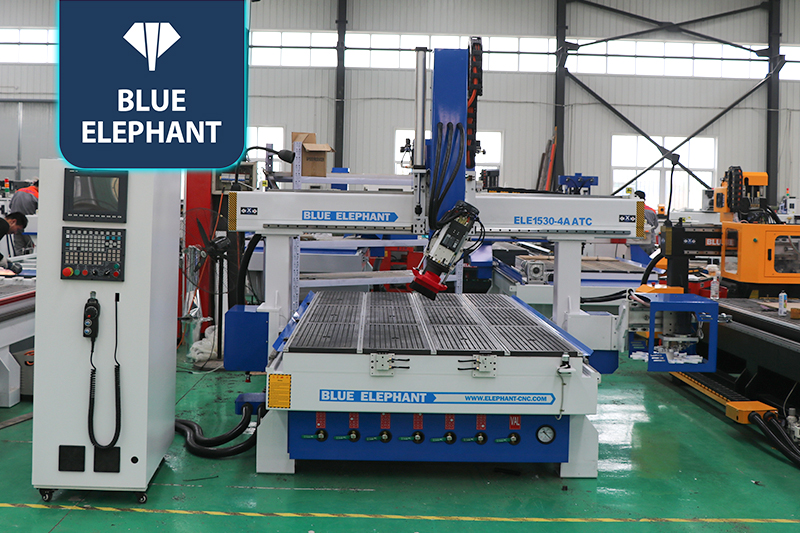

Most Popular 4 Axis CNC Wood Router with Carousel Tool Changer for Sale in South Korea, Japan, Finland
☆ This is one of the besting selling ATC CNC routers with a rotary spindle. It can complete a variety of 2D and 3D work by changing tools automatically. The working size of 1500x3000mm can meet the processing demand of most sizes.
4 Axis CNC Router Machines Video
Features
- The 4 axis CNC router with a swing spindle can process the top, left, and right sides of a workpiece in one operation, reducing clamping times.
- The Syntec control system with the handwheel operation has multiple functions and is easy to learn and operate.
- Both X and Y axes adopt precise helical rack and pinion transmission method, which has fast and efficient transmission speed.
Parameters
| Description | Parameters |
| Model | ELE1530-4A ATC |
| Working size | 1500*3000*400mm |
| Color | White and Blue (customizable) |
| Working Voltage | 220V, 3Phase, 60Hz |
| Control system | Taiwan Syntec 21MA control system with handle |
| Spindle | 9kw Italy HSD ATC air cooling spindle |
| Tool holder | ES951 |
| Inverter | 11kw Delta Inverter |
| Motor & Driver | 850W Yaskawa servo motors and 1kw Yaskawa drivers, Shimpo reducer |
| Auto tool changer magazine | Carousel |
| Tool slots | 8 |

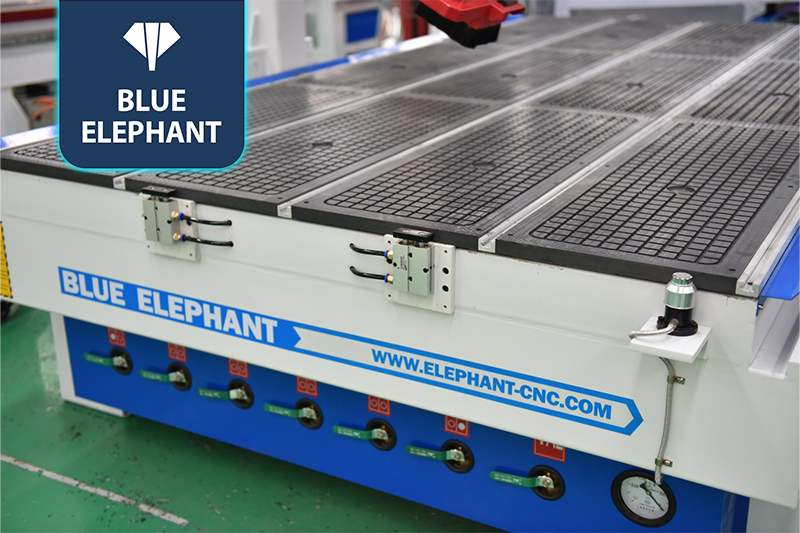

| Table surface | T-slot and vacuum working table |
| Lubrication system | Automatic lubrication system |
| Gantry structure | Gantry moving |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Transmission | Helical Rack gear for X Y axis , Z Taiwan TBI ball screw for Zaxis |
| Rail | ABBA/PMI/HIWIN Linear square guide #25 |
| Vacuum pump | 7.5kw water circulation vacuum pump (220V, 3Phase, 60Hz) |
| Dust collector | 1.5kw new type double packet dust collector (220V, 3Phase, 60Hz) |
Application

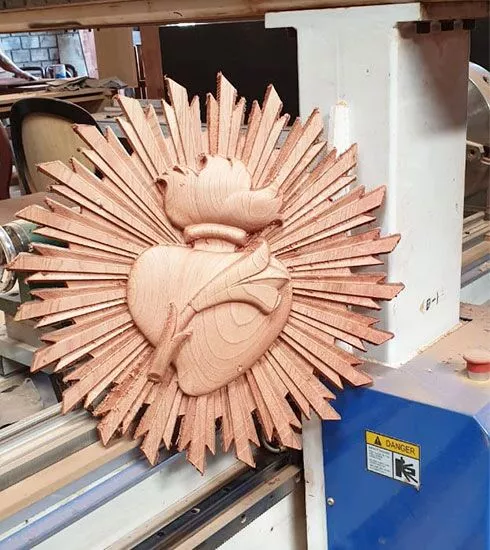

The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.
