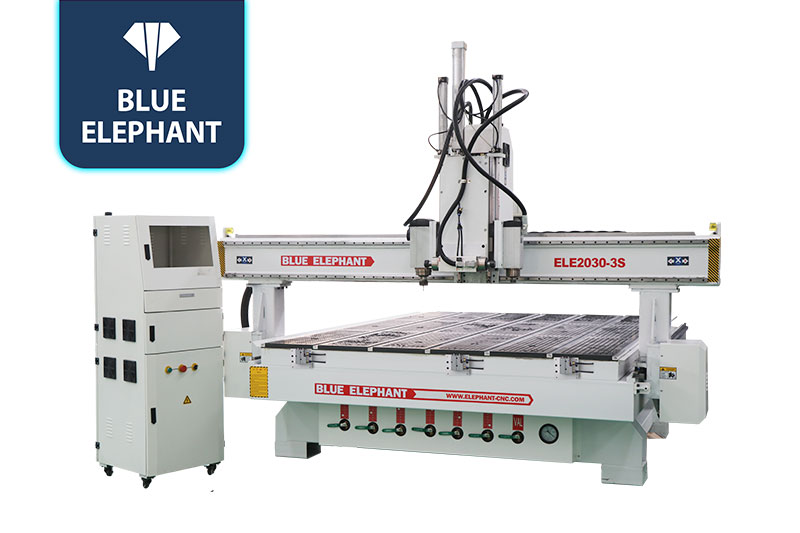

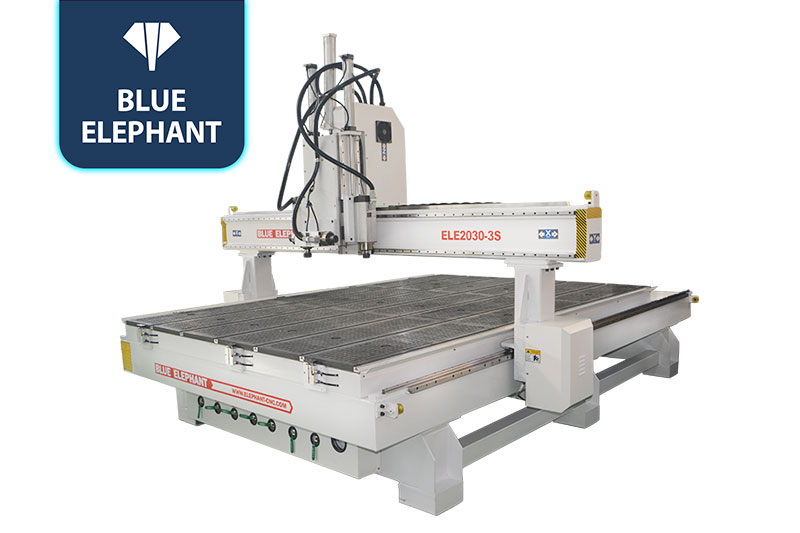

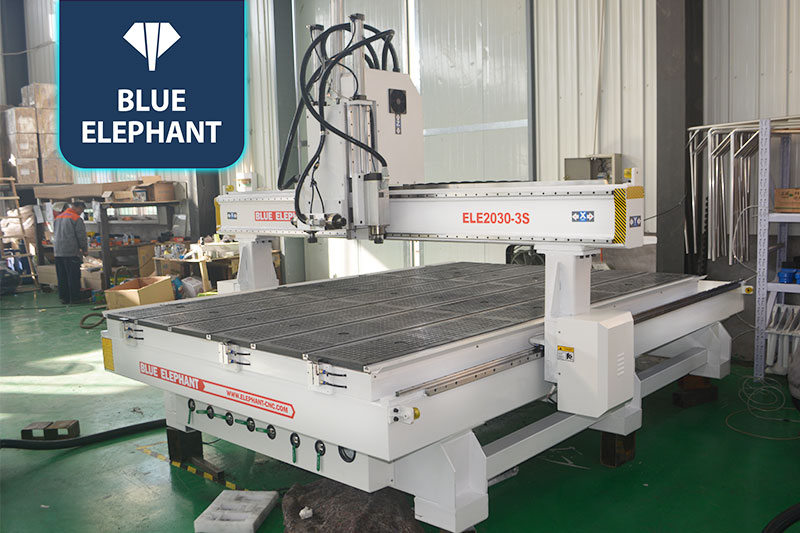

Best Selling Custom 6’×10′ C N C Router Machine with 3 Spindles for Sale in Los Angeles, America

☆It is a multi-functional CNC woodworking machine equipped wiht four axes and an automatic tool changer. And it is very economical and practical for making doors.

CNC Router Machines Video

Features

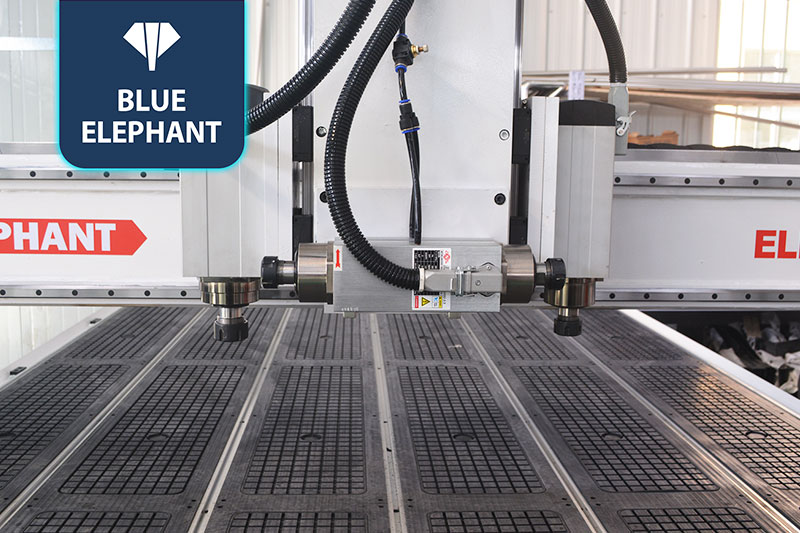

  • It adopts two vertical and one horizontal air cooling spindles, which greatly improves the machine work efficiency.
  • Using a T-slot and vacuum working table with 6 zones, it can fix the material more firmly.
  • All the machine configurations can be customized according to your requirements.

Parameters

Description Parameter
Model ELE2030-3S
Product Name Pneumatic System 3 Spindles CNC Router
Color The whole machine is white with red logo (Color can be customized)
Working Voltage AC380V, 3Phase, 50Hz (Voltage can be customized according to local conditions)
Working Area 2000*3000*300mm
Spindles Vertical spindle: 1 set 6kw HQD air-cooled spindle

1 set 3.5kw HQD air-cooled spindle

Horizontal spindle: 1 set 3.5kw Changsheng air-cooled spindle

Control System WEIHONG PM95A-3L control system with handle
Control Box An empty control box, you can put your own computer in it
Inverter 7.5kw Fuling inverter
Drivers and Motors 750w Japan YASKAWA servo motors and drivers
X,Y,Z Axis Transmission X,Y axis: rack and pinion drive

Z axis: Taiwan TBI ball screw drive

X,Y,Z rail: Taiwan PMI/ABBA linear square rail

Table Surface T-slot and vacuum working table with 6 zones separately controlled
Lubrication System Semi-automatic lubrication system
Gantry structure Gantry moving
Mist cooling system None (Optional: Water mist cooling sprayer, or Oil mist cooling sprayer)
Frame structure New type 10-12mm thicker and bigger heavy duty welded frame and gantry
Vacuum Pump 7.5kw air type vacuum pump (380v, 3ph, 50hz)
Dust Collector None (Optional: New type double bag dust collector)
Positioning cylinder A total of 7 sets: X-axis has 3 sets, and Y-axis has 4 sets

Application

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, night stands.
Decoration industry: door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos.
Craft industry: artworks, gifts, souvenirs, clock frames, holiday ornaments.
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights.
Other wooden products: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
