Buy Greatest Wood Auto Edge Banding Machine in Uganda, Norway, Sri Lanka

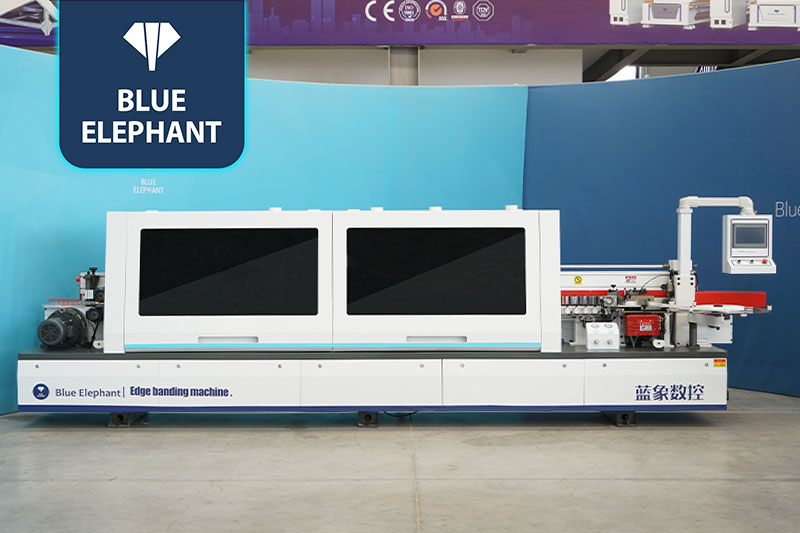

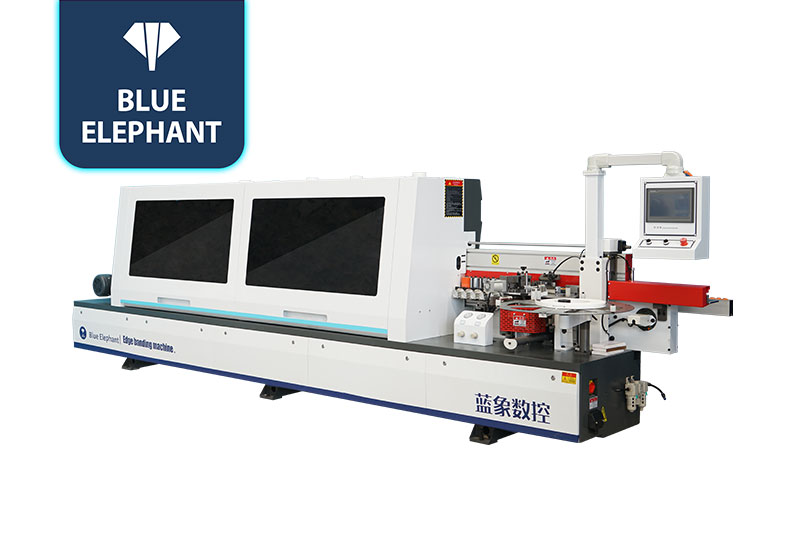

☆This E-70A bander machine is added with cutter pneumatic adjustment function. Therefore, it can realize multiple functions automatically and quickly, such as edge banding, end cutting, rough and fine trimming, tracking and corner rounding, scraping, polishing, etc.

Edge Banding Machines Video

features

  • Provided with PUR glue, it has the advantages of excellent heat resistance, cold resistance, water vapor resistance, chemical resistance, and solvent resistance.
  • It also has additional cleaning function, which can remove the residual glue from the banding edges to make the edges more smooth.
  • Adopts an industry-leading touchscreen, it has the features of friendly man-machine interface and quick response.

Parameters

Model E-70A
Overall size 5840x970x1800mm
Total power 12kW
Feed speed 15-23m/min
Electric lifting 0.37kW
Panel Thickness 10-60mm
Panel length ≥120mm
Panel width ≥80mm
Edge band thickness 0.4-3mm
Working pressure 0.6Mpa
Voltage 380V, 50Hz, 3PH
Optional: 220V 3PH; 220V 1PH

Application

Edge banding machines are mainly used for banding the edges of various panel furniture. For instance, cabinets, wardrobes, shelves, custom furniture, office furniture, tables, chairs, windows, doors, cupboards, and other wood products.

edge-banding-machine-sample-2_1642835686
edge-banding-machine-sample-4_1642835714
edge-banding-machine-sample-5_1642835816
edge-banding-machine-sample_1642835853
