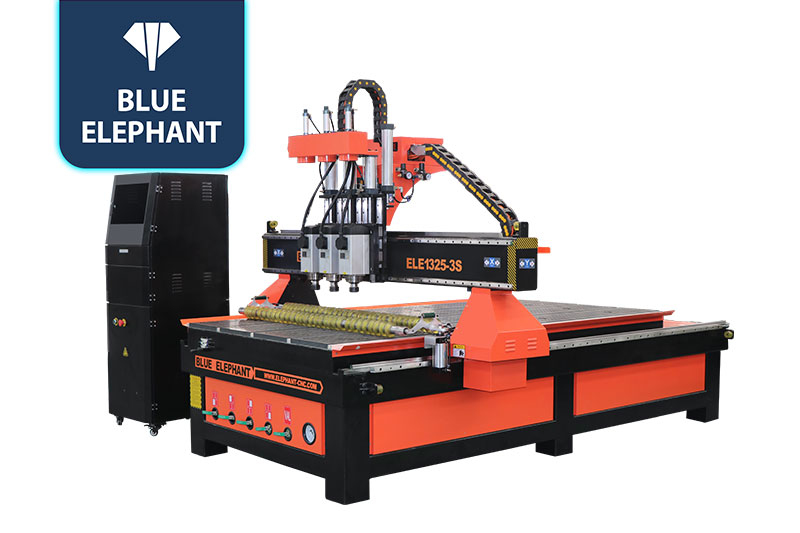

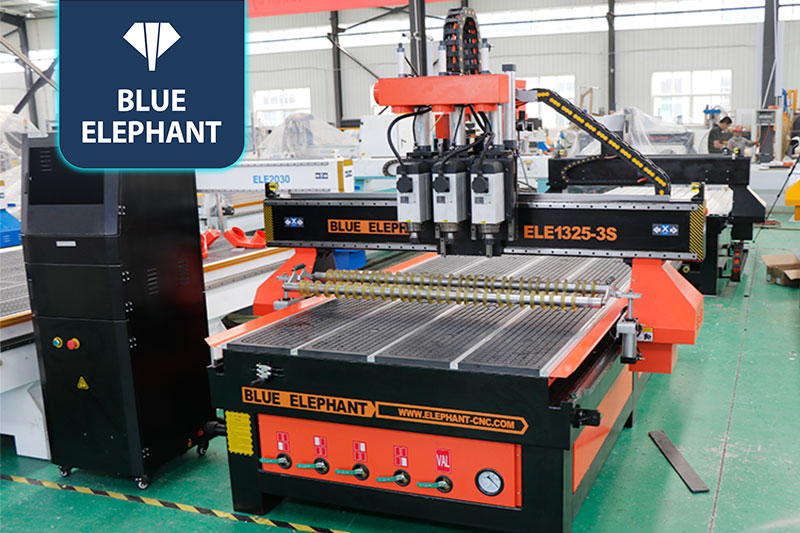

Best Selling 1325 Multi Spindle CNC Router Machine for Sale in Chile, Colombia, Thailand

☆This is one of the most cost-effective wood cnc router. Equipped with three spindles, it can work one by one to cut and engrave different workpieces.

CNC Router Machines Video

features

  • Taiwan #20 square linear guide for all axes can ensure stable running.
  • 3kw dust collector with two bags will gurantee the machine cleanliness.
  • All components used are of high quality and famous in the world.

Parameters

Description Parameter
X,Y,Z Working Area 1300*2500*200mm
Table Surface T-slot & vacuum work table
X, Y Structure Taiwan #20 linear guide for all axis
Z Structure Taiwan TBI ball screw for Z axis

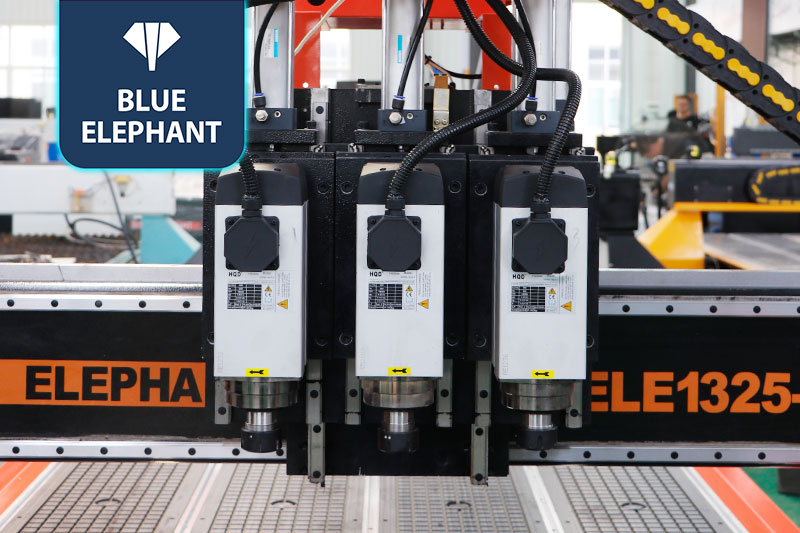

Spindle Power 3 sets 4.5kw air cooling spindle
Spindle Speed 0-18000RPM
Drive Motors FL118 stepper motor and YAKO2811 bigger and stronger driver
Working Voltage 380v, 3 phase, 50/60HZ
Command Language G Code
Operating System Ncstudio control system
Computer Interface USB
Collet ER32
Inverter 5.5kw Fuling inverter
Control Box Independent control box

Application

Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.

Production Facility

Blue Elephant CNC Factory View
Blue Elephant CNC Router Machine Factory View

Quality Control & Testing

CNC Machine Quality Control Detail Image
CNC Machine Quality Control Images
